Automotive Brake Pad Mold

The Automotive Brake Pad Mold Manufacturer!



Our goal is to be your true partner in the brake pad mold in China. Wuhan mairuiduo trading co. ,ltd. Is located in wuhan, hubei province, a collection of scientific research, design, production, sales in the integration of the company , mainly engaged in the mechanical equipment, brake pad friction material, brake pads pressing mould, plastic mould, electronic connectors mold, metal mold and accessories sales and technical service work.




Categories
Latest Products
Contact Us

Why choose us


Competitive Price
All of our products are supplied directly from factory. So the price is very competitive.



OEM/ODM
With 10 years experiences in this field, we can provide customers with professional suggestion. To promote common development.



Our Service
To ensure that we maintain our exceptional standards of customer service, we have established a perfect marketing and sales channel, as well as a professional after-sales service system. Our covered front-end sales, midway transport, and back-end service enable seamless connection of products from the factory to the customer.



Product name

Hot Pressing Die for Brake Pad

Warranty

1 year

Brand Name

Merido

Car Model

Applicable to All Cars

Material

45# steel or Customized

MOQ

2 set

Delivery time

Mass production requires more than 35 days. Delivery time depends on the specific product. Please contact us to confirm stock availability.

Keyword

Hot Pressing Die for Brake Pad



Car Disc Brake Production Mould



Products Features

1. The dimensions can be designed and manufactured according to customer requirements.


2. The disc brake pad mould is suitable for lower-cylinder presses and is easy to operate.


3. The automotive brake pad mould uses a hot-pressing, one-time forming process, which offers the advantages of high production efficiency and reduced labor requirements.


4. The mould undergoes integral heat treatment, with a hardness of HRC38–42.


5. The automotive brake pad mould uses pin positioning to improve efficiency. Slotting or chamfering can be added according to customer requirements, while also appropriately reducing raw material waste.





Composition Of Hot Press Mold For Brake Pads

Upper, middle and bottom molds: This is the main part of the mold, responsible for applying pressure and maintaining shape during the hot pressing process. The design of the upper, middle and bottom molds requires precise matching to ensure the dimensional accuracy and surface quality of the brake pads. Put the back plate on bottom mold, pour raw material in middle mold cavities, and use upper mold's matrix to press.


Heating element: In order to achieve the required hot pressing temperature, the heating tubes is usually installed in the press machine, and the heat will be heated by heat conduction. These heating elements can quickly and uniformly heat the mold for efficient hot pressing.


Guidance and positioning components: These components ensure that the upper and lower molds can be accurately aligned during the hot pressing process, avoiding deviations or misalignment that may affect the geometric accuracy of the brake pads.

Automotive Brake Pad Mould

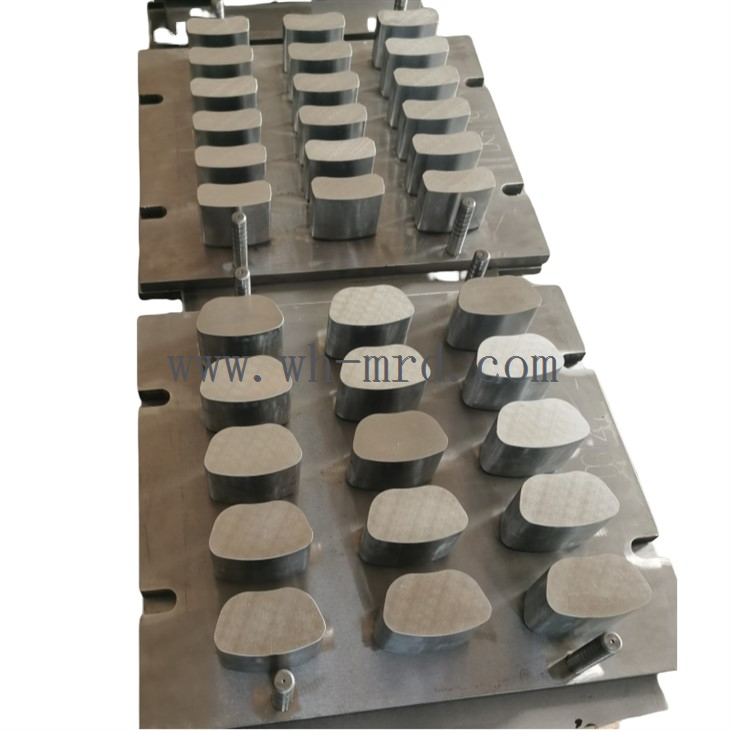

machines to make brake pads



Product Process

Preheating: The mold is first preheated to a specified temperature using heating tubes on the press machine.


Loading: The back plate is placed on the bottom mold, and the mixed brake pad materials are poured into the cavities of the middle mold.


Mold closing and hot pressing: The main cylinder moves upward to apply the set pressure. Under high temperature and pressure, the raw materials begin to shape and gradually form the final brake pad structure.


Holding cycle: The system performs venting and then applies upward pressure until the end of the holding cycle, allowing the material to cure.


Mold removal: After curing is complete, the mold is opened and the finished brake pads are removed.





FAQ



Q: How do brake pads work?

A: Brake pads are part of a vehicle's brake system, which is used to slow or stop the car by applying friction to the wheels. When the driver presses the brake pedal, it activates the brake calliper, which squeezes the brake pads against the brake rotor (a disc attached to the wheel).

Q: How often should brake pads be replaced?

A: The frequency of brake pad replacement depends on several factors, including driving habits and the type of brake pads used. In general, brake pads should be inspected at least once a year and replaced when they have worn down to about 3-4 mm thick. Some brake pads have built-in wear indicators that will make a squealing noise when they are getting thin and need to be replaced.

Q: How can i get the price?

A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: What is your lead time?

A: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q: What is your payment term?

A: T/T,Western Union,Alipay,MoneyGram,and Paypal.This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

As one of the leading automotive brake pad mold manufacturers and suppliers in China, we warmly welcome you to wholesale high-grade automotive brake pad mold for sale here from our factory. Quality products and competitive price are available.
