Truck Brake Linings

High temperature friction stability, super wear- resistant, long life , no damage the dual , low noise.

Send Inquiry

Description

Merido Brakes is a trusted manufacturer of high-performance brake linings for heavy commercial vehicles. We specialize in the design and production of non-asbestos brake linings that deliver superior braking power and safety for trucks, buses, trailers, and commercial fleets.

Truck Brake Linings parameters

Product name	Truck Brake Linings
Material	Asbesto-free; Semi-metallic
Lifetime	30,000 to 50,000 km
Brand Name	Merido
Car Model	Truck
Type	Truck Brake Linings
Color	Customized
Truck Model	All kinds of trucks
Friction	0.35-0.45(FF)
Packaging Type	PVC Plastic Rolling & Paper Carton
Temperature	0 to 350 ℃
Fit Vehicle	Truck & Bus
Fitment	Front & Rear Axle

Detail images

🔧 Truck Brake Linings Features

High friction stability at elevated temperatures
Exceptional wear resistance and long service life without damaging the drum.

Smooth, sensitive, and safe braking
Comfortable pedal feel with low wear, zero noise, and disc-friendly performance.

Eco-friendly materials
Asbestos-free with a fiber network frame structure for green, pollution-free operation.

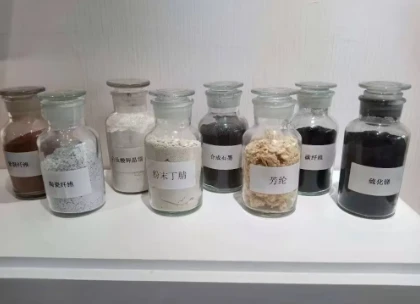

🧪 Merido Material Formulations

Available in a wide range of specialized formulas tailored for different applications:

Semi-Metallic

Low-Metallic

Ceramic

Ablation

Copper Fiber

Carbon Fiber

NAO (Non-Asbestos Organic)

Drum brake linings details
Friction Coefficient		0.38-0.42
Shear Strength		＞4N/ mm 2
Density		2.6-3.2 g/cm3
Compressibility@25°C		＜2%
Compressibility@400°C		＜5%
Maximum continuous temperature		400°C
Maximum short-duration temperature		700°C
