Filter Press
The Filter Press Manufacturer!
Our goal is to be your true partner in the brake pad mold in China. Wuhan mairuiduo trading co. ,ltd. Is located in wuhan, hubei province, a collection of scientific research, design, production, sales in the integration of the company , mainly engaged in the mechanical equipment, brake pad friction material, brake pads pressing mould, plastic mould, electronic connectors mold, metal mold and accessories sales and technical service work.
-
Chamber Filter Press🔹 Reinforced Polypropylene Filter Plates;. 🔹 Hydraulic Compression System;. 🔹 High Filtration Pressure;. 🔹 Safe and User-Friendly Operation..Add to Inquiry -
Chamber Filter Press With Hydraulic Control●A solid-liquid separation machinery.. ●Widely used in industrial production. . ●A good solid-liquid separation effect and wide suitability.Add to Inquiry -

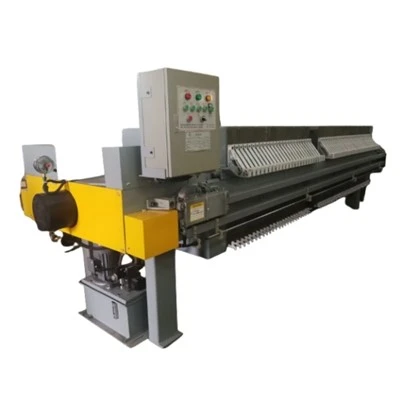

Plate And Frame Filter Press* Reduces water content in filter cake. * Removes impurities from the filtrate to improve product purity. * Recovers valuable materials from the filter cake. * Built-in Safety System.Add to Inquiry -

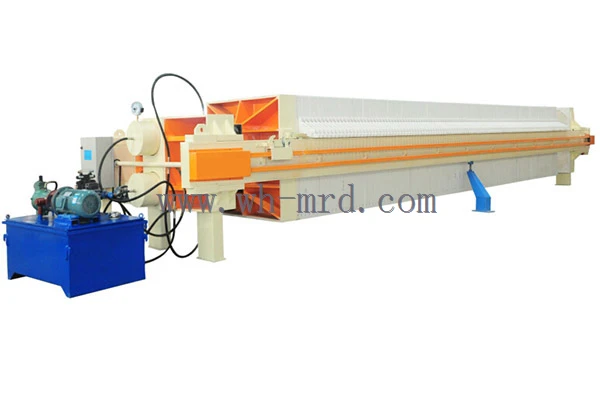

Automatic Membrane Press Filter* Compact design with stable and reliable performance. * Energy-saving filter press with low operation costs. * Suitable for materials that dewater easily and require frequent filtration.Add to Inquiry -

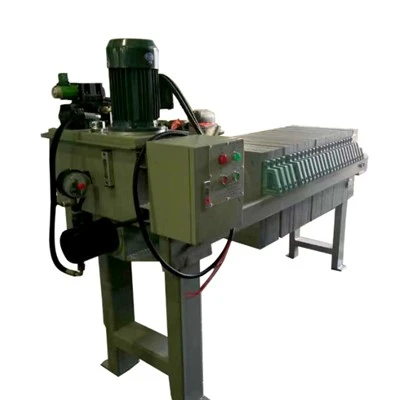

Plate And Frame Filter Press Machine1. Equipment for solid-liquid separation by pressure drive.. 2. Composed of filter plate, filter frame and other components to complete the filtration and dewatering.. 3. Applied in environmentalAdd to Inquiry -
Portable Filter Press* Durable polypropylene material delivers excellent separation.. * Every plate is pressure-tested at 21 MPa. * Performs in 0°C–70°C environments. * Carbon steel construction with anti-corrosionAdd to Inquiry
Why choose us
Competitive Price
All of our products are supplied directly from factory. So the price is very competitive.
OEM/ODM
With 10 years experiences in this field, we can provide customers with professional suggestion. To promote common development.
Our Service
To ensure that we maintain our exceptional standards of customer service, we have established a perfect marketing and sales channel, as well as a professional after-sales service system. Our covered front-end sales, midway transport, and back-end service enable seamless connection of products from the factory to the customer.
|
XY600 Type Chamber Filter Press Specification Parameters (Jack Pressure, Dry Jack To Keep Pressure) |
||||
|
Model |
Filter Size (M²) |
Chamber Capacity (L) |
Plates Oty (PCS) |
Plate Height (Mm) |
|
MRD8-UB(K) |
8 |
120 |
14 |
50 |
|
MRD10-UB(K) |
10 |
150 |
17 |
50 |
|
MRD12-UB(K) |
12 |
180 |
20 |
50 |
|
MRD14-UB(K) |
14 |
210 |
23 |
50 |
|
MRD16-UB(K) |
16 |
240 |
26 |
50 |
|
MRD18-UB(K) |
18 |
270 |
29 |
50 |
|
MRD20-UB(K) |
20 |
300 |
32 |
50 |
|
MRD22-UB(K) |
22 |
330 |
35 |
50 |
|
MRD24-UB(K) |
24 |
360 |
39 |
50 |
|
MRD26-UB(K) |
26 |
390 |
42 |
50 |
|
MRD28-UB(K) |
28 |
420 |
45 |
50 |
|
MRD30-UB(K) |
30 |
450 |
48 |
50 |
Advantages Of Filter-Press
High Efficiency - Filter presses can achieve a high degree of solid-liquid separation, ensuring a clear filtrate and dry solids. This efficiency is crucial for recovering high-value products or for effective waste stream management.
Scalability - Filter presses can be easily scaled up from laboratory to industrial operations, making them versatile across different production volumes. This ease of scalability can significantly reduce the time and costs associated with process development and scale-up.
Robustness - Filter presses are mechanically robust and can handle a wide range of operating conditions and feedstock characteristics. They are known for their longevity and ability to withstand demanding operating conditions, which makes them a suitable choice for industrial applications.
Large Volume Handling - Filter presses can handle large volumes of slurry, which aligns well with the requirements of industrial-scale operations. This can lead to increased productivity and more efficient use of equipment.
Customizability - Filter presses can be customized according to the specific requirements of a bioprocess. The selection of filter media, the configuration of the filter plates, and the operating parameters can all be tailored based on the characteristics of the feedstock and the desired outcome.
Dry Solids Production - Filter presses produce relatively dry solids, which could be advantageous when the separated solid is the desired product, or when it needs to be further processed, transported, or disposed of.
Main Components of a Filter Press
Frame
SupportsA the entire system.
Filter Plates
Provide the structure for holding the filter cloth and forming the dewatering chambers.
Manifold
Includes piping and valves for slurry distribution and filtrate removal.
Filter Cloth
Essential for optimizing performance and capturing solids.
Filter press Types and applications
Manual filter press
In the manual filter press, the movement of the machine plates is done manually by the operator in order to apply pressure on the slurry. Also, the application of cake discharge and final filtration is done manually. Due to the low price and limited speed of this type of filtration, it is usually used for applications where the volume of slurry required for purification and filtration is small.
Hydraulic filter press
Hydraulic types are the most widely used types of filter presses used in industries. The filtration operation in the hydraulic device is performed without the intervention of the operator and by the pressure of the hydraulic pump. Of course, the cake unloading step can also be done by the operator.
In fact, these devices can be semi-automatic. In this type of filter press devices, uniform pressure is applied on the plates of the device, and this causes the resulting cake to have very low humidity, and in clearer words, the purification process is performed more successfully.
Automatic filter press
In the automatic filter press, all steps from the beginning to the end of purification are done automatically without any human intervention. Therefore, the speed and accuracy of the work is very high and the quality of the purification process is impressive compared to the other two types.
A system called the vibration system is installed in some automatic types, which causes that after the completion of the filtration process and cake formation, when the plates of the filter press are separated, the vibration system starts to work to remove the remaining cakes between the plates. are also separated and in this way the accuracy of the purification process is maximized and the filter press is cleaned and prepared for the next purification cycle in a fully automatic manner.
FAQ
As one of the leading filter press manufacturers and suppliers in China, we warmly welcome you to wholesale high-grade filter press for sale here from our factory. Quality products and competitive price are available.
