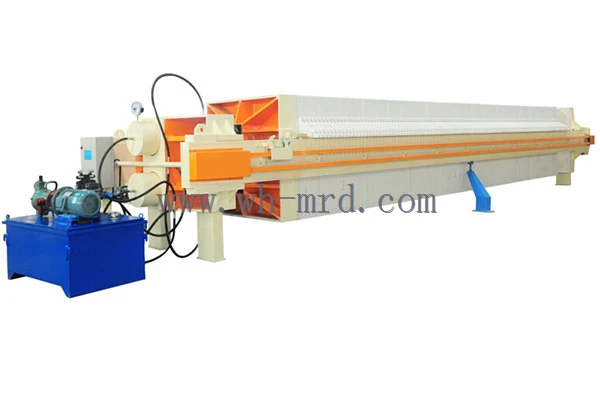

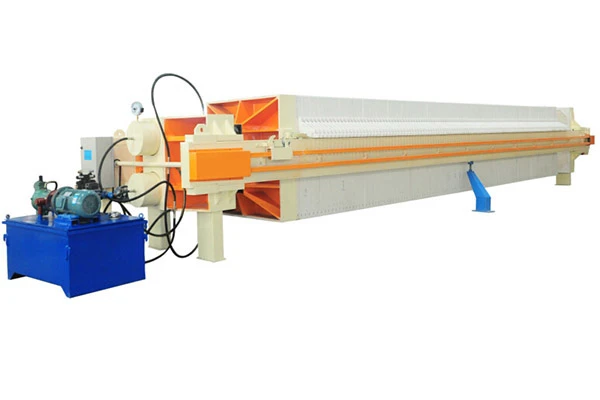

Automatic Membrane Press Filter
The Automatic Membrane Press Filter is a high-performance solid-liquid separation system designed for industrial applications requiring efficient, automated filtration. This model features an intelligent control system with a microcomputer controller, PLC, and touch screen interface, enabling fully automated operations such as filter plate compression, drip tray control, plate loosening, automatic plate shifting, and membrane squeezing with high-pressure water washing.
Products Parameters
|
Model |
Filter Area (㎡) |
Filter Chamber Volume(L) |
Overall Size (mm) |
Number of filter plates |
Filter plate size (mm) |
Motor power (kw) |
Weight (KG) |
| XY200/1500-UB(K) | 200 | 3500 | 6570X2200X1820 | 49 | 1500X1500 | 7.5 |
1000 |
| XY250/1500-UB(K) | 250 | 4375 | 7395X2200X1820 | 61 | 1500X1500 | 7.5 |
1040 |
| XY300/1500-UB(K) | 300 | 5250 | 8300X2200X1820 | 74 | 1500X1500 | 7.5 |
1080 |
| XY350/1500-UB(K) | 350 | 6125 | 9120X2200X1820 | 86 | 1500X1500 | 7.5 |
1120 |
| XY400/1500-UB(K) | 400 | 7000 | 10050X2200X1820 | 99 | 1500X1500 | 7.5 |
1160 |
| XY450/1500-UB(K) | 450 | 7875 | 10860X2200X1820 | 111 | 1500X1500 | 7.5 |
1200 |
| XY500/1500-UB(K) | 500 | 8750 | 11730X2200X1820 | 123 | 1500X1500 | 7.5 |
1240 |
The above dimensions are for reference only! all of the models can be customized.
Key Features & Advantages
* Compact design with stable and reliable performance
* Energy-saving filter press with low operation costs
* 3–6 times faster plate shifting and cake discharge
* Suitable for materials that dewater easily and require frequent filtration
* Perfect for industries such as chemical processing, mining, pharmaceuticals, food & beverage, and wastewater treatment

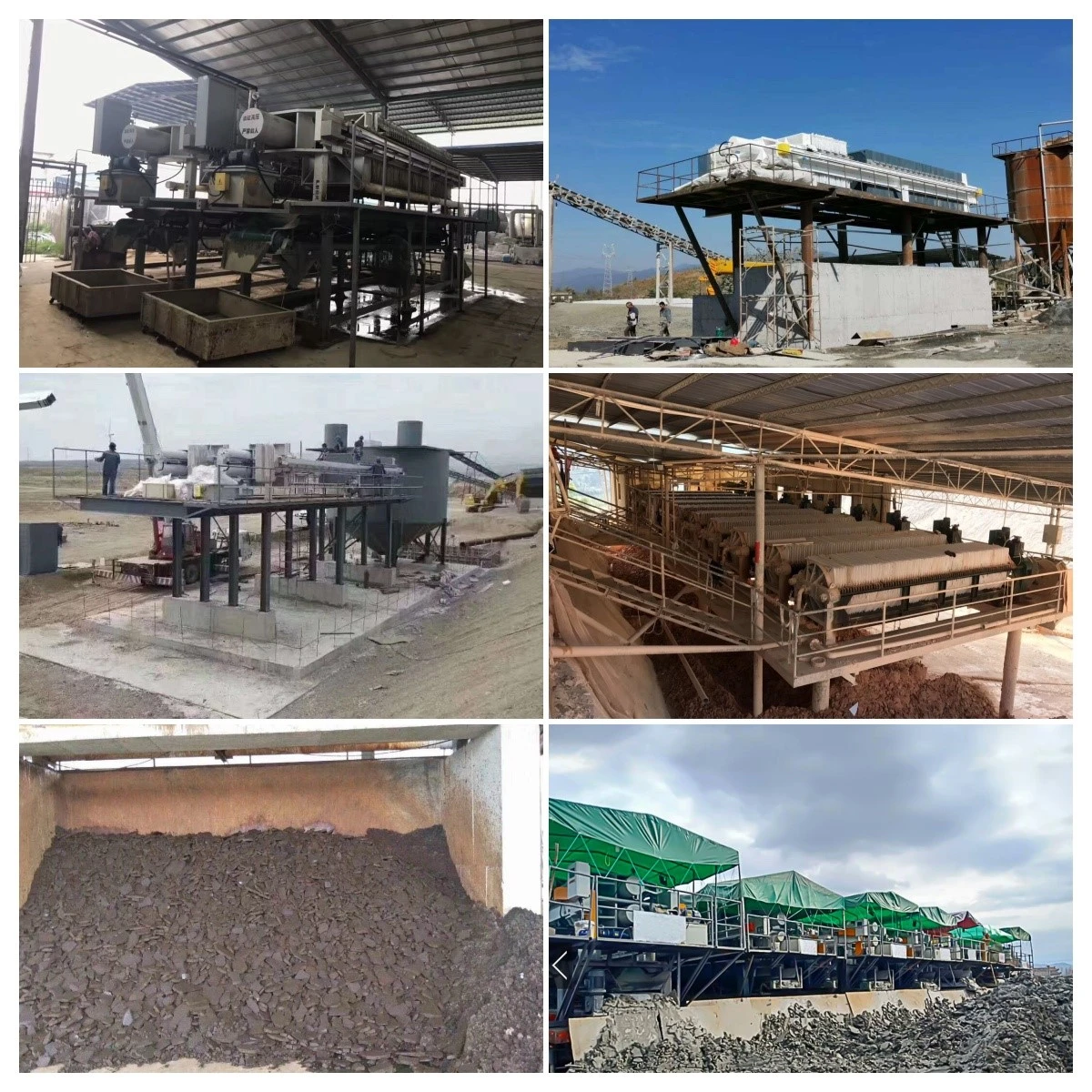

Customer Cases
High-Efficiency Energy-Saving Filter Press
The Automatic Membrane Press Filter is engineered for high-frequency, high-volume dewatering tasks, ensuring consistent filtration quality, minimal maintenance, and long-term durability.
Compared to standard models, this upgraded version includes a reinforced mechanical arm, extended hydraulic cylinder, and segmented plate shifting system that allows multiple filter plates to open at once. These improvements significantly enhance cake discharge efficiency, making it ideal for high-frequency operations in demanding environments.
One-Stop Industrial Filtration Solution Provider in China
Send your inquiry about Automatic Membrane Press Filters to us and revolutionize your industrial wastewater management. With our advanced filtration equipment, you can achieve efficient sludge dewatering, reduced operational costs, and compliance with environmental standards-all while unlocking new productivity heights for your business.
