Plate and Frame Filter Press
High-Efficiency Solid-Liquid Separation Solution
The Plate and Frame Filter Press is a proven and efficient solution for solid-liquid separation in industrial processes. Designed to reduce moisture content and improve product purity, this system is ideal for applications where high-quality filtration and reliable performance are essential.
Products Parameters
|
Model |
Filter Area (㎡) |
Filter Chamber Volume(L) |
Overall Size (mm) |
Number of filter plates |
Filter plate thickness (mm) |
Filter plate size (mm) |
Motor power (kw) |
Weight (KG) |
| XY60/1000-UB(K) | 60 | 900 | 4160X1280X1480 | 38 | 60 | 1000X1000 | 2.2 | 3920 |
| XY70/1000-UB(K) | 70 | 1050 | 4520X1280X1480 | 44 | 60 | 1000X1000 | 2.2 | 4520 |
| XY80/1000-UB(K) | 80 | 1200 | 4880X1280X1480 | 50 | 60 | 1000X1000 | 2.2 | 5120 |
| XY90/1000-UB(K) | 90 | 1350 | 5240X1280X1480 | 56 | 60 | 1000X1000 | 2.2 | 5720 |
| XY100/1000-UB(K) | 100 | 1500 | 5600X1280X1480 | 62 | 60 | 1000X1000 | 2.2 | 6320 |
| XY110/1000-UB(K) | 120 | 1800 | 6320X1280X1480 | 74 | 60 | 1000X1000 | 2.2 | 6920 |
The above dimensions are for reference only! all of the models can be customized.
Key Features & Advantages
✅ Effective Moisture Reduction
-- Reduces water content in filter cake, increasing solid content by 8% to 35%, boosting drying efficiency and reducing downstream processing costs.
✅ Thorough Filter Cake Washing
-- Removes impurities from the filtrate to improve product purity
-- Recovers valuable materials from the filter cake
-- Increases the recovery rate of reusable filtrate
✅ Dual Squeezing Options
-- Uses membrane filter plates with air or water squeezing, offering customizable pressure control up to 0.7 MPa for optimized filtration results.
✅ Fully Automated Operation
-- Features hydraulic plate compression, automatic pressure maintenance, and PLC programmable control, enabling one-touch operation via a central control panel.
✅ Built-in Safety System
-- Equipped with safety sensors and protection devices to ensure reliable and secure operation.

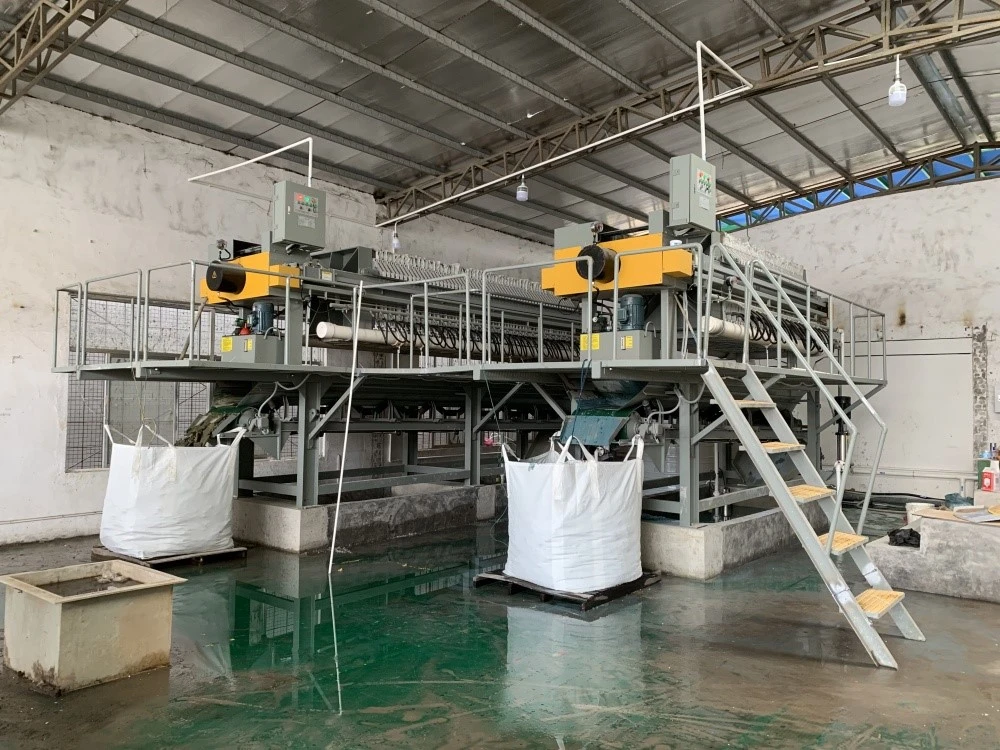

Customer Cases
The plate and frame filter press is widely used in Southeast Asia and globally, especially in sectors that demand efficient filtration, high-purity solids, and environmental sustainability.
🏭 Mining & Coal Washing
🧪 Chemicals & Inorganic Salts
🍶 Alcohol & Beverage Production
⚙️ Metallurgy & Pharmaceuticals
🥬 Food Processing & Agriculture
🌱 Wastewater Treatment & Environmental Protection
🧵 Textile, Energy, and Light Industry
One-Stop Industrial Filtration Solution Provider in China
Send your inquiry about Automatic Membrane Press Filters to us and revolutionize your industrial wastewater management. With our advanced filtration equipment, you can achieve efficient sludge dewatering, reduced operational costs, and compliance with environmental standards-all while unlocking new productivity heights for your business.
