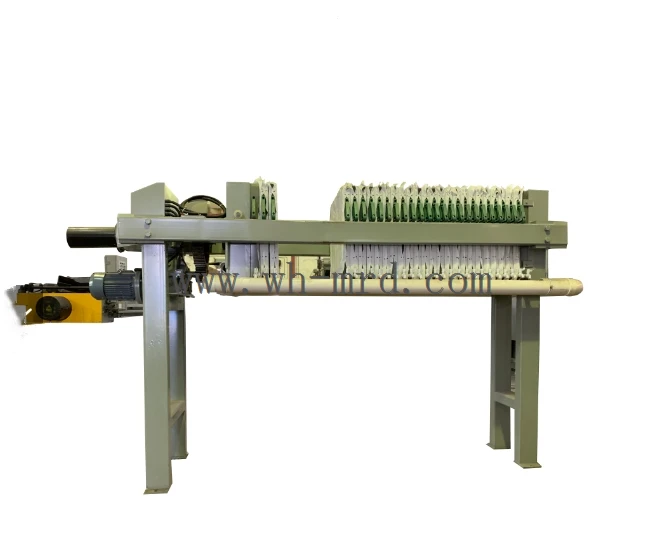

Portable filter press
Portable filter Press is essential solid-liquid separation devices, widely utilized across diverse industries including chemicals, pharmaceuticals, metallurgy, dyes, food processing, brewing, ceramics, and environmental protection. Take the plate and frame filter press as an example for a detailed look
Products Parameters
|
Model |
Filter Area (㎡) |
Filter Chamber Volume(L) |
Plate Size (mm) |
Plate Thickness (mm) |
Plate NO.(PCS) |
Weight (KG) |
|
XJ8/630-UB(K) |
8 |
120 |
630X630 |
50 |
14 |
1000 |
|
XJ10/630-UB(K) |
10 |
150 |
630X630 |
50 |
17 |
1040 |
|
XJ12/630-UB(K) |
12 |
180 |
630X630 |
50 |
20 |
1080 |
|
XJ14/630-UB(K) |
14 |
210 |
630X630 |
50 |
23 |
1120 |
|
XJ16/630-UB(K) |
16 |
240 |
630X630 |
50 |
26 |
1160 |
|
XJ18/630-UB(K) |
18 |
270 |
630X630 |
50 |
29 |
1200 |
|
XJ20/630-UB(K) |
20 |
300 |
630X630 |
50 |
32 |
1240 |
|
XJ22/630-UB(K) |
22 |
330 |
630X630 |
50 |
35 |
1280 |
|
XJ24/630-UB(K) |
24 |
360 |
630X630 |
50 |
39 |
1320 |
|
XJ26/630-UB(K) |
26 |
390 |
630X630 |
50 |
42 |
1360 |
|
XJ28/630-UB(K) |
28 |
420 |
630X630 |
50 |
45 |
1400 |
|
XJ30/630-UB(K) |
30 |
450 |
630X630 |
50 |
48 |
1440 |
The above dimensions are for reference only! all of the models can be customized.

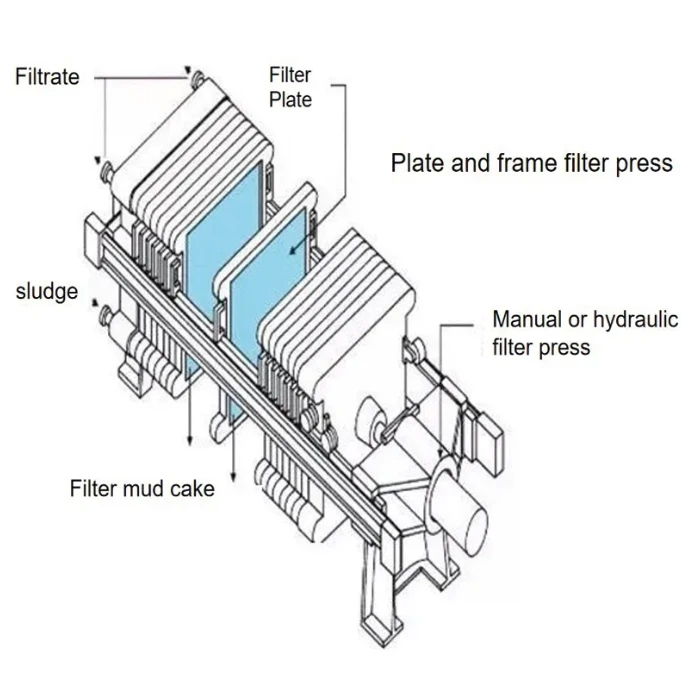

Structure and Working Principle
Structural Composition: The main body comprises alternating filter plates and frames. Each filter plate is covered with a dense filter cloth, creating individual and sealed filtration units.
Operation Mechanism: Relying on physical filtration, it forces the separation of solids and liquids through mechanical pressure. When chemical raw material slurries are pumped into the filter chambers under high pressure, the liquid permeates the filter cloth and drains out as filtrate. Meanwhile, solid particles are retained layer by layer, gradually forming a compact filter cake.
Portable filter Press's Advantages
* Effeciency squeezing can perfectly avoid leakage
* Durable polypropylene material delivers excellent separation and low maintenance.
* Every plate is pressure-tested at 21 MPa to ensure safety and durability.
* Choose filter cloths from 1–50μm for tailored separation results.
* Performs in 0°C–70°C environments. Ideal for oily, viscous, or crystallizing slurries.
* Optional membrane squeeze function available for extra drying efficiency.
* Carbon steel construction with anti-corrosion treatment ensures long service life.
* Optional PLC control system automates the full process: feeding, filtering, and discharge.

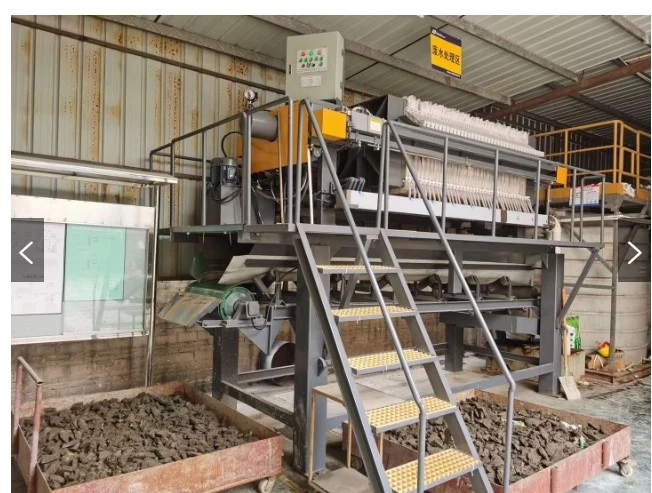

Customer Cases
Applications
1. Chemical
Paint, pigment, silica, caustic soda, chlor-alkali, salt mud, potassium chlorate, purifying agent (aluminum sulfate, polymerized alumina, salt-type aluminum chloride), ferrous sulfate, soap mud. Manganese sulfate, graphite, phosphor, Lide powder.
2.Metallurgy, coal
Gold light, silver ore, copper ore, zinc ore, iron ore, rare earth and other powder beneficiation.
3.Petroleum
Diesel oil, sesame oil, shortening dewaxing etc..
4.Food
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweeteners, maltose, starch, cornstarch, rice flour, agar, seaweed, carrageenan, soybean milk, oral liquid, beer yeast, soy sauce, butter, white wine, fruit juice, beverages, vegetable protein, flavor.
5.Pharmaceutical
Hygromycin, safranin, chlortetracycline, madecassicin, wellbutrin, inositol, plant calcium, traditional Chinese medicine, saccharase, growth hormone, organophosphorus, pig's blood.
6.Pottery clay
Expanded clay, electronic ceramic clay, kaolin, activated clay, porcelain clay, converter kiln mud, granite stone powder.
7.Sewage
Printing and dyeing sewage, leather sewage, smelting sewage, brewing sewage, pharmaceutical sewage, electroplating sewage, fecal sewage, electrolysis sewage, chemical sewage, papermaking sewage, environmental sewage.
