50 Ton Hydraulic Press

It is widely used in the pressing work of disassembly, forming, straightening, stretching and sheet metal forming in the machinery industry

Send Inquiry

Description

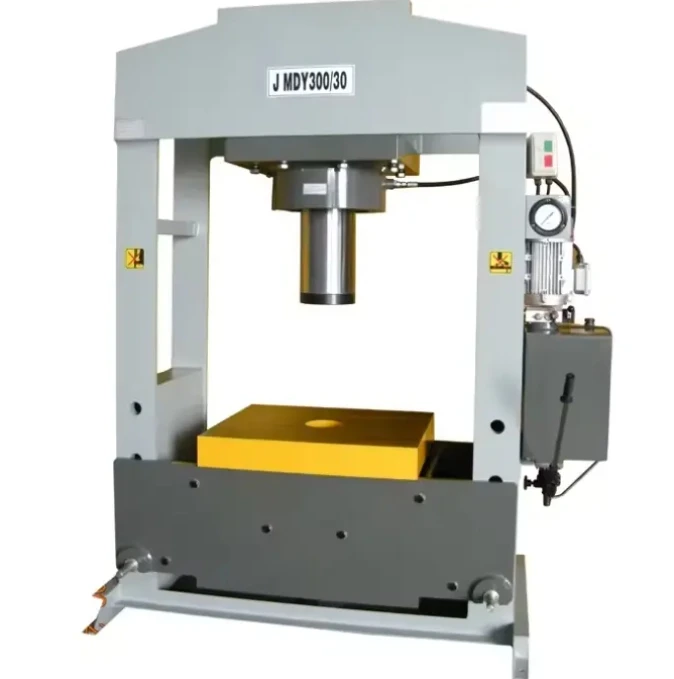

50 ton hydraulic press

Constructed from high - quality steel and vibration - aged to minimize mechanical deformation.

Vertically adjustable to fit different part sizes.

Worktable made by welding high - grade steel plates, ensuring durability and strong load - bearing capacity.

Hydraulic System:

Single - piston, double - acting hydraulic cylinder for long - lasting use.

Electric pump with manual compensation for simple operation and stable performance.

Piston rod chrome - plated (3μm layer) for better wear resistance.

The 50 Ton Hydraulic Press is a robust and dependable machine, designed for high - performance pressing in various industries. With its all - steel gantry frame and advanced hydraulic control, it offers precise, stable, and safe operation for diverse manufacturing requirements.

🛡️ Built-In Safety Protection

⚠️ Overload Protection
Automatically halts operation when pressure exceeds the set value to protect equipment and mold.

🛑 Emergency Stop Button
Instantly halts all machine operations in case of emergency to ensure operator safety.

🧱 Safety Guard Fence
Isolates the working zone to prevent accidental contact with moving components.

Technical parameters

Technical parameter	20TA	30T	40TB	60TB	80TB
Stroke (mm)	200	200	200	200	240
Gantry span (mm)	420	520	520	520	520
Table size (mm)	360*400	400*460	400*460	400*460	500*450
Motor power (kw)	2.2	3	5.5	5.5	5.5
Oil pump displacement (ml / R)	6	5	10	10	25
Descending speed (mm / s)	12	6.5	14	12	23
Return speed (mm / s)	19	9.5	19	16	34
Net weight (kg)	240	370	370	380	860
