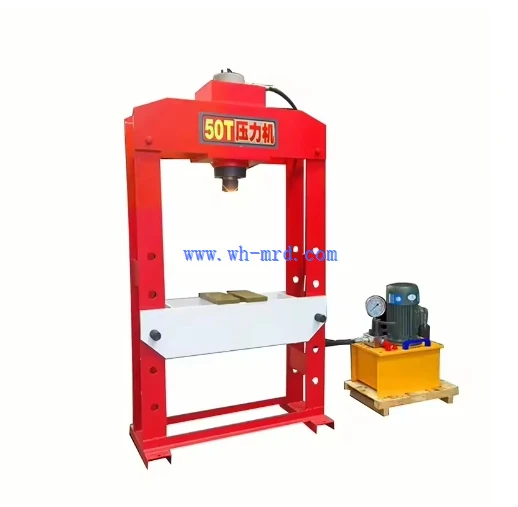

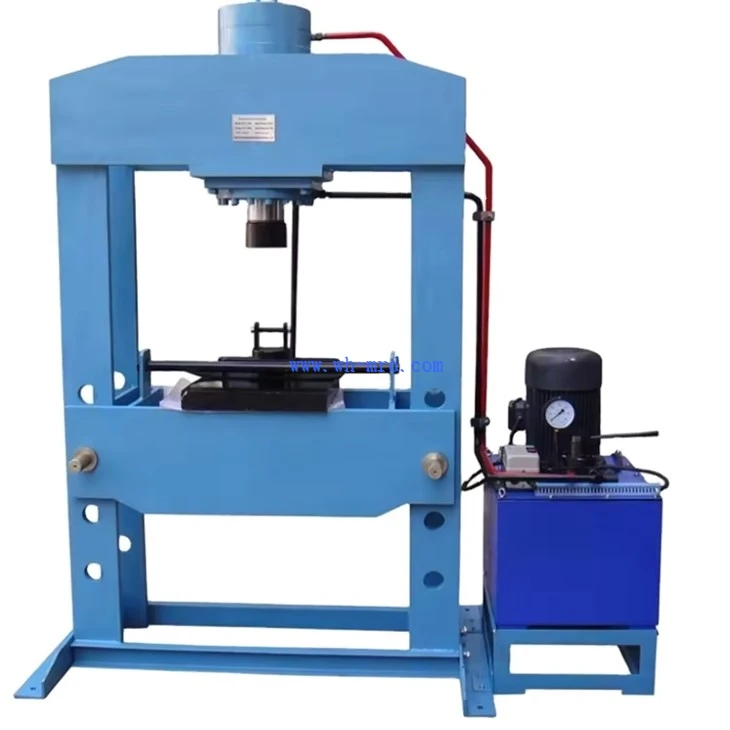

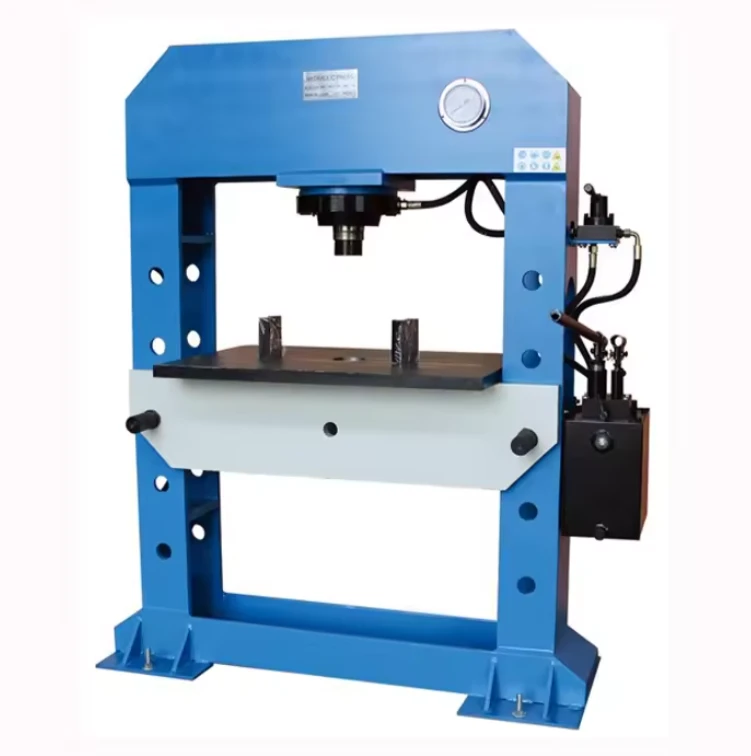

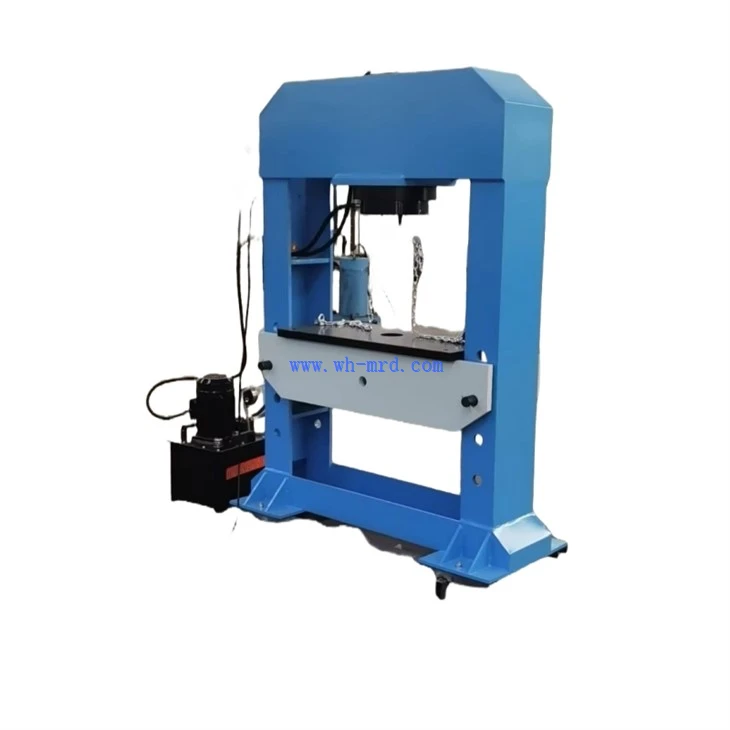

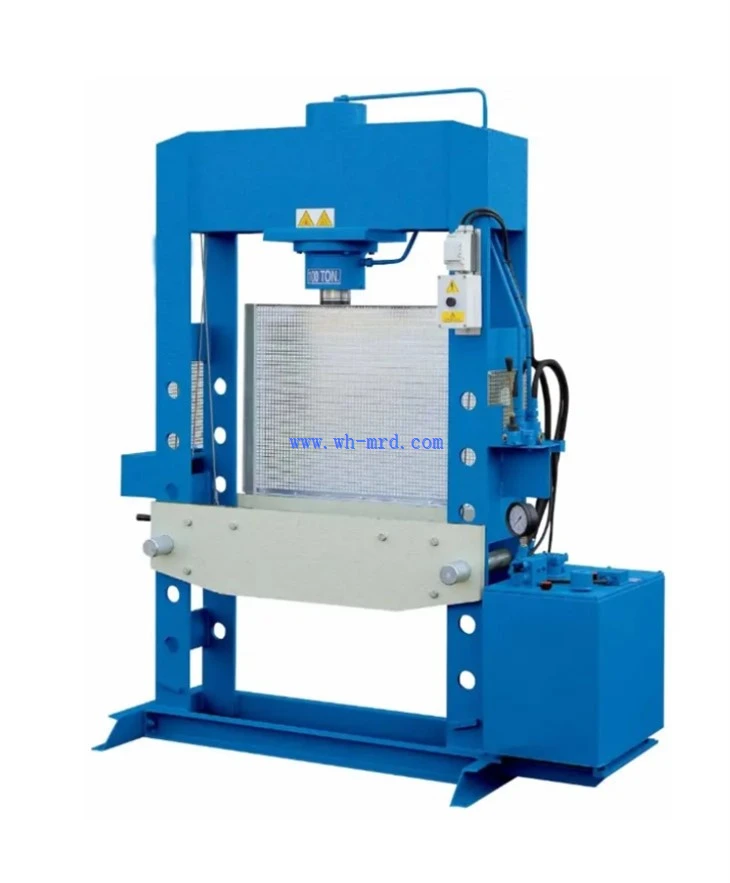

Product Introduction
The main functions of the H-frame hydraulic press machine include vertical movement of the pressing plate and horizontal movement of the crimping cylinder, enabling efficient pushing, disassembly, and assembly of various workpieces.
Specifically, the pressing plate can move up and down, making the machine suitable for motor repair, motor bearing disassembly and assembly, as well as various pushing and pressing operations.
In addition, the H-frame design ensures high flexibility and operational reliability, allowing the machine to adapt to diverse work requirements.
Product Parameter
|
MODEL
|
HP-10 | HP-20 | HP-30 | HP-50 | HP-100 |
|
CAPACITY(KN)
|
100 | 200 | 300 | 500 | 1000 |
|
PRESSURE(MPA)
|
25 | 25 | 25 | 25 | 30 |
|
TRAVEL(MM)
|
200+200 | 200+250 | 200+270 | 220+405 | 250+405 |
|
TALE SIZE(MM)
|
260*300 | 260*300 | 300*400 | 480*360 | 440*980 |
|
DIMENSION(MM)
|
1000*450*1200 | 1160*550*1500 | 1160*550*1600 | 1500*650*1950 |
1730*730*2200 730*630*960 |
|
WEIGHT(KG)
|
220 | 320 | 420 | 980 | 1350 |
Product Structure
1.Body Structure:
The body of the H-frame hydraulic press machine typically features a frame structure. The upper crossbeam, slider, and workbench are welded from high-quality steel plates. After welding, high-frequency vibration is used to eliminate welding stress. The body columns are made from high-quality 45# steel, with surfaces that are medium-frequency quenched and chrome-plated for enhanced durability.
2.Hydraulic System:
The pressing force of the hydraulic press is generated by a piston-type cylinder. The cylinder body is made of high-quality forged steel, and the piston rod is medium-frequency quenched for high surface hardness and extended service life. The main seals of the cylinder use high-quality sealing rings to ensure reliable sealing performance.
3.Workbench and Slider:
T-slots are provided on both the workbench and the slider to facilitate mold installation. The slider uses an eight-sided (or four-sided) guide system, which offers strong resistance to eccentric loads, high adjustment accuracy, and excellent rigidity.
4.Safety Device:
The H-frame hydraulic press machine is equipped with an integrated electromechanical-hydraulic safety system. This includes a lower chamber support mechanism and an interlocking circuit between the upper and lower chambers of the cylinder to enhance operational safety.
5.Control System:
The H-frame hydraulic press machine typically features an integrated PLC and touch screen (HMI) control system. It supports multiple operation modes, including adjustable, manual, and semi-automatic, providing convenient and flexible operation.
Q&A
Q1: What is this machine used for?
A: For pressing, bending, straightening, and assembling metal or plastic parts.
Q2: Can I customize the machine?
A: Yes. We support customized tonnage, table size, stroke, voltage, and control system.
Q3: What materials can it press?
A: Steel, aluminum, rubber, plastic, composite materials, etc.
Q4: Is the machine safe to operate?
A: Yes. It includes two-hand control, emergency stop, and overload protection.
Q5: What is the delivery time?
A: According to different machines and equipment, both parties negotiate
Q6: Do you offer after-sales support?
A: Yes. We offer manuals, video guides, and lifetime technical support.
