About Our Press

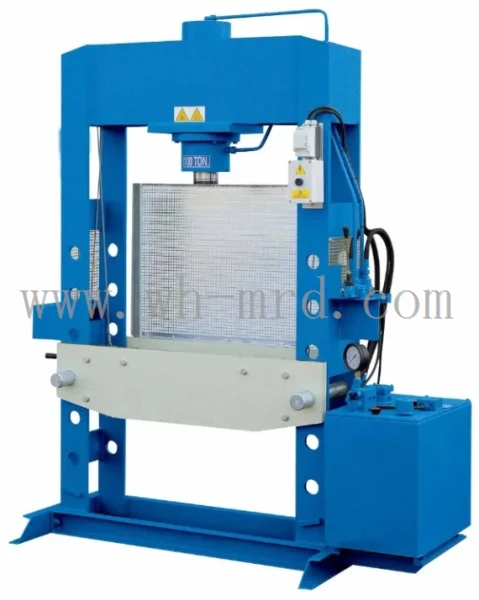

1.The H Frame Automatic Press includes replaceable V-block top tools and a support table with stops.
2.The worktable can be lifted by means of a chain driven by the main roller
3.Microswitch for adjusting the transverse movement
Mahcine Drawing&Frame
Press Parameter
| Model | Capacity | Power | Piston stroke | Weight | Dimension |
| HP-30 | 30t | 2.2kw | 220mm | 600kg | 122x56x148cm |
| HP-50 | 50t | 2.2kw | 220mm | 780kg | 146x60x175cm |
| HP-63 | 63t | 2.2kw | 220mm | 960kg | 166x70x195cm |
| HP-100 | 100t | 3.0kw | 250mm | 1140kg | 186x82x225cm |
| HP-150 | 150t | 4.0kw | 300mm | 1480kg | 186x82x225cm |
| HP-200 | 200t | 4.0kw | 300mm | 1980kg | 200x90x235mm |

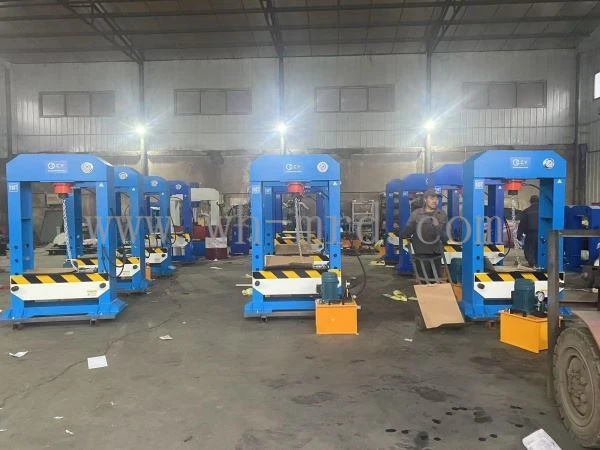

Our factory&Office
Quality&Guarantee
Each hydraulic press machine will be tested well before leaving the factory.
Negotiation with customer:
* Inquiry and consulting support within 60 minutes .
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
Guarantee:
*One year guarantee.
*Technology support within 24hours.
