Product Introduction
Our Mechanical punching machine is an efficient, energy-saving, high-precision, safe, reliable equipment.
1.It adopts advanced pneumatic transmission technology and is suitable for metal and non-metal sheet stamping & forming in various fields, such as automobile manufacturing, electronic appliances, hardware tools, and building decoration.
2.It aims to improve production efficiency, reducing production costs, enhancing product quality, and strengthening market competitiveness.
3.It is an indispensable high-quality choice for manufacturers.
Product Parameter
| Item | Unit | J23-10 | J23-16 | J23-25 | J23-40 | J23-63 |
|---|---|---|---|---|---|---|
| Norminal capacity | KN | 100 | 160 | 250 | 400 | 630 |
| Slide stroke | Times/min | 50 | 60 | 60 | 100 | 110 |
| Slide strokes | mm | 150 | 140 | 100 | 50 | 50 |
| Max closing height | mm | 200 | 245 | 300 | 350 | 380 |
| Die height adjustment | mm | 30 | 50 | 70 | 75 | 80 |
| Distance between slider center and machine | mm | 120 | 160 | 185 | 220 | 250 |
| Workbench size | Front and back | mm | 230 | 280 | 320 | 400 |
| Left and right | mm | 370 | 455 | 540 | 650 | |
| Workbench diameter | mm | 100 | 130 | 130 | 140 | 170 |
| Pole distance | mm | 215 | 215 | 200 | 245 | 310 |
| Shank Hole Size | Diameter | mm | 30 | 35 | 38 | 40 |
| Depth | mm | 50 | 50 | 60 | 60 | |
| Pad thickness | mm | 40 | 50 | 55 | 70 | 85 |
| Body tilting angle | ° | 30 | 20 | 20 | 20 | 20 |
| Motor power | KW | 1.5 | 2.2 | 2.2 | 3 | 5.5 |
| Dimension | Front and back | mm | 800 | 950 | 1100 | 1500 |
| Left and right | mm | 600 | 620 | 800 | 1100 | |
| Height | mm | 1550 | 1700 | 2000 | 2250 | |
| Weight | KG | 450 | 750 | 1500 | 2500 | 4000 |
Machine Feature

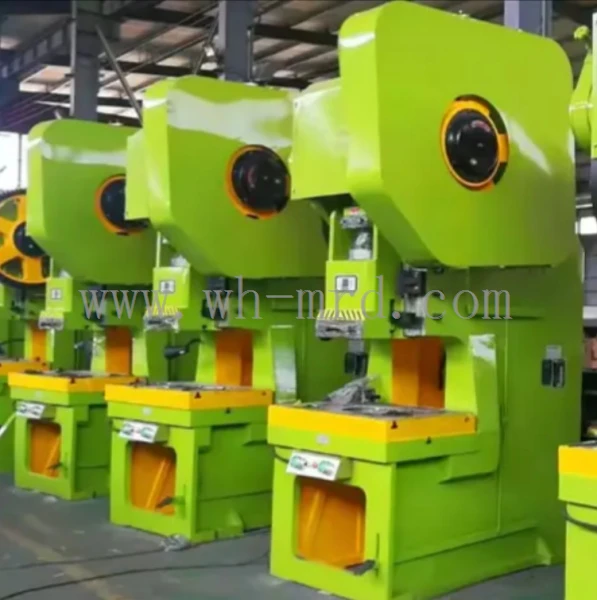

1. C- frame punching press provides maximum rigidity and minimum deflection for accurate parts and long tool life.
2. Wide body frame eliminating vibration for improved IDE life and machine.
3. High accuracy, high efficiency, simple and convenient operation, with good performance, favorable price and best service.
Shipping & Delivery
FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance;
Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.
For mass production, the lead time is 20-30 days after receiving the deposit payment.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship, and 1 year's warranty.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging.
