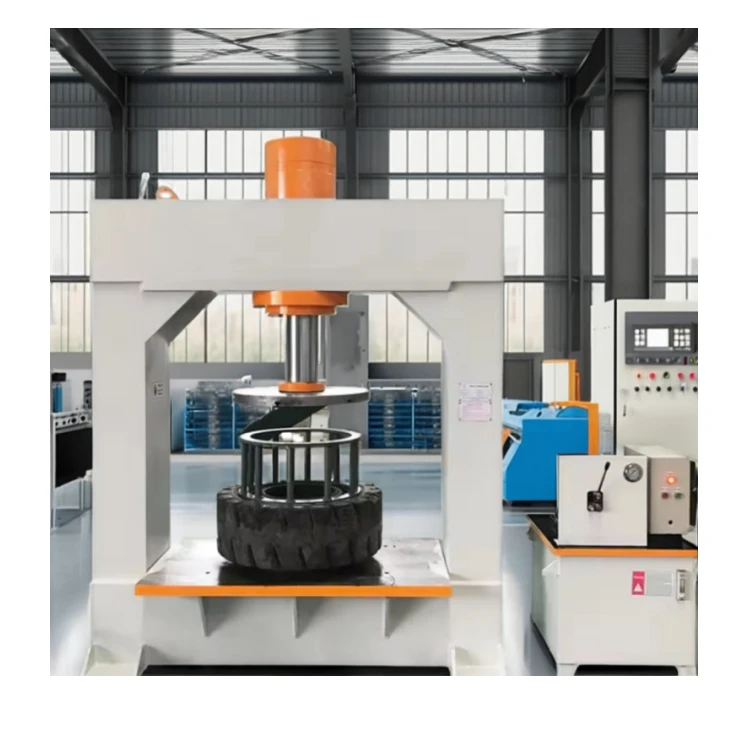

Solid Tyre Press Machine
The Solid Tyre Press Machine is a specialized hydraulic device used for the efficient and precise installation and removal of solid tires.
Designed for various types of vehicles-from small motorcycles to large industrial machines, applies controlled pressure to ensure smooth tire mounting or dismounting from rims.
This machine is a vital tool in tire manufacturing, vehicle maintenance, and tire service centers, significantly reducing labor intensity and improving operational safety and efficiency.
Products Advantages
Increased Work Efficiency
Replaces time-consuming manual labor with quick, automated pressing-greatly reducing installation/removal time.
High Installation Accuracy
Ensures the tire bead fits perfectly on the rim, minimizing risks such as air leakage, imbalance, or uneven wear caused by improper installation.
Enhanced Operational Safety

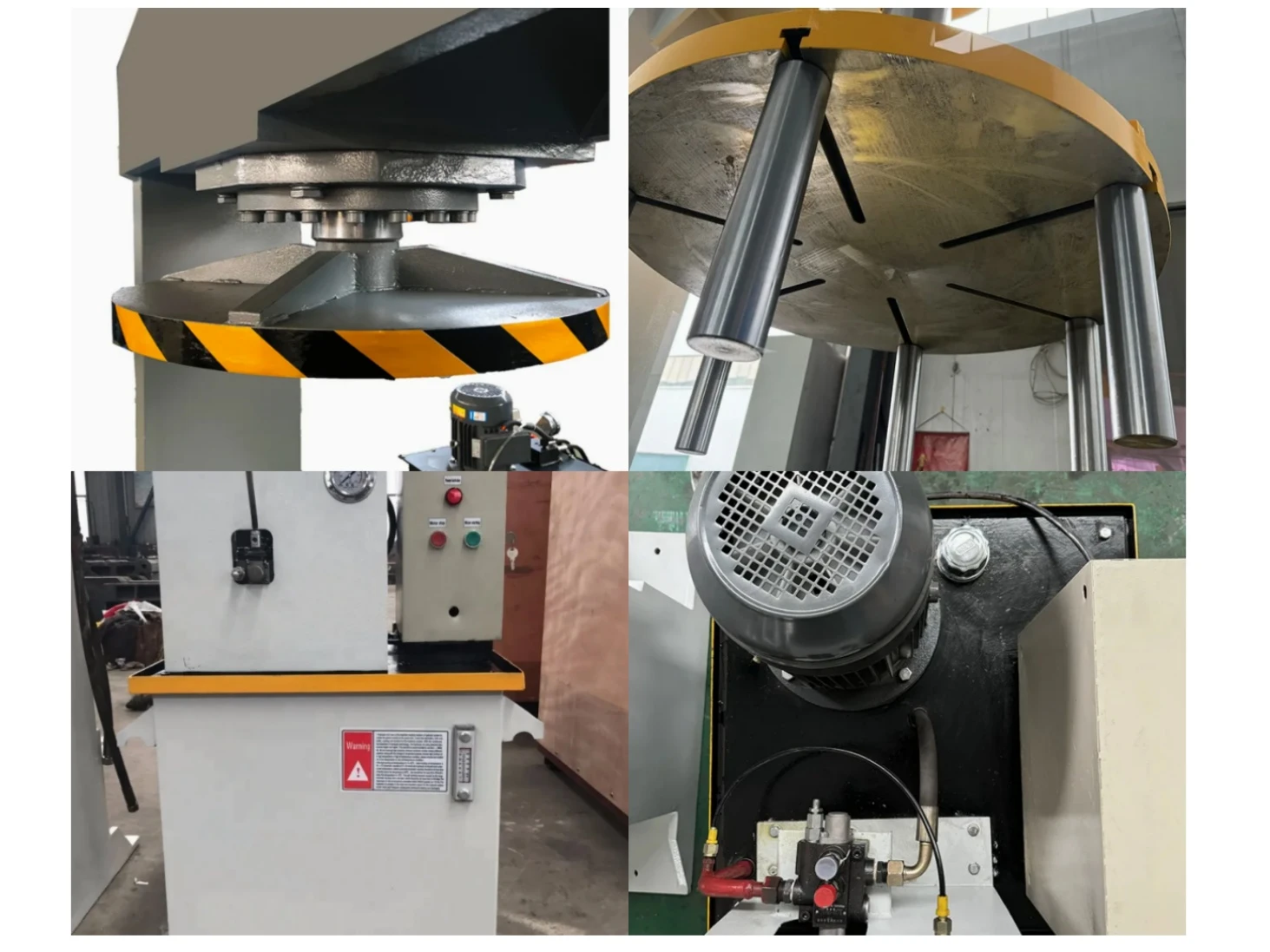

Equipped with safety features such as emergency stop buttons and protective guardrails, it reduces the risk of injury during high-pressure operations.
Broad Compatibility
Adjustable clamps and pressure settings allow for compatibility with a wide range of tire sizes and types, including car tires, motorcycle tires, and heavy-duty engineering vehicle tires.
|
Size of Tire |
Rim Size |
Pattern No. |
O.D. |
S.W. |
N.W. |
MAX MAX LOAD (kg) |
|||
|
±5mm |
±5mm |
±1.5%kg |
10km/h |
16km/h |
|||||
|
Driving |
Steering |
Driving |
Steering |
||||||
|
4.00-8 |
3.00/3.50/3.75 |
R701/R706 |
423/410 |
120/115 |
14.5/ |
910 |
700 |
830 |
640 |
|
5.00-8 |
3.00/3.50/3.75 |
R701/R705/ |
466 |
127 |
18.40 |
1255 |
965 |
1145 |
880 |
|
5.50-15 |
4.50E |
R701 |
666 |
144 |
37.00 |
2525 |
1870 |
2415 |
1790 |
|
6.00-9 |
4.00E |
R701/R705 |
533 |
140 |
26.80 |
1975 |
1520 |
1805 |
1390 |
|
6.00-15 |
4.50E |
R701 |
694 |
148 |
41.20 |
2830 |
2095 |
2705 |
2000 |
|
6.50-10 |
5.00F |
R701/R705 |
582 |
157 |
36.00 |
2715 |
2090 |
2485 |
1910 |
|
7.00-9 |
5.00S |
R701 |
550 |
164 |
34.20 |
2670 |
2055 |
2440 |
1875 |
|
7.00-12 |
5.00S |
R701/R705 |
663 |
163 |
47.6 |
3105 |
2390 |
2835 |
2180 |
|
7.00-12WIDTH |
5.00S |
R705 |
663 |
188 |
52.3 |
3105 |
2390 |
2835 |
2180 |
|
7.00-15 |
5.50S/6.00 |
R701 |
738 |
178 |
60.00 |
3700 |
2845 |
3375 |
2595 |
|
7.50-16 |
6.00 |
R701 |
805 |
180 |
74.00 |
4400 |
3385 |
4025 |
3095 |
|
8.25-15 |
6.50 |
R701/R705 |
829 |
202 |
90.00 |
5085 |
3910 |
4640 |
3570 |
|
15x4 1/2-8 |
3.00D |
R701/R705 |
383 |
107 |
9.40 |
1005 |
775 |
915 |
705 |
|
16*5-9 |
3.50/4.00 |
R706 |
404 |
126 |
12.5 |
710 |
|||
|
16x6-8 |
4.33R |
R701/R705 |
416 |
156 |
16.90 |
1545 |
1190 |
1410 |
1085 |
|
18x7-8/WIDTH |
4.33R |
R701/R705 |
452 |
154/170 |
20.8 /21.6 |
2430 |
1870 |
2215 |
1705 |
|
18x7-9 |
4.33R |
R701/R705 |
452 |
155 |
19.90 |
2230 |
1780 |
2150 |
1615 |
|
21x8-9 |
6.00E |
R701/R705 |
523 |
180 |
34.10 |
2890 |
2225 |
2645 |
2035 |
|
23x9-10 |
6.50F |
R701/R705 |
595 |
212 |
51.00 |
3730 |
2870 |
3405 |
2620 |
|
23x10-12 |
8.00G |
R701/R705 |
592 |
230 |
51.20 |
4450 |
3425 |
4060 |
3125 |
|
27x10-12 |
8.00G |
R701/R705 |
680 |
236 |
74.70 |
4595 |
3535 |
4200 |
3230 |
|
28x12.5-15 |
9.75 |
R705 |
706 |
300 |
86.00 |
6200 |
4770 |
5660 |
4355 |
|
28x9-15(815-15) |
7.00 |
R701/R705 |
700 |
230 |
61.00 |
4060 |
3125 |
3710 |
2855 |
|
140/55-9 |
4.00E |
R705 |
380 |
130 |
10.50 |
1380 |
1060 |
1260 |
970 |
|
200/50-10 |
6.50 |
R701/R705 |
458 |
198 |
25.20 |
2910 |
2240 |
2665 |
2050 |
|
250-15 |
7.00/7.50 |
R701/R705 |
726 |
235 |
73.60 |
5595 |
4305 |
5110 |
3930 |
|
300-15 |
8.00 |
R701/R705 |
827 |
256 |
112.50 |
6895 |
5305 |
6300 |
4845 |
|
355/65-15 |
9.75 |
R701 |
825 |
302 |
132.00 |
7800 |
5800 |
7080 |
5310 |
|
10.00-20 |
6.00/7.00/7.50/8.00 |
R701 |
1041 |
248 |
170 |
7075 |
5895 |
6460 |
5385 |
|
10.00-20 SM |
7.50/8.00 |
R700 |
1041 |
248 |
176 |
7075 |
5895 |
6460 |
5385 |
Working Principle
Once the machine is activated and pressure parameters are set:
1. The hydraulic pump begins to operate, pushing hydraulic oil into the cylinder.
2. This drives the piston forward, generating pressing force.
3. The pressure head then acts directly on the tire:
--For installation: The head presses the tire bead into place on the rim for a tight and even fit.
--For removal: It applies force to the rim-bead interface to separate the tire from the rim with minimal damage.
Applications
Car Repair Shops
Efficiently handle tire replacements for sedans, SUVs, and vans with minimal effort and maximum accuracy.
Tire Retail & After-Sales Service
Ideal for tire stores needing to mount or remove tires for inspection, replacement, or warranty services.
Motorcycle Workshops
Easily adapts to smaller, structurally different tires with adjustable tooling and pressure settings.
Engineering & Construction Vehicle Maintenance
Delivers high pressing force suitable for larger, harder-to-handle tires found on loaders, excavators, and industrial trucks.
