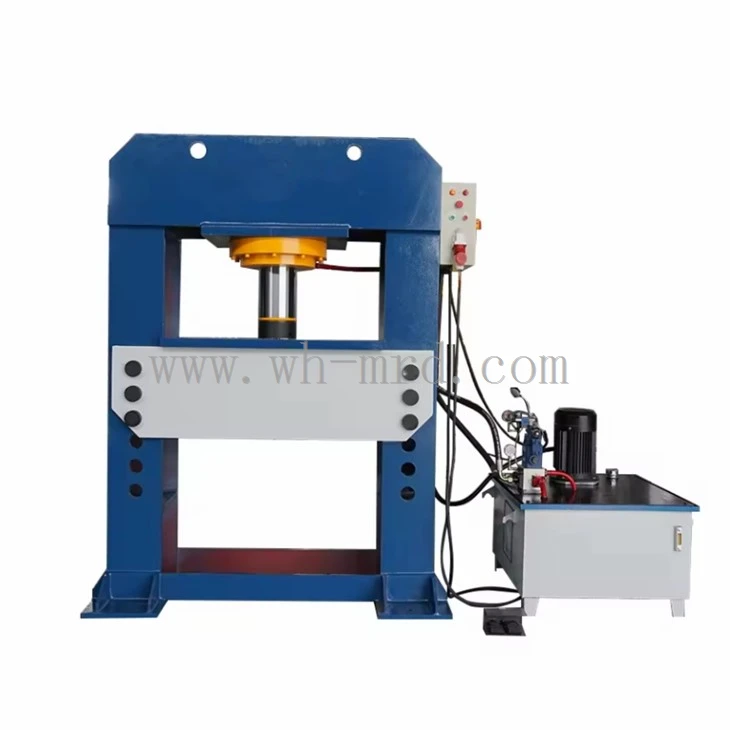

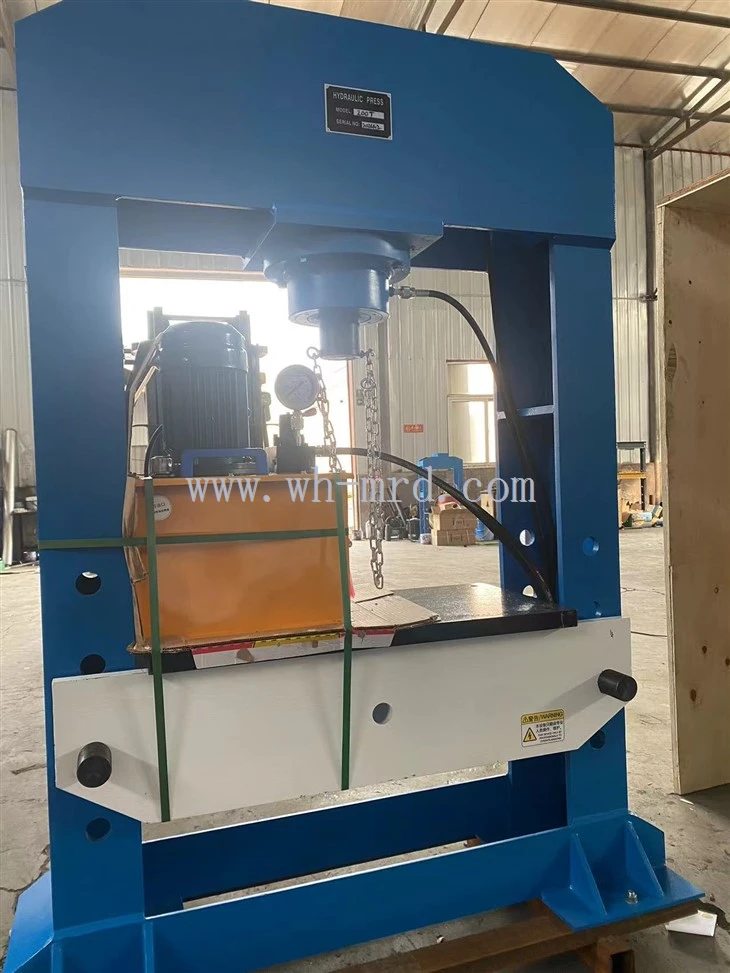

H Type Gantry Hydraulic Press
The H Type Gantry Hydraulic Press is engineered for high-precision metal stamping, forming, and complex processing tasks. With its 500MPa ultra-high-pressure capability, stable hydraulic system, and intelligent controls, this machine delivers exceptional accuracy and efficiency for demanding industrial applications.
product parameters
| Model | 20T | 30T | 40T | 50T | 80T | 100T |
| Nominal pressure(Kn) | 200 | 300 | 400 | 500 | 800 | 1000 |
| Liquid working force (MPa) | 16 | 20 | 25 | 25 | 25 | 25 |
| Piston stroke(MM) | 300 | 300 | 300 | 300 | 300 | 300 |
| Voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 |
| Motor power(KW) | 4 | 4 | 4.5 | 5.5 | 5.5 | 7.5 |
| Maximum entry width(MM) | 500 | 500 | 500 | 550 | 735 | 780 |
| Maximum entry height(MM) | 500 | 500 | 500 | 820 | 1000 | 1100 |
It primarily consists of a gantry, upper and lower sliding frames, slide base, worktable, hydraulic system, and electrical control system.
Core Advantages
🔹 Ultra-High-Pressure Performance
500MPa pressure output for deep drawing, punching, and forming of thick metal sheets.
Stable operation with low vibration and noise, ensuring consistent quality in mass production.
🔹 Intelligent Control System
PLC touch screen interface for real-time monitoring of pressure, stroke, and speed.
Programmable multi-stage pressure settings for complex processing tasks.
🔹 Durable & Low-Maintenance Design
H-beam steel frame ensures rigidity and minimizes deformation under heavy loads.
Modular components for quick replacement and extended service life.
🔹 Cost-Effective Efficiency
Energy-saving hydraulic system reduces power consumption by 20% compared to traditional models.
Simple maintenance design cuts downtime and labor costs.

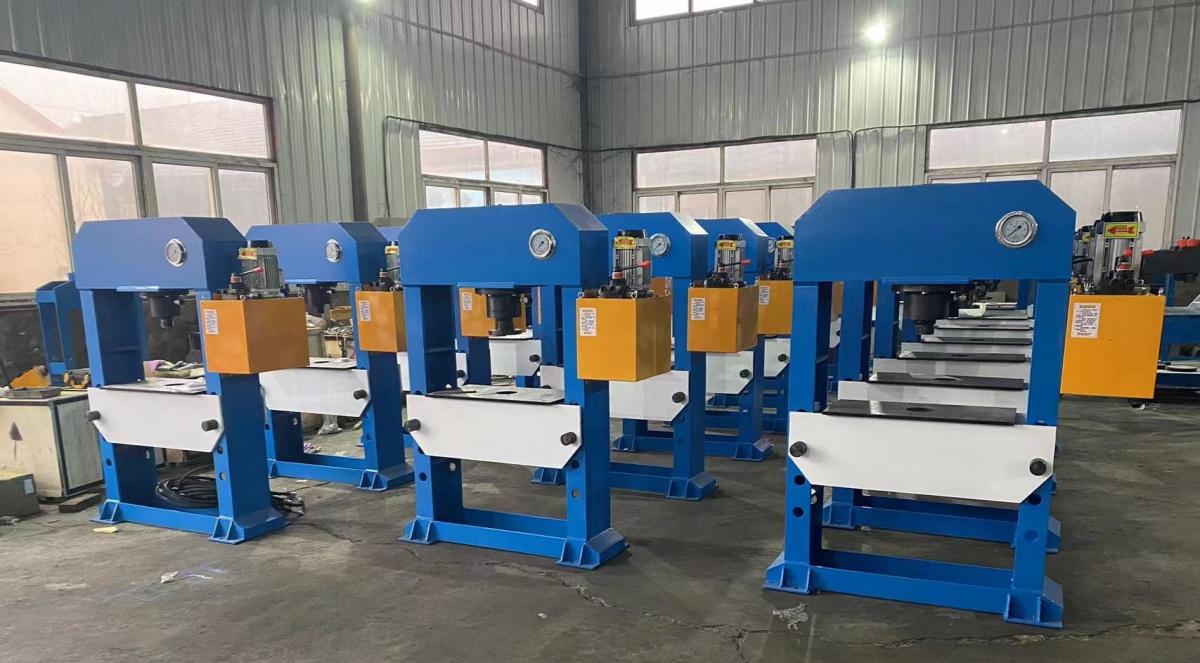

factory
Product Components
Gantry Frame : Provides structural stability and load-bearing capacity.
Upper/Lower Sliding Frames : Equipped with linear guides for smooth reciprocating motion.
Hydraulic System: Features a high-pressure pump and servo valves for precise pressure control.
Electrical Control System : Integrated PLC and HMI for automated operation.
Worktable : Customizable clamping systems for diverse workpiece sizes.
