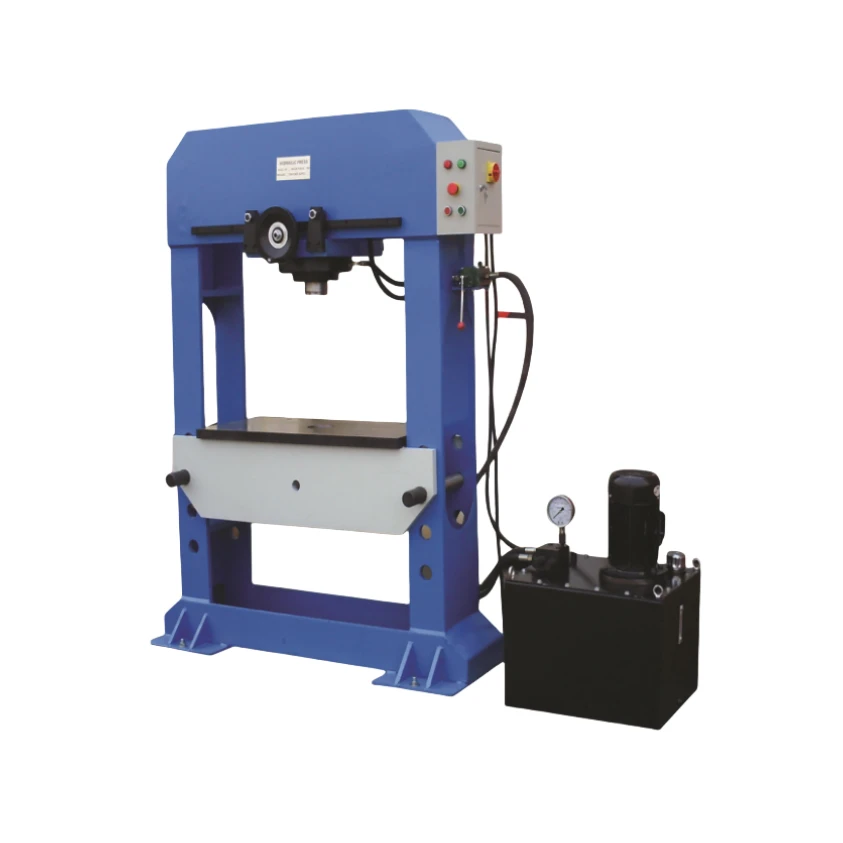

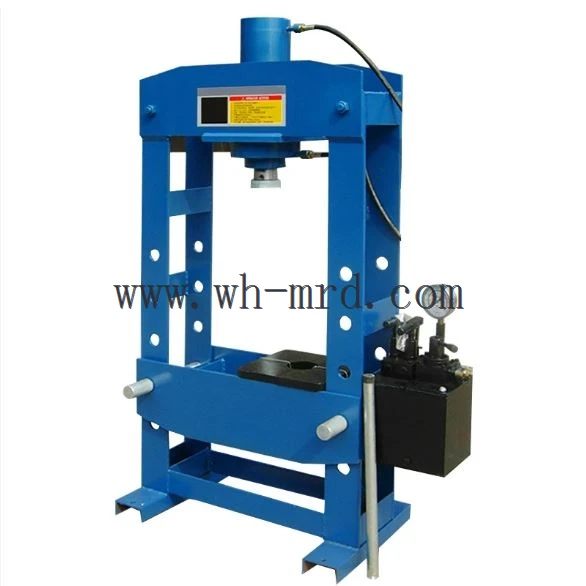

Hydraulic Workshop Press
* Door-type steel structure with parallel connection of high and low-pressure pumps
* Manual reversing control for piston rod stroke
*Hydraulic system enables lifting of the working table
*Easy to operate with stable performance
*Suitable for disassembling, installing, forming, straightening, stretching, and modeling tasks in the machinery industry

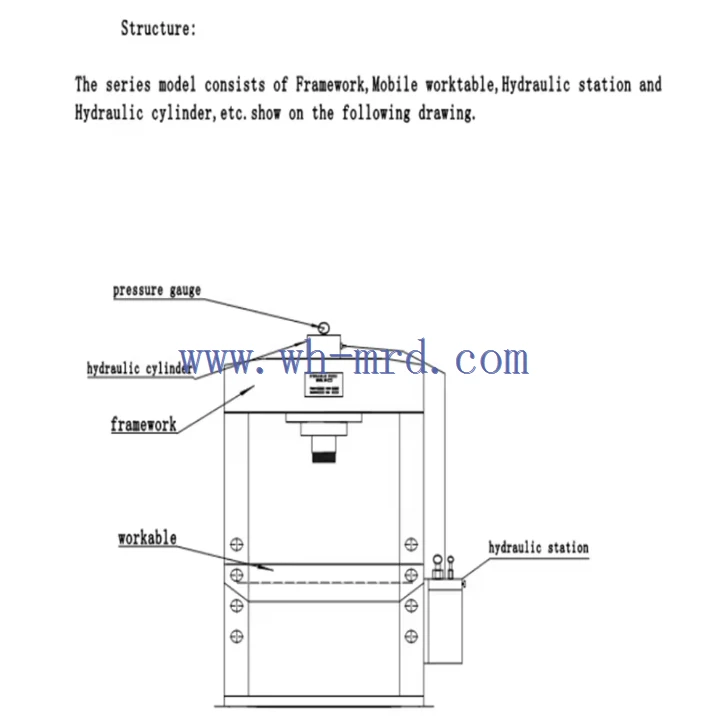

Structural characteristics
product Parameter
|
Hydraulic Workshop Press Technical Parameter |
20TA |
30T |
40TB |
60TB |
80TB |
|
Stroke (mm) |
200 |
200 |
200 |
200 |
240 |
|
Gantry span (mm) |
420 |
520 |
520 |
520 |
520 |
|
Table size (mm) |
360*400 |
400*460 |
400*460 |
400*460 |
500*450 |
|
Motor power (kW) |
2.2 |
3 |
5.5 |
5.5 |
5.5 |
|
Oil pump displacement (ml / R) |
6 |
5 |
10 |
10 |
25 |
|
Descending speed (mm / s) |
12 |
6.5 |
14 |
12 |
23 |
|
Return speed (mm / s) |
19 |
9.5 |
19 |
16 |
34 |
|
Net weight (kg) |
240 |
370 |
370 |
380 |
860 |
Daily care and maintenance
Appearance Cleaning
At the end of each workday, the surface of the Hydraulic Workshop Press should be wiped down with a clean cloth to remove dust, oil, and debris. This keeps the equipment looking neat and clean while preventing dust and debris from entering the hydraulic system or affecting heat dissipation.
Check the Connectors
Inspect all connecting bolts and nuts to ensure none are loose. If any are found to be loose, tighten them promptly to maintain the machine's stability and safety. Pay special attention to connections between the hydraulic cylinder and the frame, as well as hydraulic pipes and fittings.
Monitor Hydraulic Oil
Check the hydraulic oil level to ensure it remains within the normal operating range. If the level is too low, top it up with the same type of oil. Also, observe the oil's color and clarity -if it appears dark, cloudy, or has an unusual odor, it may be contaminated or deteriorated and should be replaced immediately.
Inspect the Pipeline
Check the hydraulic lines, including hoses, joints, and valves, for signs of leakage. If any leakage is detected, locate and repair the source promptly. This prevents waste, environmental pollution, and potential pressure loss that could affect the Hydraulic Workshop Press's performance.

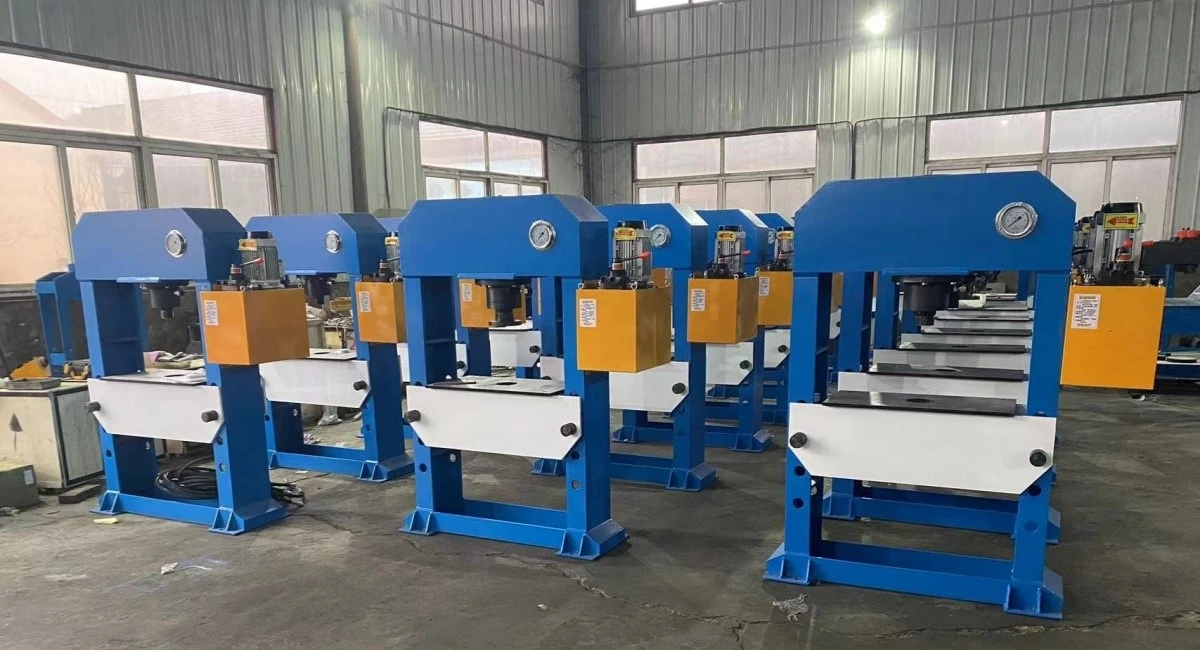

Our factory
