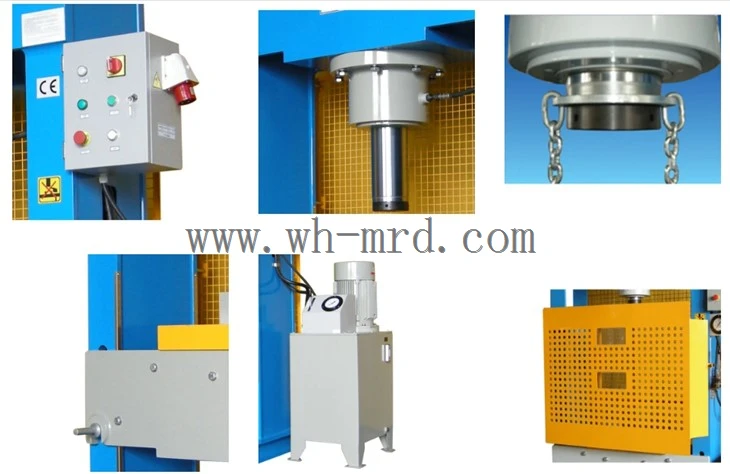

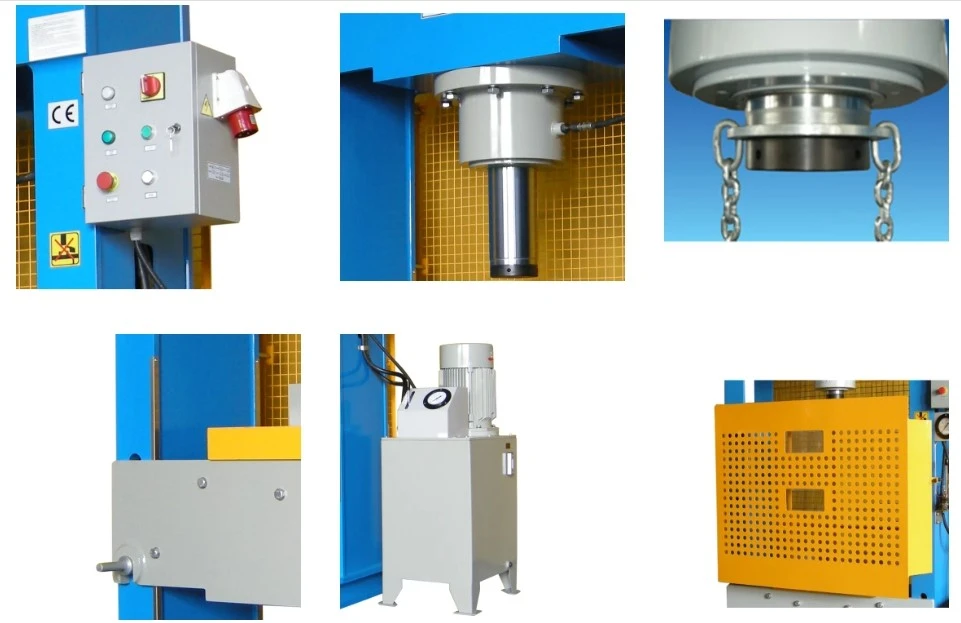

Electric Hydraulic Press





●  Welded heavy-duty steel frame ensures high rigidity and durability.



●  Compact structure with an attractive appearance; easy to operate.



●  A safety guard reduces the risk of accidental damage effectively.



●  Double-acting cylinder features a 6-part oil seal system for a tight seal and smooth operation.



●  The Electric Hydraulic Press system uses well-known brand components. The cylinder is made of high-quality steel, ensuring durability and reliability.



●  The electric hydraulic press features a well-positioned manual handle with an auto-reset function at the hydraulic station. The pressure head can stop at any position. (Complies with CE norms.)



●  The ram includes lifting chains for easy hydraulic adjustment of the worktable.



●  Equipped with a top-brand Chinese motor and Schneider/Siemens components. (CE certified)













Electric Hydraulic Press Technical Parameter	20TA	30T	40TB	60TB	80TB
Stroke (mm)	200	200	200	200	240
Gantry span (mm)	420	520	520	520	520
Table size (mm)	360*400	400*460	400*460	400*460	500*450
Motor power (kw)	2.2	3	5.5	5.5	5.5
Oil pump displacement (ml / R)	6	5	10	10	25
Descending speed (mm / s)	12	6.5	14	12	23
Return speed (mm / s)	19	9.5	19	16	34
Net weight (kg)	240	370	370	380	860





1.Rear guard net×1pcs,Fixed mesh screw×4pcs

2. Lift device×1set

3.Worktable ×1pcs,V-shaped iron×2pcs

4. Vulnerable parts -- sealing parts of a pump station and pipe joint
