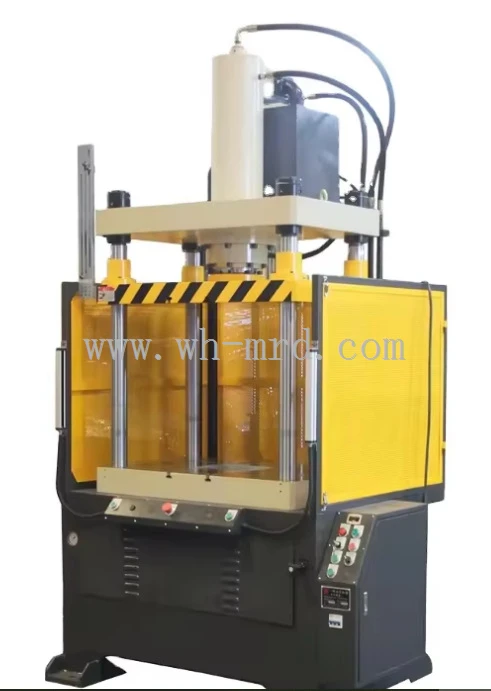

100T Four-column three-plate hydraulic press



Adopts a Four-Column, Three-Plate Structure:
The movable plate remains parallel to the table with high precision. The four-column precision linear self-lubricating bearings ensure excellent vertical accuracy.



Equipped with Imported Components:
Features a low-noise, high-performance oil pump and solenoid valve from international brands, ensuring a long service life.



Advanced Safety and Sensing Systems:
Includes a photoelectric safety protector, force sensor, and unique specialized sensors for enhanced monitoring and protection.



Adjustable Pressure and Stroke:
The pressure and stroke can be adjusted to meet the specific requirements of the pressing process. The machine is operated with both hands for safety and includes emergency stop and inching functions, making it both safe and efficient.











Standard Modle		Unit	MRD-10T	MRD-20T	MRD-30T	MRD-50T	MRD-80T	MRD-100T
Pressure Range		TON	10	20	30	50	80	100
Oil Cylinder Stroke		MM	250	250	250	300	300	300
Max Opening Height		MM	400	400	400	500	500	500
Descending Speed		M M/s	150-180	150-180	150-180	130-160	130-160	90-100
Descending Speed		MM/s	20	20	20	15	15	15
Workbench	L(edge)	MM	450	500	600	600	600	600
Area	W (edge)	MM	450	500	500	600	600	600
Elevation Of		MM	850	850	850	900	900	900
Use The Power Supply		V	380	380	380	380	380	380
The Motor Power		KW	2.25	3.75	3.75	5.5	5.5	5.5









This series of hydraulic presses is suitable for pressing, punching, bending, and riveting hardware parts.



It can be used for punching, stamping, forming, shallow drawing, shaping, and press-fitting of metal or non-metal parts, as well as for plastic sheet blanking and powder product compression.



Also suitable for stamping electronic insulation products and silicone components, shaping transformers, assembling motors, and pressing shafts and bearings.

























1. What is your normal delivery time?
    Our company's normal delivery time is 7 to 20 days after receiving the order deposit.

2. What are the payment terms you provide?
    We provide wire transfer, and other methods require communication and negotiation with the business.

3. What is the minimum minimum quantity for your product?
    For conventional machines, we have stock available with a minimum order quantity of 1 set.

4. What kind of package do you offer?
    Provide corresponding complete sets of molding equipment based on your materials.

5. How to control product quality?
    We have always adhered to the concept of "quality for production, service for development", so we attach great importance to maintaining the quality level.
