Working principle
The riveting machine for brake lining utilizes stamping machine equipment and a dedicated connecting die to carry out a high-pressure processing procedure in an instant. Based on the cold extrusion deformation of the material of the sheet itself, a stress-free concentrated internal inlaid dot with certain tensile and shear strength is formed. In this way, two or more layers of sheet components with different materials and thicknesses can be joined together.
Riveting machine parameters
| Product Name | Riveting machine for brake lining |
| Loading Planning | 5-53KN |
| Repeatability Accuracy | +/- 1% of the set load |
| Throat Depth | 18 inches (500mm) |
| Throat Height | 400mm |
| Stroke Interval | 110mm |
| Oil Cylinder Oil Storage | 65 liters |
| Hydraulic Pump Motor Power |
2.2KW
|
| Power Supply | 380v, 3 phases, 50 hz |
| Weight (Packed in wooden crate) | 550KG |
Advantages
Powerful: It offers sufficient power to handle various riveting tasks. It can adapt well to situations involving thicker plates or requiring greater riveting force.
Easy to Operate: Just connect it to a compressed air source, and start riveting with simple switch operations. The process is straightforward and user - friendly, effectively boosting work efficiency.
Safe: Usually equipped with multiple safety features like overload protection and anti - misoperation protection, minimizing safety risks for operators during use.
Low Maintenance Cost: With a relatively simple structure and fewer key components, and using air as the power source, it avoids problems such as oil leakage that occur in hydraulic systems. Routine maintenance and repairs are more convenient, keeping maintenance costs low.

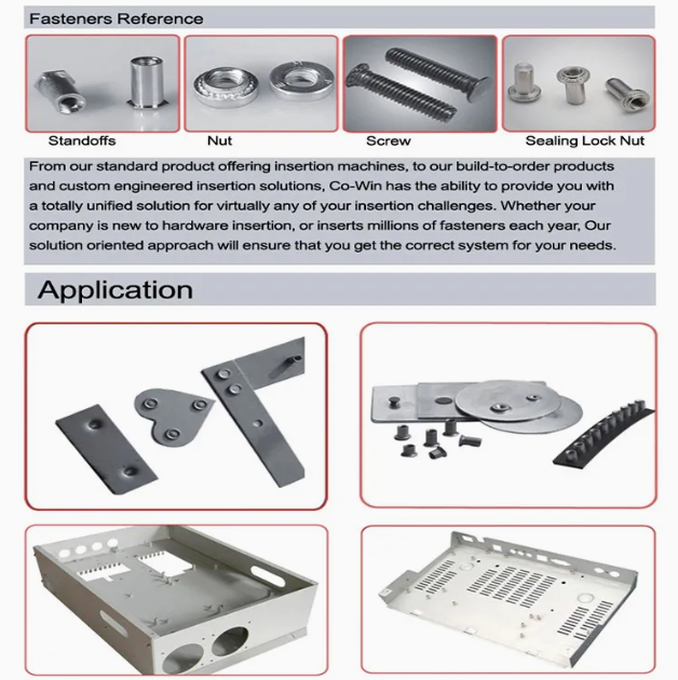

Application Fields
Automobile Manufacturing:
Rivets parts like the car body, chassis, and engine, such as connecting body frames, fixing doors, and assembling chassis components.
Aerospace:
Widely used in making and maintaining aircraft structures, engines, landing gears, etc., to ensure structural strength and safety.
Shipbuilding:
Rivets hull structures, decks, bulkheads, etc., joining metal parts to guarantee the ship's strength and sealing.
Electronics and Electrical Appliances:
Ideal for riveting computer cases, electrical enclosures, circuit boards, etc., to fix internal components.
Construction Engineering:
Applicable in steel - structure buildings, bridges, curtain walls, etc., connecting beams, plates, and alloy profiles.
Operation Precautions
Before operation: Check the pneumatic riveting machine for damage, loose connecting pipelines, and normal air supply. Ensure the rivet storage bin has enough rivets, and verify that the riveting gun's adjusting device works properly.
During operation: Correctly connect the pneumatic riveter to the air source and turn it on. Load the needed rivets, ensuring the riveter's safety device is in good working order. Adjust the oil port and pressure control device for proper air pressure. Align the riveting machine's muzzle with the fixing point, hold it firmly, then press the trigger to rivet, keeping the machine stable throughout.
After operation: Turn off the air supply, release the trigger, and let the riveting machine spring back. Clean and maintain the machine, removing residual rivet chips and dust. Regularly lubricate all parts to extend its lifespan.
