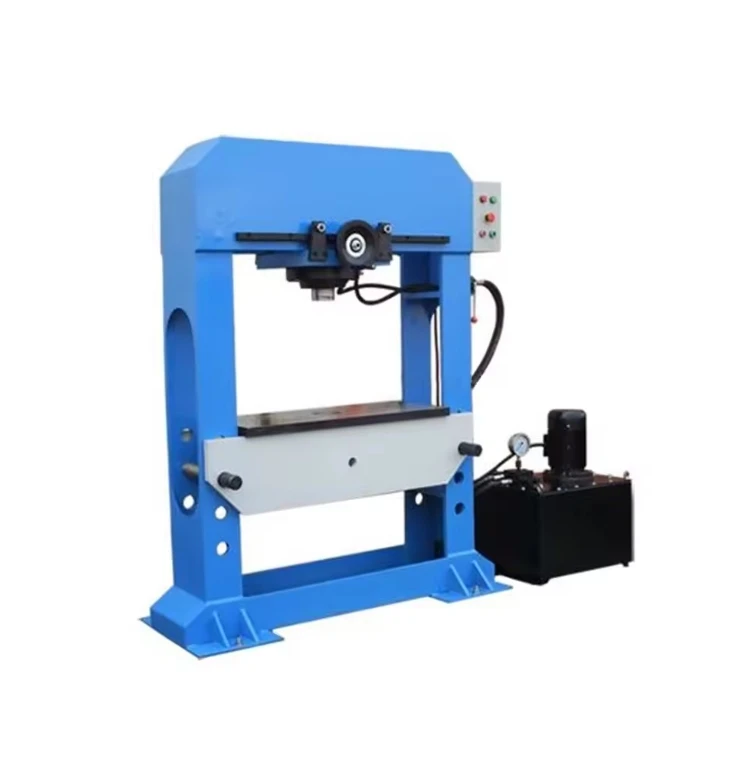

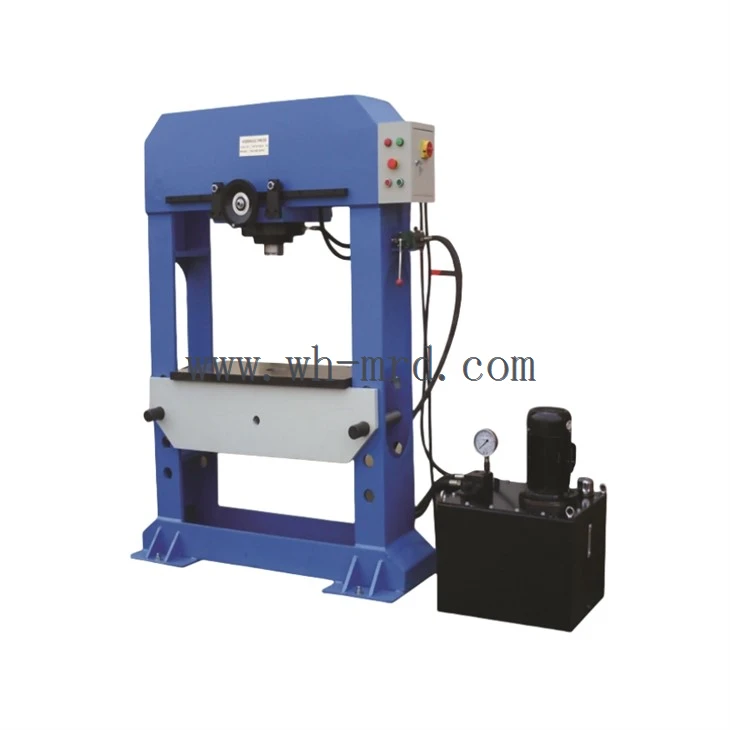

Electrical Hydraulic Press Machine, Light Duty Hydraulic Cylinders, Hydraulic Press Machine 50ton, H frame hydraulic press for workshop pressing metal, Hydraulic Press, workshop Press, 100 Ton Hydraulic Press, etc..
Product Features
Multi-functional Operation
Achieves true multi-purpose functionality, enabling one machine to handle diverse tasks.
Superior Energy Efficiency and Productivity
Compared to traditional hydraulic machines, this series reduces energy consumption by over 60% and boosts efficiency 2 to 3 times.
Compact and Robust Design
Features a small footprint, high-pressure output, a simple structure, and lightweight construction for easy installation and operation.
Versatile Worktable Movement
The worktable can move vertically, significantly increasing the machine's open-close height range. This feature enhances usability, allowing for easier handling of various workpieces.
Structural characteristics
product Parameter
|
Model |
TPS-10 |
TPS-20 |
TPS-30 |
TPS-50 |
TPS-63 |
|
Capacity (kn) |
100 |
200 |
300 |
500 |
630 |
|
Pressure (MPa) |
25 |
25 |
25 |
25 |
25 |
|
Travel ( mm) |
200*200 |
200*250 |
200*270 |
220*405 |
220*405 |
|
Table Size ( mm ) |
260×300 |
260 x 300 |
300×400 |
480×360 |
400 x 500 |
|
Dimension (mm) |
1000x450x1200 |
1160x550×1500 |
1160x550xl600 |
1500x650x1950 |
1500x650x1950 |
|
Weight ( kg) |
220 |
320 |
420 |
980 |
1020 |
|
Model |
TPS-100 |
TPS-150 |
TPS-200 |
TPS-250 |
|
|
Capacity (kn) |
1000 |
1500 |
2000 |
2500 |
|
|
Pressure (MPa) |
25 |
25 |
25 |
25 |
|
|
Travel ( mm) |
250+405 |
250+405 |
300+405 |
300+405 |
|
|
Table Size ( mm ) |
440×980 |
440 x 980 |
500 x 980 |
500 x 980 |
|
|
Dimension (mm) |
1730x730x2200 |
1730x730x2200 |
1800x800×2200 |
1800x800×2250 |
|
|
730x630x960 |
730x630×960 |
830x730x1260 |
830x730x1260 |
|
|
|
Weight ( kg) |
1220 |
1350 |
2200 |
2400 |
|
|
Model |
TPS-200 |
TPS-300 |
TPS-400 |
TPS-500 |
TPS-630 |
|
Capacity (kn) |
2000 |
3000 |
4000 |
5000 |
6300 |
|
Pressure (MPa) |
25 |
25 |
25 |
25 |
25 |
|
Travel ( mm) |
300+405 |
300+405 |
300+405 |
300+405 |
400+405 |
|
Table Size ( mm ) |
980 x 500 |
700×1200 |
800×1200 |
900×1200 |
1000×1200 |
|
Dimension (mm) |
1940x950x2350 |
2100x950x2700 |
2300×1000x2900 |
2300×1000x2900 |
2300×1200x2900 |
|
900x800×1060 |
1100x1200x1350 |
1100x1200x1360 |
1100x1200x1350 |
1100x1200x1350 |
|
|
Weight ( kg) |
2200 |
4200 |
5500 |
6500 |
9500
|
Our factory
FAQ
1. Why Choose Merido?
--Top-notch Quality at Competitive Prices: Our products not only ensure high quality but also have the potential to generate substantial revenue.
--Exceptional Customer Service: We prioritize our customers and are committed to providing excellent support.
--Swift Response: We guarantee a quick reply within 24 hours, accompanied by professional technical support.
--User-friendly Manual: We offer an easy-to-understand English manual for both using and maintaining the machine.
2. How about the Quality and Safety of Your Products?
Our products have undergone rigorous testing and are CE certified, ensuring safety. They also comply with American and Australian standards.
3. What's the Minimum Order Quantity for Your Company?
The minimum order is 1 set. We have certain products in stock, and we will dispatch the products within 2 days.
4. I value service. What about Your After-sales Service?
We strive to offer an outstanding purchasing experience. All our products come with at least a 12-month warranty. In case of any issues regarding the products, installation, or usage, we provide skilled technical support. Additionally, if machine parts are damaged during the warranty period, we will supply the necessary repair parts.
5. Do You Offer Custom Designs?
Yes, Merido provides OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services for our high-end partners. Our proficient engineers are also capable of offering excellent design suggestions.
