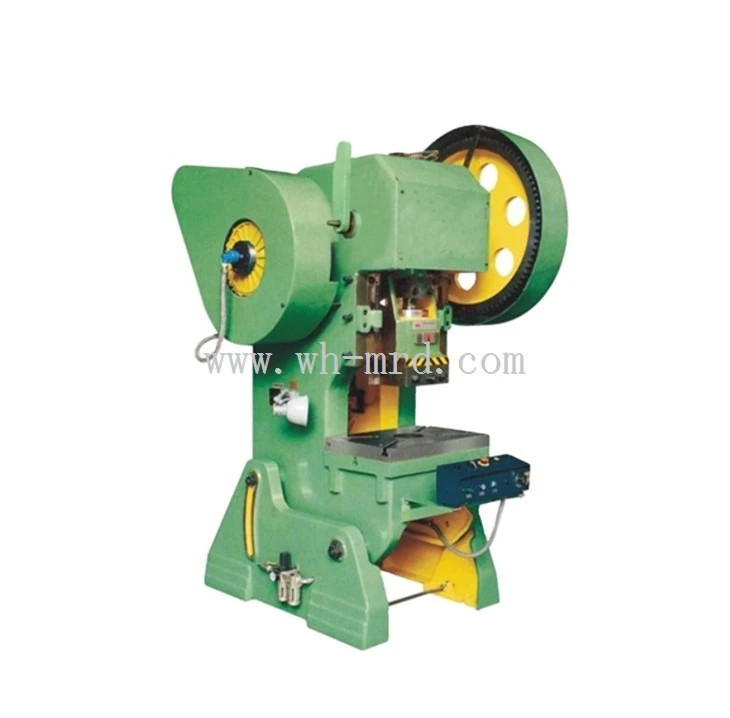

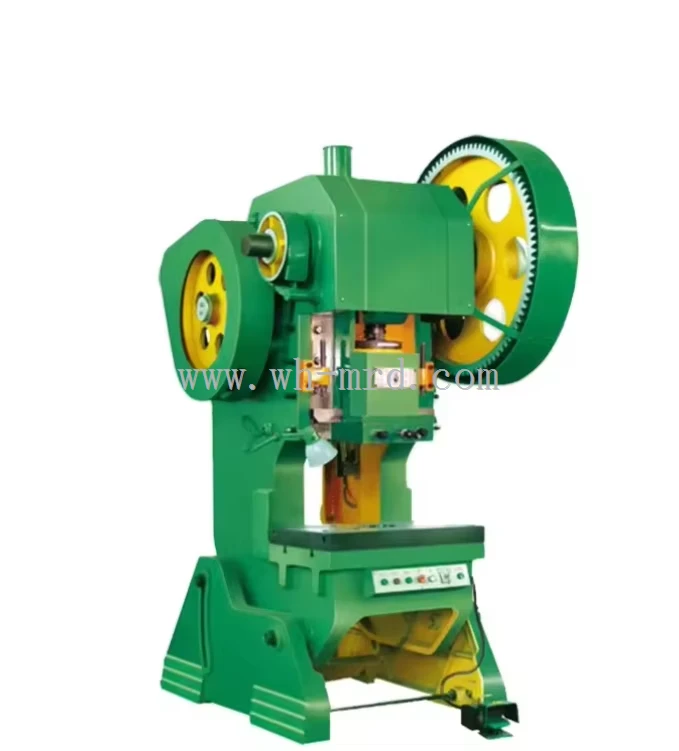

J23-16T Punching Machine



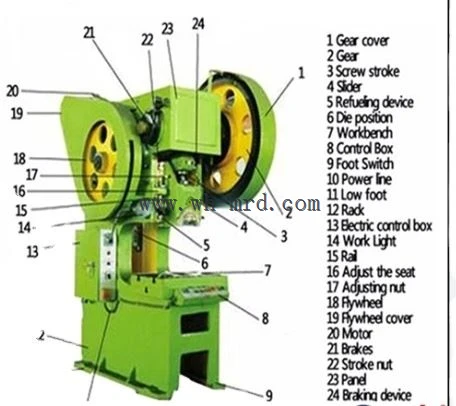

The Machine Structure



1.C-Frame Design:
The C-frame structure provides maximum rigidity and minimal deflection, ensuring accurate parts production and extended tool life. The steel-welded frame offers high rigidity and reduced deformation. Thick plates and large columns provide a stable platform, ideal for demanding applications.



2.Wide Body Frame:
The wide body frame minimizes vibrations, improving die life and overall machine performance, making it economical and practical. The spacious operation area allows the movable bolster to be extended out of the frame for easier die setup. The design is simple yet aesthetically appealing.



3.Performance and Operation:
The machine features high accuracy, high efficiency, simple and convenient operation, reliable performance, favorable pricing, and excellent service.



---

RAM Adjustment and Structure



1.Adjustable Stroke:

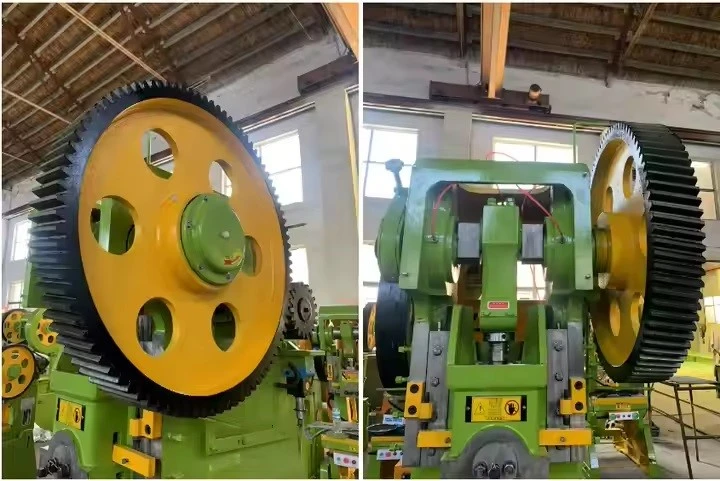

The machine offers an adjustable slide stroke within a specified range. The body uses a steel plate welded structure, tempered for strength. It adopts secondary transmission, with the crankshaft positioned horizontally. The flywheel and gears are externally mounted, allowing for easy maintenance.



2.Slider Structure:
The slider adopts a rigid, cast box structure. A pressure overload protection device is integrated into the slider. In the event of an overload, a fuse collapses to protect the machine and the die from damage, ensuring a simple and effective safety mechanism.



---



Electrical System and Safety Interlock



1.Electrical Components:
The electrical system uses components that are either imported or sourced from Sino-foreign joint ventures, meeting international standards. It ensures reliable safety, long service life, strong anti-interference capability, and includes a radiation unit within the electrical cabinet.



2.Safety Features:

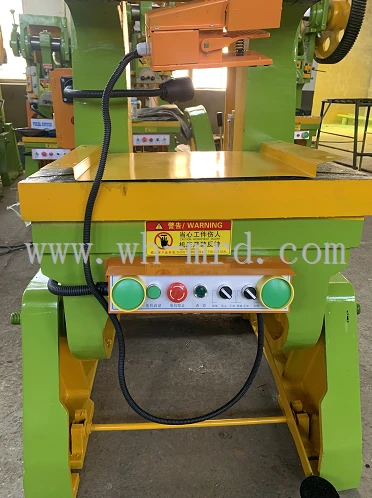

Protective fencing and safety interlocks guarantee operational safety. A movable, single-hand pedal switch is included for ease of operation.





Transmission Control and Brake Systems



1.Combination of Dry Friction Clutch and Pneumatic Brake:
The system combines a dry friction clutch with a pneumatic brake for rigid interlocking and reliable performance. It uses semi-metallic friction material (SMFM88), which reduces pollution and offers a long service life. The system effectively transfers torque with minimal rotational inertia, ensuring smooth transmission, flexible operation, and ease of installation and maintenance.



2.Die Height Adjustment:
The die height adjustment of the slider is manually controlled with scale display for precise measurements. The four triangular rails allow for easy and accurate adjustments.



3.Double Safety Valve:
A double safety valve is used to ensure the accurate implementation of clutch instructions, adding an extra layer of safety during operation.



4.Electrical Control with PLC Integration:
The electrical control system is equipped with a PLC and an 8-group cam controller, ensuring reliable and precise actions.



5.Omron PLC for Centralized Control:
The system uses an Omron PLC for centralized control, which significantly improves the machine's reliability and operational performance.



6.Proximity Switch and Schneider Cam Controller:
The system includes 8 proximity switches, coordinated with a Schneider cam controller, providing reliable synchronization detection and monitoring for optimal performance.



7.Dual Control Mechanism:
The machine is equipped with both a two-hand button and a foot switch, allowing for continuous, single, or inching operations to meet different operational needs.



8.Slow RAM Movement for Mold Adjustment:
The RAM can be moved up slowly, providing the operator with the ability to conveniently control mold adjustments.





Name	Unit	Specifications
nominal pressure	ton	16
Slide stroke	millimeter	60
Number of slider strokes	Per minute	120
Maximum enclosed height	millimeter	205
Workbench dimensions: front and back * left and right	millimeter	450*280
Size of the cutting hole on the workbench	millimeter	Diameter 130mm
Mold handle hole size diameter * depth	millimeter	40*60
Slider adjustment amount	millimeter	50
Thickness of worktable	millimeter	35
Maximum tilt angle of the aircraft body	degree	/
Distance between the center of the slider and the body	millimeter	160
Distance between the two pillars of the fuselage	millimeter	200
Motor model	model	/
	Power	1.5kw
External dimensions	Length (millimeters)	1100
	Width (millimeters)	780
	Height (millimeters)	1800
The overall weight of the machine is approximately	kg	600
