Mini Milling Machine

1. Brushless Motor & Variable Spindle Speed;
2. Fine & Smooth Feeding Movement on Every Directions;
3. Perfect for slotting, grooving, splines, and gear cutting.

Send Inquiry

Description

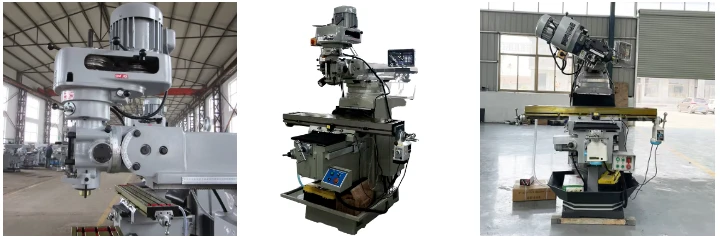

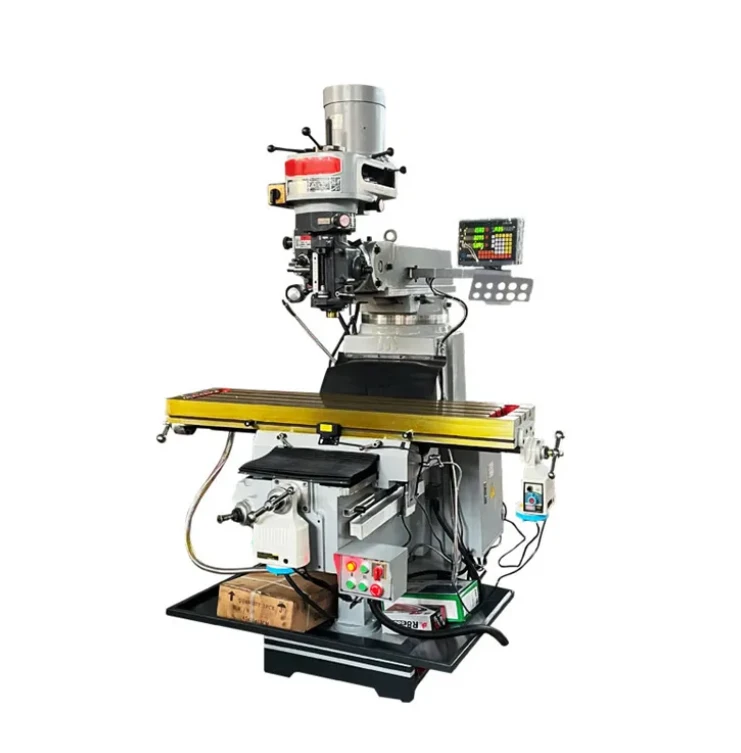

Mini milling machine

The Mini Milling Machine is a universal light-duty metal cutting machine, designed for both vertical and horizontal milling operations. Ideal for small to medium part machining, this machine is perfect for surfaces, grooves, inclined planes, splines, and more. With its compact footprint, it offers a space-saving, budget-friendly solution for a wide range of applications.

Best suited for:

Mechanical Processing

Mold Manufacturing

Instrumentation

Equipment Assembly

Product parameters

Specifications		Mini Milling Machine
Table size	mm	1270x254(10"x50")
Table travel	mm	780/400/420
T slot(number-width-pitch)	mm	3-16-50
Spindle taper		Standard: R8 Optional: ISO40
Spindle speed range	rpm	Standard:16 steps, 50HZ:65-4500 ,60HZ:80-5440 Optional: variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15(3 steps)
Distance between the spindle nose and the table surface	mm	90-510
Main motor power	kw	2.2
Head rotation (left-right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1400
Overall dimension	mm	1550x1650x2250
