Product Parameter
| Maximum diameter of rivet :(rivet material 35# steel) | 016 |
| riveting pressure | 35kn |
| Worktable center positioning hole diameter | φ28 |
| Table lifting movement amount | 230mm |
| Maximum working travel of riveting head | 30mm |
| Rivet head extends to length | 62mm |
| Distance from rivet head to table | 260mm |
| Distance from rivet center to body face (throat depth) | 135mm |
| Spindle motor power and speed | 1.1kw 960rpm |
| Oil pump motor power and speed | 1.1kw 1450rpm |
| Oil pump motor steering | Clockwise (looking down) |
| Oil pump allows output pressure | 2.5Mpa |
| Table size (L * W) | 370*350mm |
| Overall dimensions of the machine (L * W * H) | 585*800*1770mm |
| Net machine weight | 800kg |
| Applicable power supply | AC 380v |
| Applicable hydraulic oil | 32#/46# |

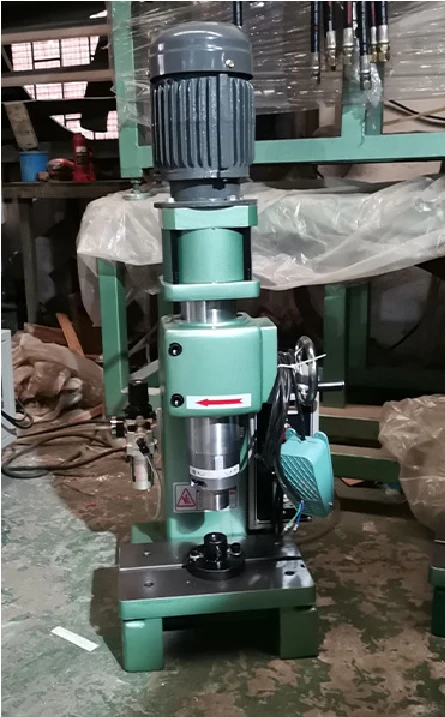

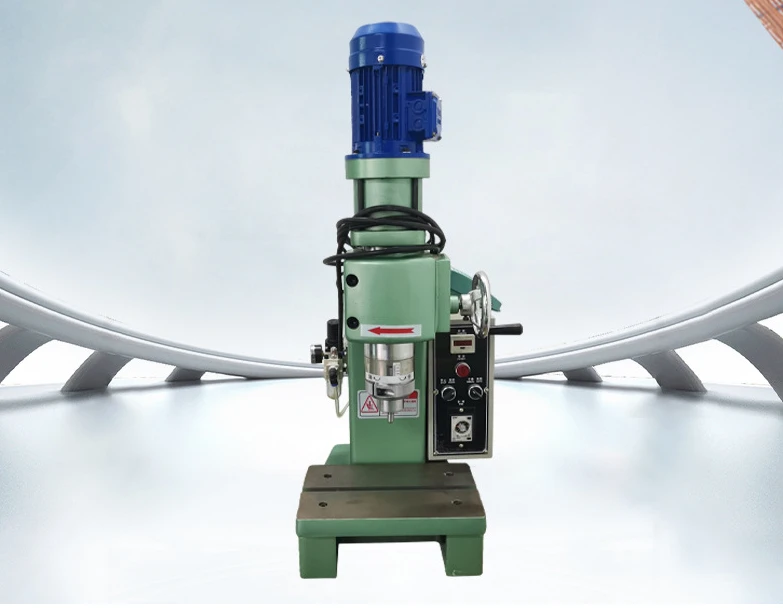

product presentation
1.Versatile Functionality: The machine is fully functional and can be used for riveting various types of rivets, including countersunk heads, semicircular heads, cylindrical heads, spherical cylindrical heads, and hollow rivets, depending on the design of the riveter. Additionally, the gas emitted during the riveting process is oil-free, making it environmentally friendly. This feature makes the machine suitable for use in medical and food machinery environments.
2.Advanced Circuit Design: The machine's advanced circuit design enables automatic riveting action, ensuring consistent timing for each rivet and improving the product qualification rate. When operating in automatic mode, the timer can be easily adjusted to the optimal setting, enhancing both production efficiency and output.

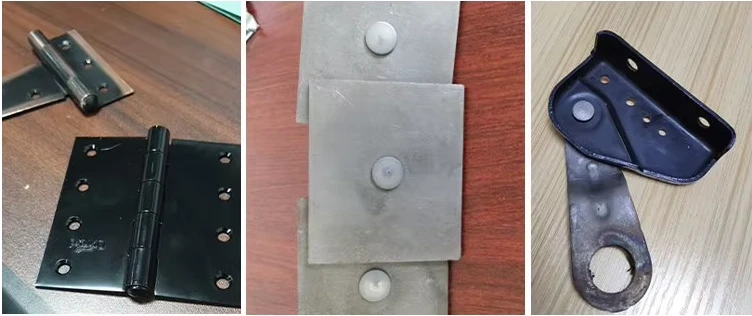

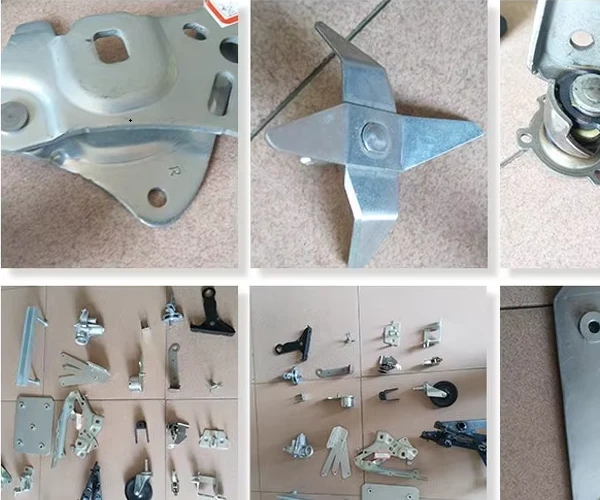

product application
Widely used in recording movement, cameras, clocks, radio components, hardware, steel and wood furniture, brake pads, scissors, pliers, children's cars, baby buggy, carriage,motorcycles manufacturing, electrical appliances and instruments, hardware tools and other related fields.
