C Frame Press







                        C Frame Press

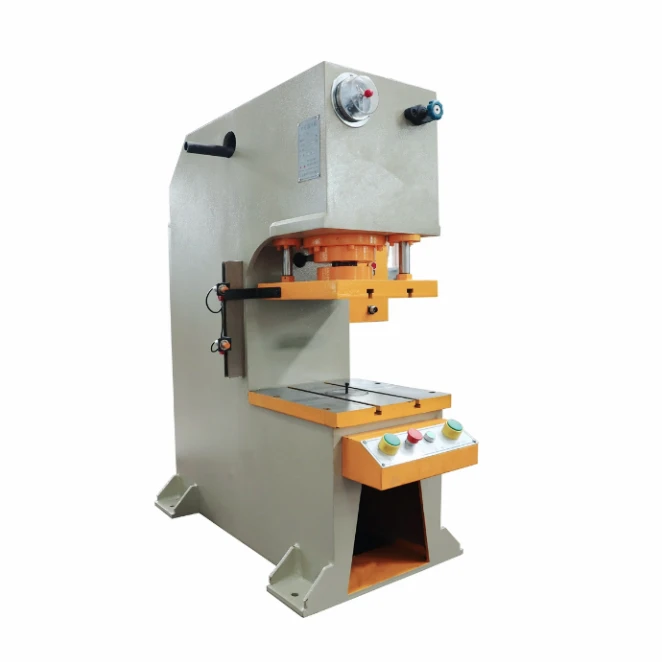

The C Frame Press, also commonly known as an open-gap frame press, is a versatile hydraulic press machine ideal for a wide range of applications, including straightening, assembling, bending, stamping, riveting, press-fitting, and more.



Our C-frame press is suitable for straightening metal sheets, plates, pipes, and profiles. The spacious bed and movable upper beam allow for the straightening of large workpieces. An advanced hydraulic system and precision-machined cylinder ensure accurate and repeatable pressure control for high-quality results. Its rugged construction is built to withstand heavy daily use.







--Compact and economical open-gap design



--Heavy-duty welded and rib-reinforced steel frame for maximum rigidity and minimal deflection



--Three-sided access to the working area for easy tooling loading, maintenance, and removal



--Custom-built to your specifications













Description	Merido-P03 5T	Merido-P03 15T	Merido-P03 50T	Merido-P03 70T	Merido-P03 100T
Nominal Force	50 KN	150 KN	500 KN	700 KN	1000 KN
Cylinder Stroke	180 mm	200 mm	300 mm	300 mm	300 mm
Open Height	350 mm	400 mm	550 mm	550 mm	550 mm
Bed Table	440*300 mm	450*350 mm	700*600 mm	800*650 mm	950*650 mm
Ram Dimension	–	400*300 mm	440*340 mm	520*400 mm	520*400 mm
Throat Depth	150 mm	175 mm	300 mm	325 mm	325 mm
Table Height	780 mm	780 mm	780 mm	800 mm	800 mm
Closing Speed	200 mm/s	200 mm/s	200 mm/s	200 mm/s	200 mm/s
Slow Pressing Speed	40 mm/s	25 mm/s	20 mm/s	18 mm/s	18 mm/s
Return Speed	200 mm/s	200 mm/s	180 mm/s	180 mm/s	180 mm/s
Motor	4 Pole, 2.2 KW	4 Pole,4 KW	4 Pole, 7.5 KW	4 Pole, 11 KW	4 Pole, 15 KW
Power Supply	3Phase, 220/380/415/480VAC, 50/60HZ	3Phase, 220/380/415/480VAC, 50/60HZ	3Phase, 220/380/415/480VAC, 50/60HZ	3Phase, 220/380/415/480VAC, 50/60HZ	3Phase, 220/380/415/480VAC, 50/60HZ
System Pressure	13 Mpa	15 Mpa	20 Mpa	21 Mpa	24 Mpa
Machine Approx. Weight	950 KG	1.5 Ton	5 Ton	7 Ton	11 Ton
Machine Approx. Size	580*930*1770 mm	620*1080*1980 mm	720*1500*2300 mm	1050*1750*2560 mm	1150*1850*2560 mm















1. Can you provide the relevant documentation?
Yes, we can provide most required documentation, including Certificates of Analysis/Conformance, insurance, certificates of origin, and other export documents where necessary.



2. What is the average lead time?
For samples, the lead time is approximately 30 days. For mass production, it is typically 25–45 days after receiving the deposit. Lead times become effective once we receive your deposit and final product approval. If our standard lead times do not meet your deadline, please discuss your requirements with our sales team. Most times, we can accommodate your needs.



3. What is the product warranty?
We guarantee our materials and workmanship. Our commitment is to ensure your satisfaction with our products. Whether within or beyond the warranty period, it is our company culture to address and resolve any customer concerns to your satisfaction.



4. Do you guarantee safe and secure product delivery?
Yes, we use high-quality export packaging to ensure the safe and secure delivery of our products. For dangerous goods, we use specialized hazard packaging, and for temperature-sensitive items, we use validated cold storage shippers. Please note that special or non-standard packaging requests may incur additional charges.



5. Where is your factory located in China?
Wuhan Mairuiduo Trading Co., Ltd. is located in Wuhan, Hubei Province. We warmly welcome you to visit us!





If you have any questions, pls feel free to contact me via mobile +8613507194818
