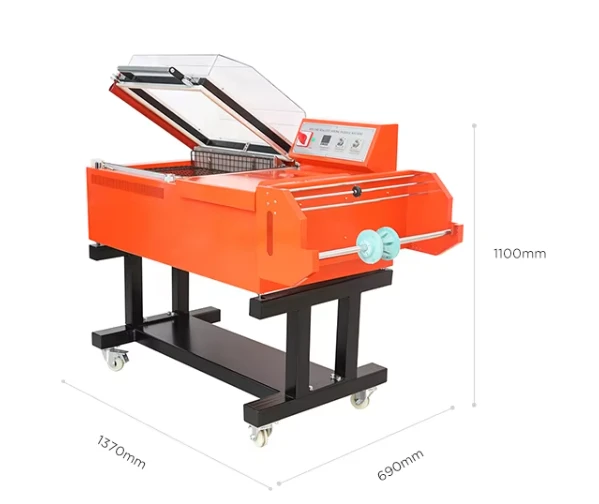

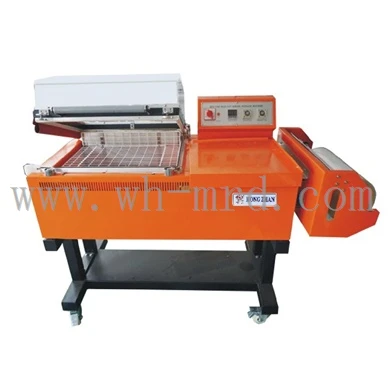

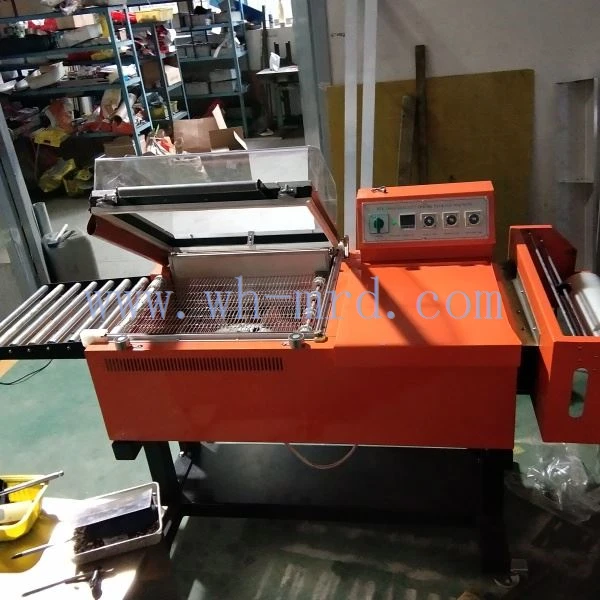

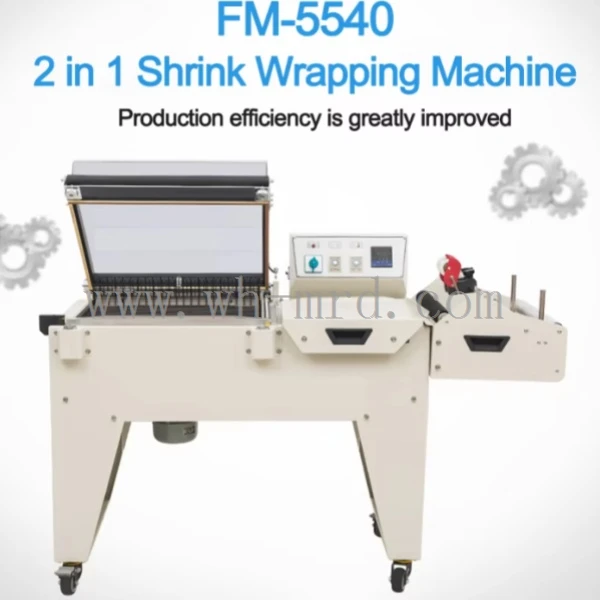

2 in1 Box Shrink Packing Machine with the function of automatic film feeding punching, coating, sealing cutting, waste film automatically rolling in one time which is widely used in mass production packaging line with high efficiency.
|
Model |
SP-50F |
HS-5030 |
||
|
Power |
220V/1P/50HZ, 1.25KW |
380V/3P/50HZ, 15KW |
||
|
Packing size |
L no limited, W+H≤380mm, H≤150mm |
W50-400*H20-250mm |
||
|
Sealing size |
L no limited*W470mm |
500*300mm |
||
|
Packing speed |
15-30bags/min |
15-30bags/min |
||
|
Air pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
||
|
Weight |
350kg |
300kg |
||
|
Machine size |
L1650*W900*H1470mm |
L1800*W1050*H1300mm |
||

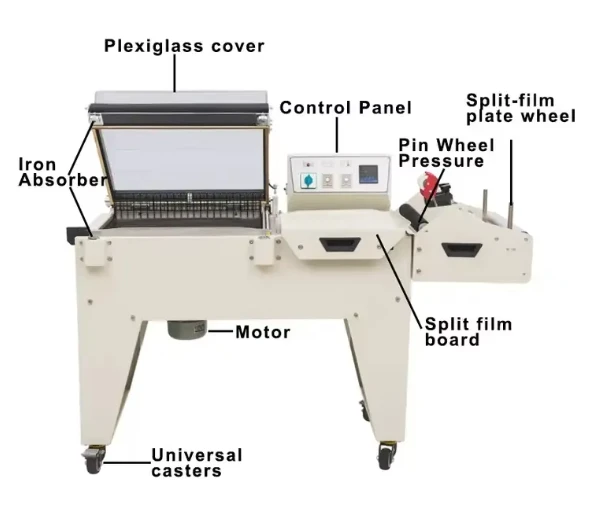

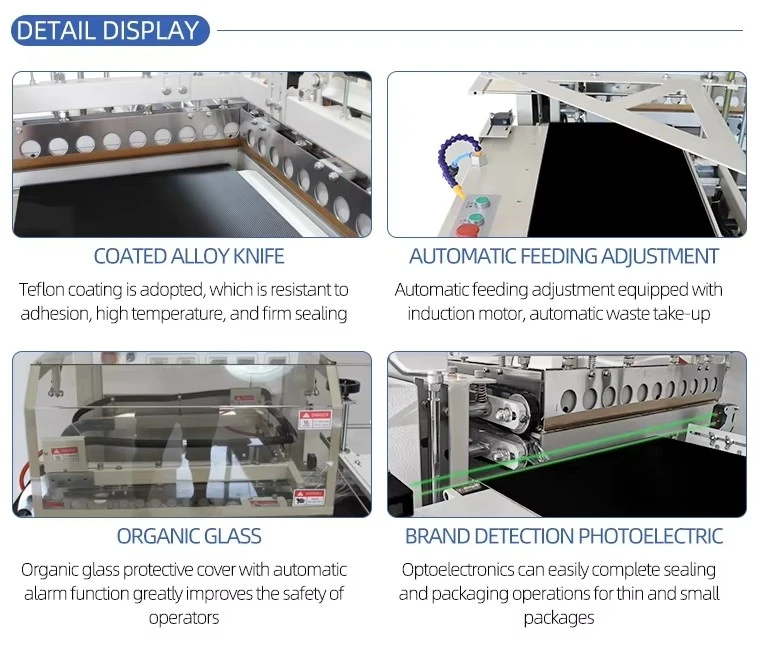

Main features
•The sealing part is consist of transverse sealing and side sealing, both can be lifting controlled independently.
•Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
•Side sealing part can continuous pull film sealing and cutting, the product length is unlimited.
•Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect.

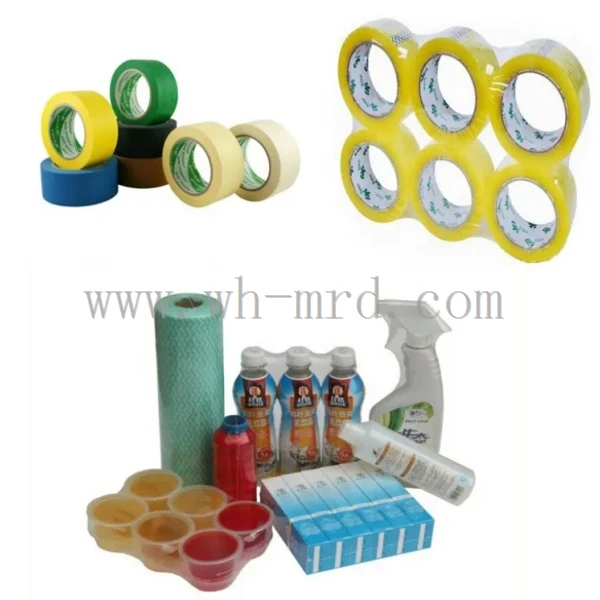

Packing Effect
