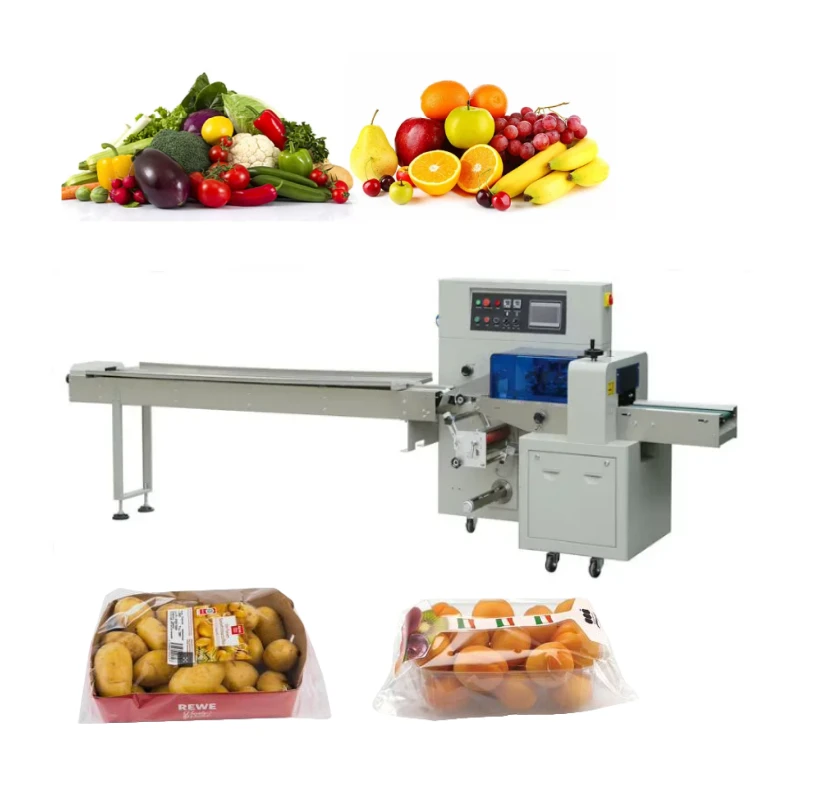

Horizontal Vegetable Flow Pack Machine
* All components that come into contact with the materials are crafted from 304 stainless steel. The Horizontal Vegetable Flow Pack Machine is equipped with functions such as automatic folding, automatic sealing, automatic cutting, and infrared counting.
* It features a specially designed feeding and bucket measuring system, enabling simultaneous bagging and unloading. This saves one-third of the operation time, boasts a high packaging speed, and offers high packaging precision.
* Imported sensors and pneumatic actuators are employed, ensuring reliable operation and easy maintenance. The measurement accuracy is within plus or minus two thousandths.
* It has a wide quantitative range and high precision. Equipped with a conveyor sewing machine that can be adjusted in height on the table, it serves multiple purposes and has high efficiency.
Product Parameters
|
Model |
MRD-250X |
MRD-350X |
MRD-450X |
MRD-600X |
|
Film Width |
Max.250 mm |
Max.350 mm |
Max.450 mm |
Max.600 mm |
|
Bag Length |
45~190 mm |
65~280 mm |
120~450 mm |
130~450 mm |
|
Bag Width |
30~110 mm |
50~160 mm |
60~210 mm |
60~280 mm |
|
Product Height |
Max. 40 mm |
Max. 45 mm |
Max. 110 mm |
Max. 110 mm |
|
Packing Speed |
40~230 bags/min |
40~230 bags/min |
30~150 bags/min |
30~150 bags/min |
|
Machine Size(mm) |
3920*670*1320 |
4020*720*1450 |
3990*900*1468 |
3990*100*1468 |
|
Machine Weight |
550KG |
600KG |
700KG |
800KG |
|
Machine Voltage |
220V, 50/60 Hz |
|||
|
Machine Power |
2.4KW |
2.8KW |
3.2KW |
4KW |
Application scenarios
Suitable for multiple packaging materials:
Polypropylene/polyethylene, aluminum foil/polyethylene, polyester/aluminum plated/polyethylene, nylon/reinforced polyethylene, paper/polyethylene, etc..

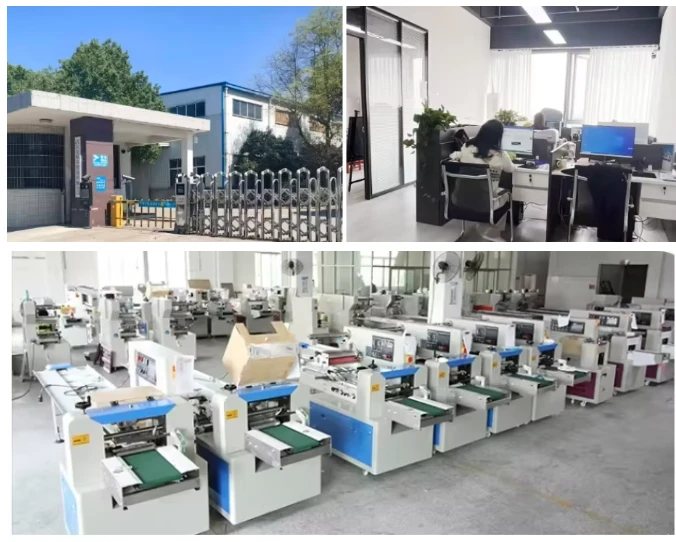

Factory Display
