Product Specification

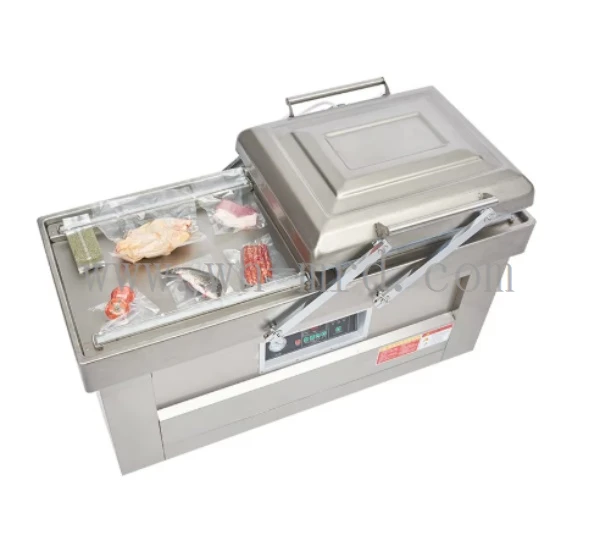

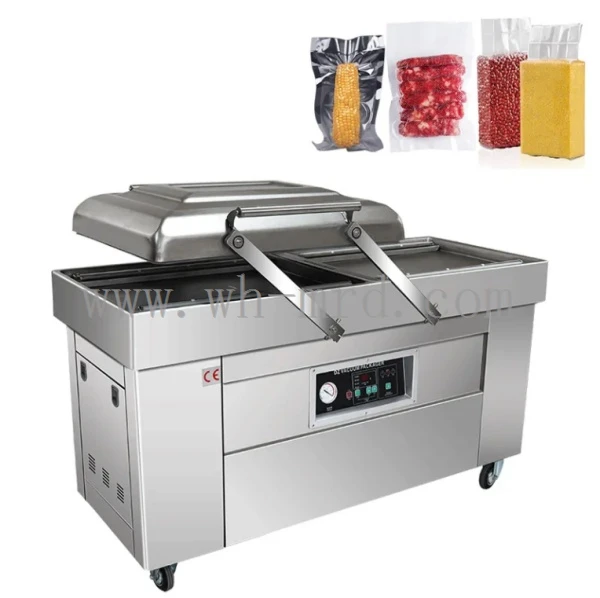

Vacuum fresh food packaging machine, designed for fresh food packaging. It is equipped with a highly efficient pumping system to complete the vacuum packaging process quickly.
|
Model |
MRD-700 |
MRD-800 |
MRD-900 |
MRD-1000 |
|
Machine body |
Food grade 304 stainless steel for its surface, work table, and swing lid |
|||
|
Inside frame |
Painted iron |
|||
|
Work table |
Flat work table |
|||
|
Chamber depth |
120-180 mm deep chamber in swing lid |
|||
|
Chamber size |
750*620mm |
800*650mm |
920*700mm |
1000*850mm |
|
Seal length |
700mm |
800mm |
920mm |
1000mm |
|
Seal width |
10mm |
10mm |
10mm |
8mm |
|
Seal no. |
2pcs |
2pcs |
2pcs |
2pcs |
|
Seal distance |
500mm |
650mm |
700mm |
900mm |
|
Vacuum pump |
ZD 100m³/h |
ZD 100m³/h |
ZD 200m³/h |
ZD 200m³/h |
|
Main power |
approx 3kW |
approx 3kW |
approx 4.5kW |
approx 5kW |
|
Voltage |
380 V/450 V 50 HZ/60 HZ 3 phase(or as customized) |
|||
|
Pack capacity |
1-2 cycles /min |
|||
|
Swing lid |
manual swing lid (Automatic swing lid is an optional function) |
|||
|
Control panel |
PCB (Relay /PLC optional controller ) |
|||
|
Weight |
360KG |
520KG |
600KG |
600KG |
|
Overall size |
1600*810*990 |
1860*960*1130 |
2030*880*1050 |
2450*1230*1030 |
|
Function |
vacuum+seal |
|||
Machine features
1. Efficient vacuum extraction
2. Precise sealing
3. Flexible customization
4. Hygienic and safe
5. Stable and reliable
6. Easy to operate

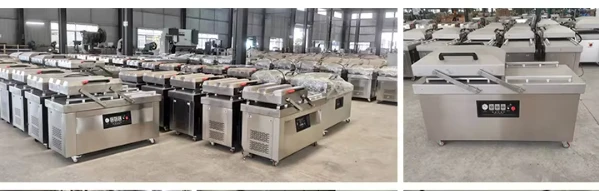

Packing&Shipping
FAQ
Q1. Do you provide samples? Is it free or charged?
A: For the first cooperation, we will charge the sample cost, but we will return the sample cost when you place a bulk order. And the courier cost for the sample will be paid by the buyer.
Q2. What about the lead time for the sample?
A: Sample lead time is 2-5 days, mass production time is about 15-45 days, subject to order quantity.
Q3. Do you offer a guarantee for the products?
A: Yes, we offer a one-year warranty.
Q4.What are your terms of payment?
A: T/T 30% deposit in advance, 70% balance against the copy of B/L. Or as agreed in the contract.
Q5. Has your factory passed a CE audit?
A: Yes, our factory passed the ISO 9001 and CE audit.
