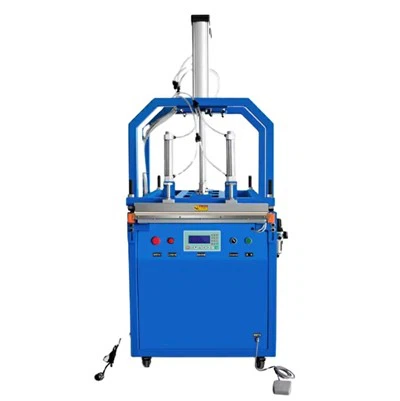

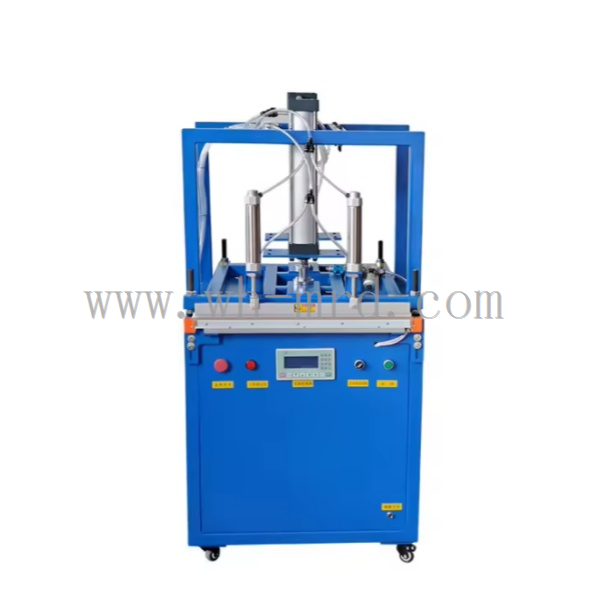

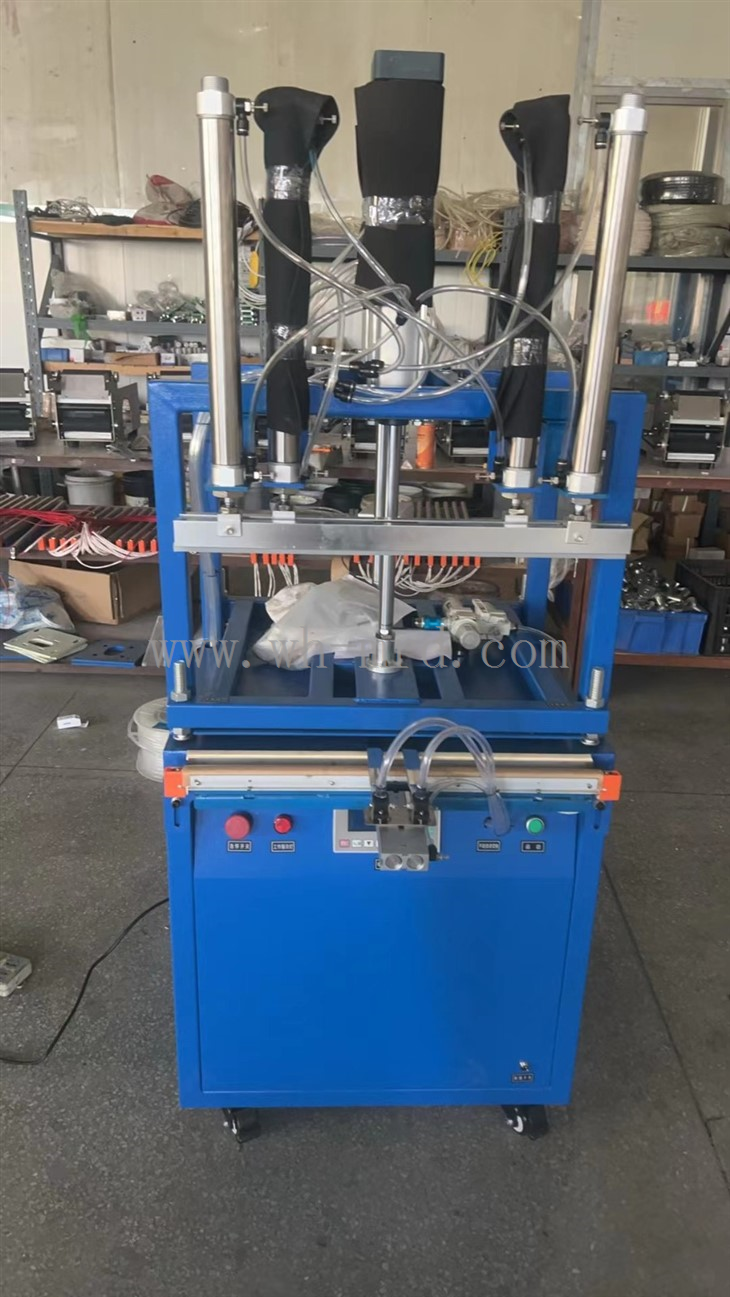

The Automatic Pillow Toy Compress Press Packing Machine is suitable for all kinds of blankets, pillows, clothes, washcloths and other fluffy things, with function of reducing size, saving space, dustproof, moisture-proof, dirt-proof, and flat.
Key Features
|
Model |
MRD-600 |
MRD-800 |
MRD-1000 |
|---|---|---|---|
|
Power |
1kw |
1kw |
1.2kw |
|
Seal length |
600mm |
800mm |
1000mm |
|
Machine Overall Size |
700×700×1800mm |
900×800×1800mm |
1100×1000×1850mm |
|
Gross Weight |
80kg |
100kg |
120kg |
High-pressure compression (typically 20-500 tons) reduces volume by 3-5 times.
Vacuum sealing prevents moisture and oxidation.
Automated operation (manual/semi-auto/full-auto modes available).
Energy-efficient design with fast cycle times (30-120 seconds).
Machine System
Ⅰ. Vacuum System:
The vacuum system is the core component responsible for extracting air from the package. It includes the vacuum pump, vacuum tube, vacuum valve, and other related parts. The vacuum pump generates the power required to remove air, while the vacuum tube connects all the system components. The vacuum valve regulates the flow of gas, controlling the air extraction process.
Ⅱ. Electrical Control System:
The electrical control system manages the operation of all equipment in the vacuum packaging machine, including the power switch, timer, and controller. Operators can adjust critical parameters such as vacuum time, compression time, and sealing temperature using this system, allowing for precise control over the packaging process.
Ⅲ. Compression System:
The compression system is designed to apply pressure to the objects being packaged. It typically consists of a compression plate, cylinder, and transmission device. The cylinder generates the necessary force to push the compression plate, compressing the items to the desired level, and the transmission device ensures efficient power transfer to the compression plate.
Ⅳ. Hot Press Sealing System:
Once vacuuming and compression are completed, the package needs to be sealed to maintain the vacuum. The hot press sealing system uses heating elements, sealing bands, and temperature control devices to seal the packaging materials. The heating elements provide the necessary heat to fuse the packaging material, while the sealing bands create a tight seal, ensuring the package remains airtight.
Logistic&Packing
FAQ
Q1: How do I set the vacuum level and pumping time on the Automatic Pillow Toy Compress Press Packing Machine?
A1: Locate the corresponding adjustment knob or button on the operation panel to set the desired vacuum level and pumping time.
Q2: Why is there still air left after pumping with the Automatic Pillow Toy Compress Press Packing Machine?
A2: Possible reasons include an untight seal, insufficient pumping time, or a malfunction in the machine.
Q3: How do I maintain the vacuum pump?
A3: Regularly check the oil level, change the oil as needed, and keep the air inlet clean to ensure proper operation.
