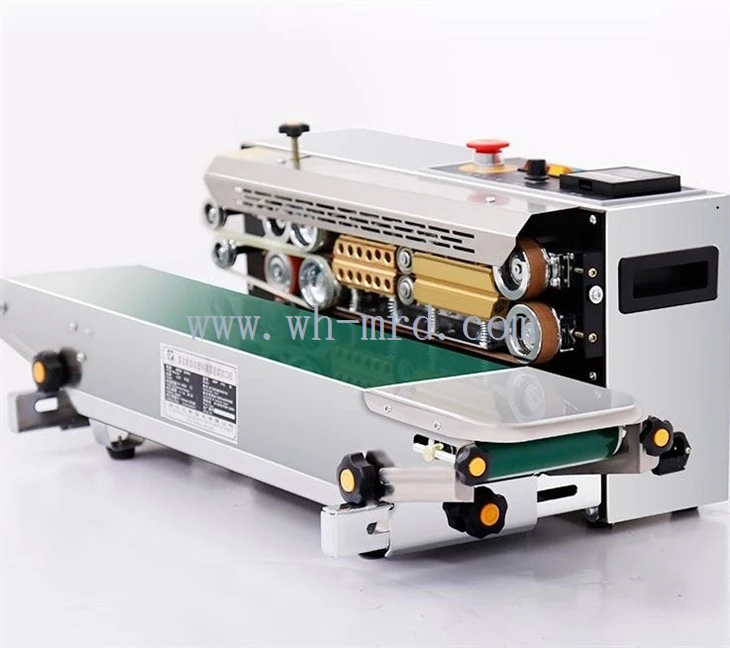

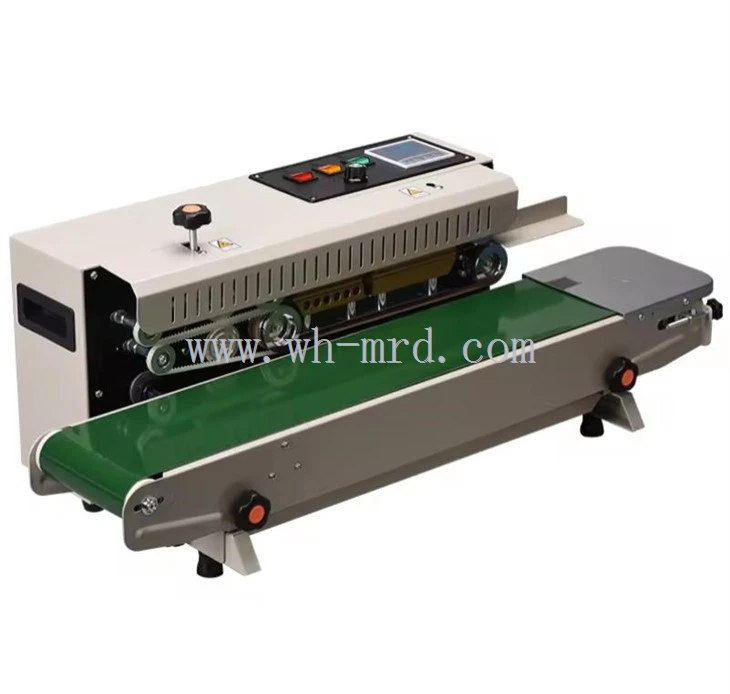

Automatic Plastic Sealing Packing Machine
The Automatic Plastic Sealing Packing Machine is suitable for sealing film mouths of diverse materials such as PE, PP, aluminum foil, and composite films. It can be integrated into various packaging lines. With no limit on sealing length, it offers high continuous-sealing efficiency, reliable sealing quality, and user-friendly operation.
Parameter
| Product name | Automatic Plastic Sealing Packing Machine |

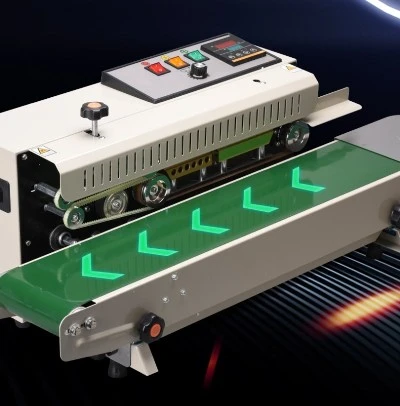

| Model | FR900 |
| Panel material | baked-on varnish |
| Voltage | 220v 50hz |
| Heating power | 600w |
| Temperature control range | 0~300℃ |
| Motor power | 80w |
| Sealing speed | 0~12m/min |
| Sealing width, thickness | 6~12mm,0.02~0.80mm |
| Body load | 5kg |
| Conveyor size | L820 x W135 x H150(mm) |
| Body size | L820 x W385 x H310(mm) |
| Packaging size | L900 x W420 x H340(mm) |
| Weight | 19kg |

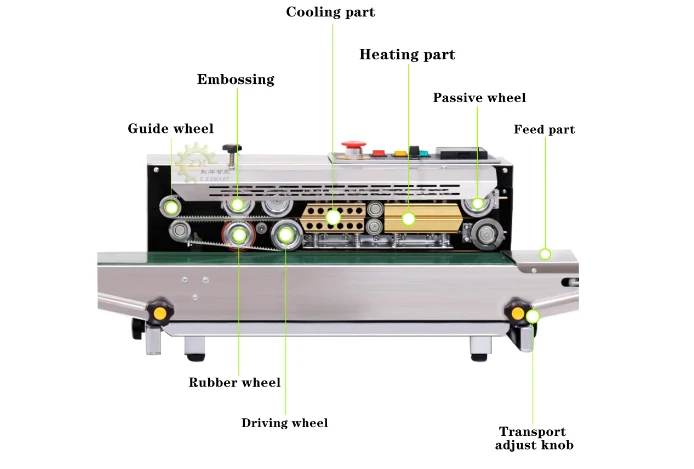

working process
Heating Process: When the Automatic Plastic Sealing Packing Machine is powered on, the heating element generates high temperatures, causing the sealing material to heat rapidly and melt at the surface.
Conveying and Cooling: The molten material is transported via a conveyor belt into the cooling zone, where it is rapidly cooled and solidified to complete the sealing process.
Temperature Control: A temperature control system adjusts the heating block to ensure the sealing material reaches the optimal melting temperature.
Cooling and Curing: The cooling system reduces the film's surface temperature appropriately, ensuring the sealed area is fully cured. Finally, the sealed bags are discharged from the machine via a guiding rubber belt and conveyor belt.
applications
