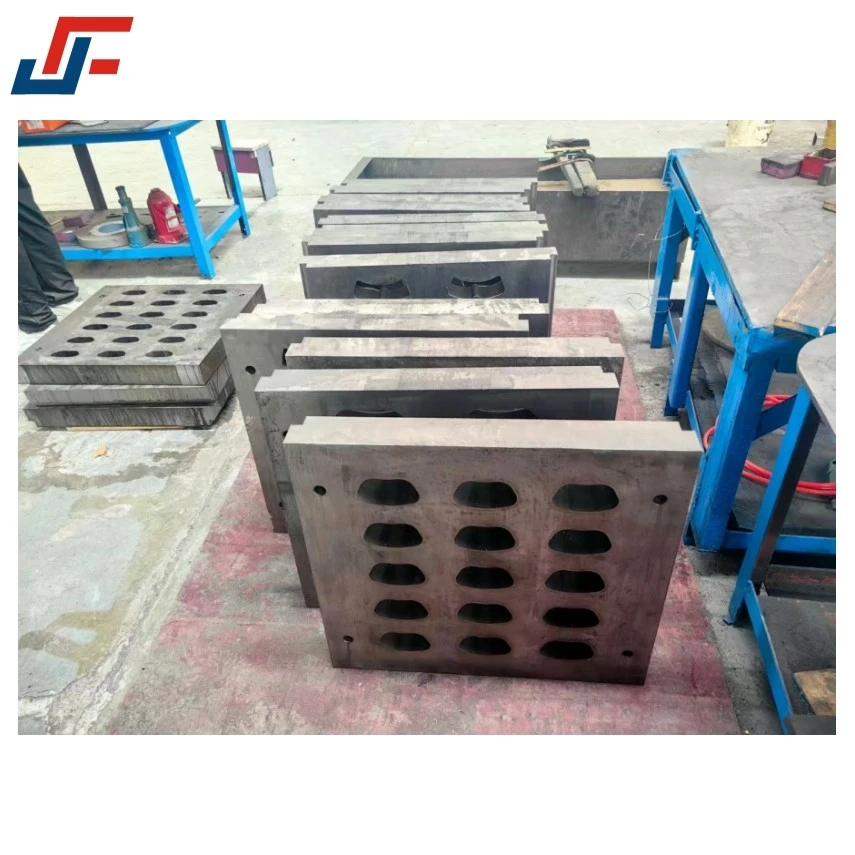

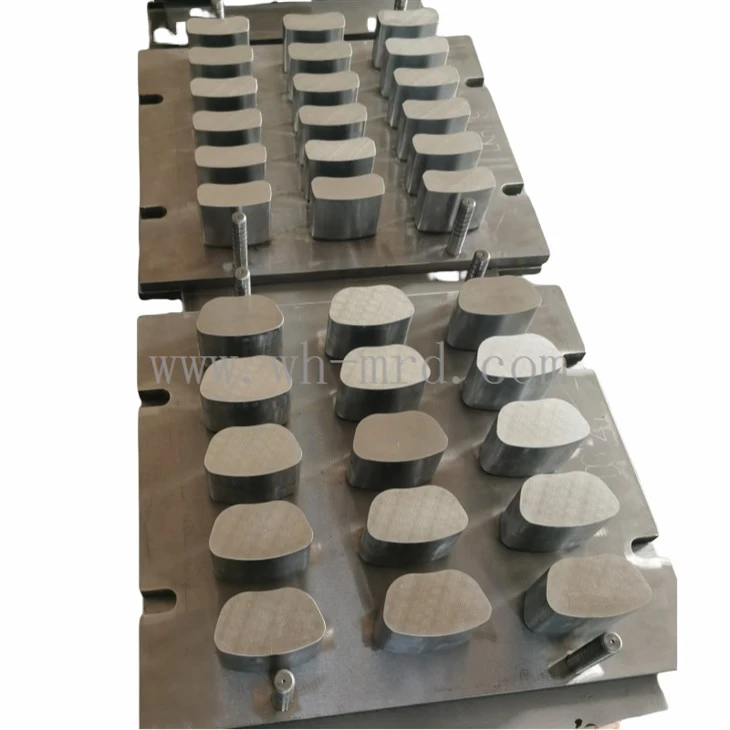

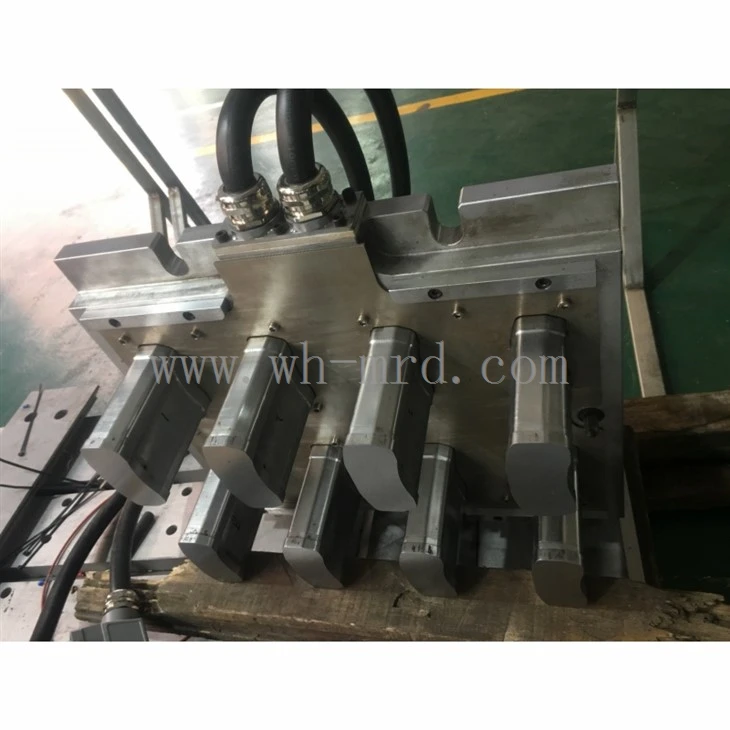

Automotive Brake Pad Mould
An automotive brake pad mould is a precision tool for making brake pads. It uses high temperature and pressure to compress raw materials into finished pads with specific shapes and properties.
Brake pads are vital for vehicle safety and driving experience. The precision and reliability of hot - pressing moulds affect key characteristics of brake pads, like friction coefficient, wear resistance, and thermal stability. Thus, high - quality moulds are essential for creating high - performance brake pads.
Products Features
1.The dimensions can be designed and manufactured according to customer requirements.

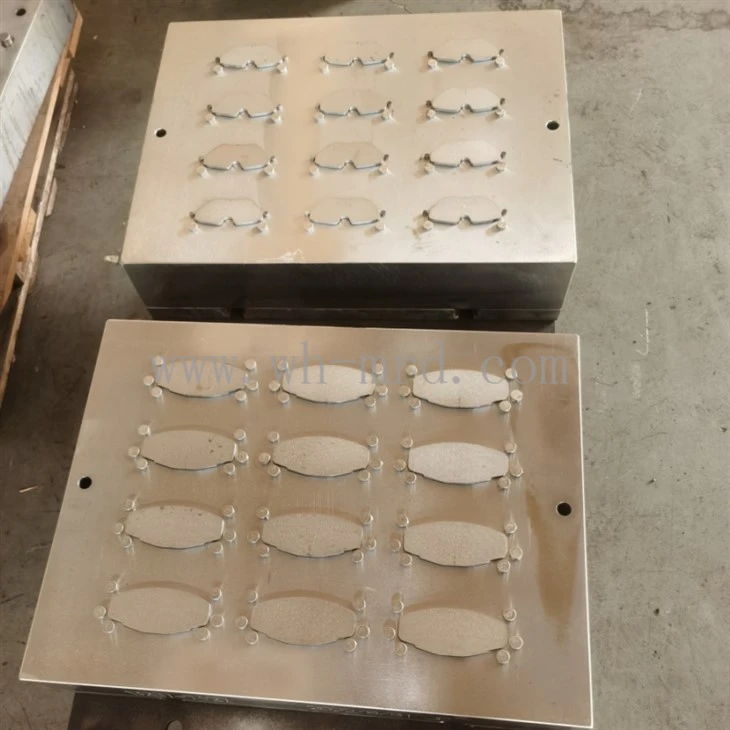

2.The disc brake pad mould is suitable for lower-cylinder presses and is easy to operate.
3.The automotive brake pad mould uses a hot-pressing, one-time forming process, which offers the advantages of high production efficiency and reduced labor requirements.
4.The mould undergoes integral heat treatment, with a hardness of HRC38–42.
5.The automotive brake pad mould uses pin positioning to improve efficiency. Slotting or chamfering can be added according to customer requirements, while also appropriately reducing raw material waste.
Product process
* Preheating: The mold is first preheated to a specified temperature using heating tubes on the press machine.
* Loading: The back plate is placed on the bottom mold, and the mixed brake pad materials are poured into the cavities of the middle mold.
* Mold closing and hot pressing: The main cylinder moves upward to apply the set pressure. Under high temperature and pressure, the raw materials begin to shape and gradually form the final brake pad structure.
* Holding cycle: The system performs venting and then applies upward pressure until the end of the holding cycle, allowing the material to cure.
* Mold removal: After curing is complete, the mold is opened and the finished brake pads are removed.
Our service
--We have extensive experience with OEM projects.
--We can customize special moulds and machines according to customer requirements.
--We provide technical support for assembly.
--A wide variety of types available with prompt delivery.
--Advanced production equipment and techniques.
--Competitive factory-direct pricing combined with excellent service.
--High-quality testing equipment with 100% inspection of critical components.
