Working Principle
It mimics the inertial movement of a vehicle while in operation. Using a driving mechanism, it accelerates the rotating components linked to the brake to a specific rotational speed. Subsequently, the brake is engaged, and various parameters during the braking process are measured.
These measured parameters include braking distance, braking time, braking torque, and braking deceleration, among others. Through analyzing these data, we can comprehensively assess the braking efficiency, stability, and reliability of the brake system.
Product parameters
|
Purpose |
Friction and wear performance test for lightweight car brakes. |
|
Test object |
Vehicle hydraulic disc/drum brake assembly or brake sheet with a load of 3.5 tons or less |
|
Executable standards |
QC/T 564, QC/T479, QC/T239, QC/T237, JASO C406, SAEJ212, SAEJ2522, ECER90, ISO 1157, AK Master, VW-TL110, etc. |
|
Test projects |
1. Brake brake performance test(including performance, thermal decay, recovery, durability, drag torque, etc.). 2. Test of parking braking performance. 3. Water spray brake test. 4. Static test |
|
Maximum speed of the spindle |
Maximum speed of the spindle |
|
Maximum speed of the spindle |
5000 N M |
|
Inertial range |
5.4-260 kg.m2 |

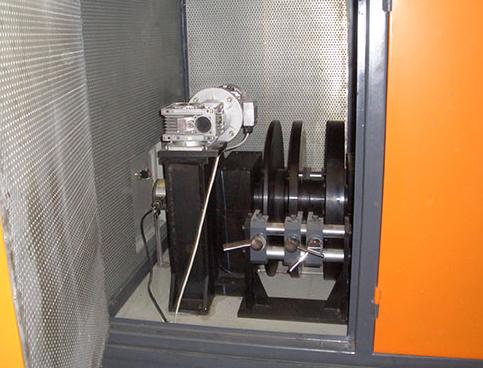

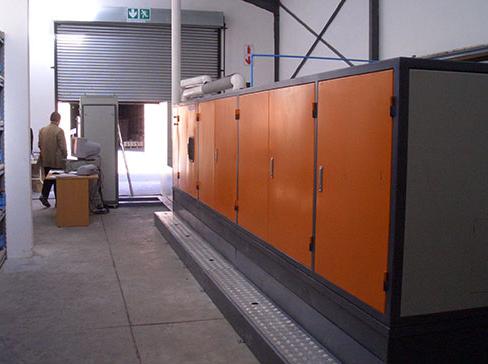

The Brake Inertia Test Bench serves to evaluate the friction and wear characteristics of light-vehicle brakes and brake pads.
Application
Automotive Industry
Automobile manufacturers use the Brake Inertia Test Bench to test newly designed brakes, ensuring they meet vehicle braking requirements.
Rail Transportation Field
Rail transit vehicles are large and fast-moving, so their brake performance requirements are strict. The inertia test bench can simulate train braking under different speeds and loads, providing data for brake design and optimization.
Construction Machinery Industry
For construction machinery like loaders and cranes, brake reliability is crucial as they work in harsh conditions. The inertia test bench simulates their working conditions and tests brake performance under heavy loads and frequent braking.
