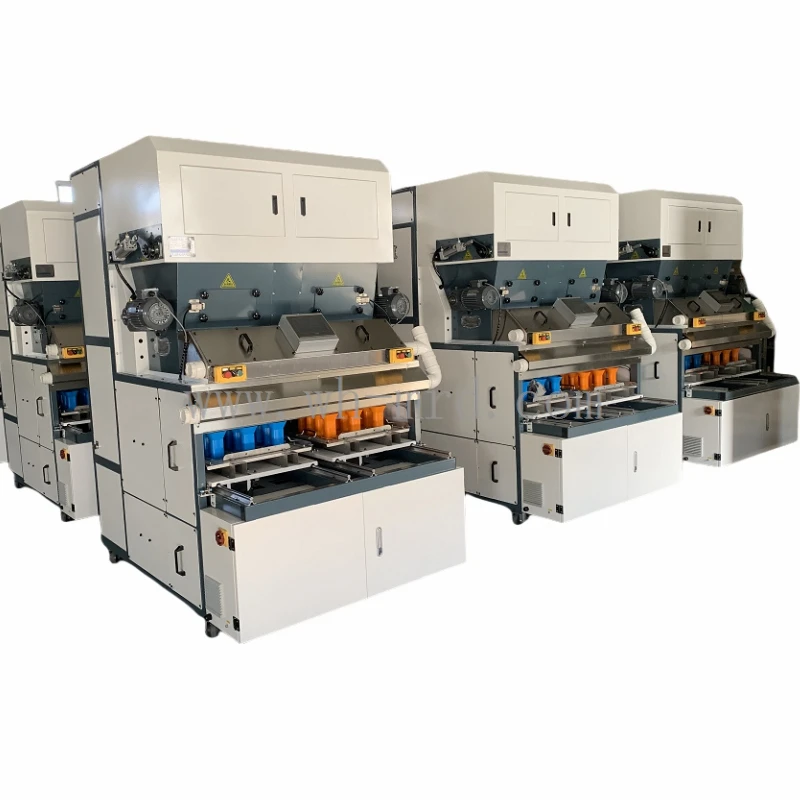

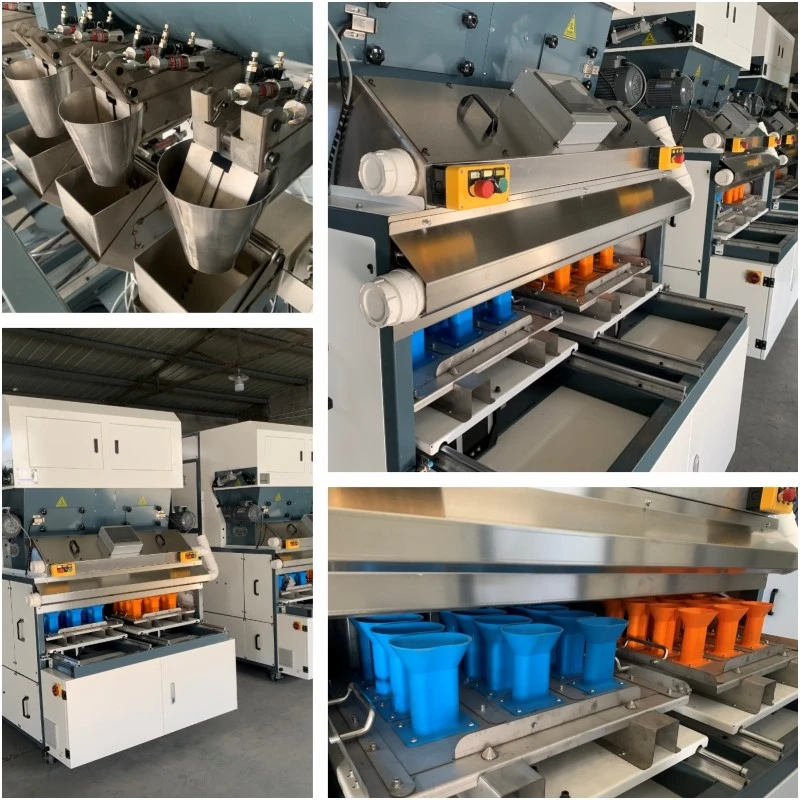

The Automatic Powder Weighing Machine is purpose-built for the precise measurement of friction materials in brake pad manufacturing. Designed with advanced automation and intelligent controls, this machine plays a critical role in achieving consistency, improving efficiency, and reducing errors in large-scale production environments. It is widely adopted in brake pad plants focused on delivering high-performance, quality-assured products.
💡 Ideal For
Brake pad manufacturing plants
Friction material processing
Automotive OEM and aftermarket production lines
Product features
🧪 Dual Independent Mixing Bins
Equipped with two separate mixing bins (Bin A and Bin B) for simultaneous or independent operation, supporting continuous and uninterrupted weighing.

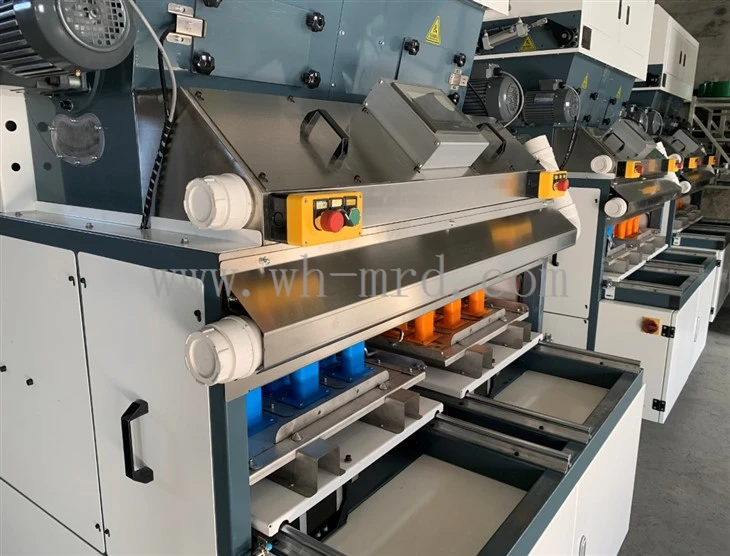

⚖️ Dual Feeding Sliding Tables
Dual-mode sliding tables enable flexible transitions between single and double operation modes to match production needs.

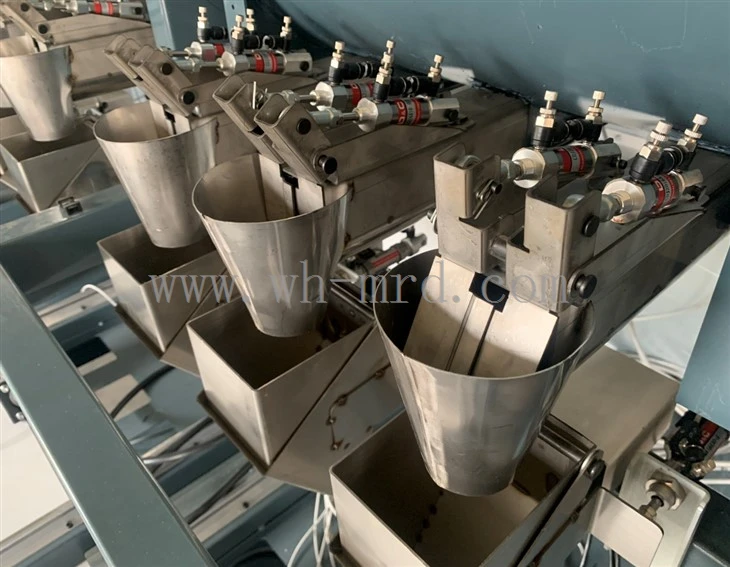

🔁 3+3 Weighing Station Distribution
Six weighing stations-three beneath each bin-provide high-throughput functionality and simultaneous multi-station weighing.
❌ Automatic Rejection of NG Weighing
Built-in material discarding mechanism rejects out-of-tolerance batches automatically, ensuring only accurate doses are passed forward.
🔄 Upgraded Spiral Feeding System
Features a robust and refined spiral feed design for smoother material flow, reduced clogging, and reliable dosing performance.
📦 Lifting Feed Mechanism
Motor-chain lifting structure with automatic tilting enhances stability, simplifies material handling, and increases overall reliability.
🔐 Sealed Silo Design
A dedicated sealing mechanism helps prevent moisture intrusion during weighing, preserving friction material quality.
🔔 Air Pressure Monitoring System
Equipped with high-sensitivity sensors. If air pressure drops below safe levels, the system halts and alerts the operator for maximum safety.
Product Parameters
|
Automatic weighing machine for brake pad friction materials |
|
|
Max.weighing |
≤200g (ceramic formulation) |
|
Min.weighing |
≥15g |
|
Weighing precision |
0.1-0.5g |
|
Production Rate |
70S/per set of slide(12 cavities) |
|
Maximum travel of Y axis |
600mm |
|
Maximum speed of Y-axis |
100mm/s |
|
Workbench operating height |
750mm |
|
Mixing and deceleration motor power |
400W |
|
weight |
Approx. 0.5T |
|
Size |
1.75m*1.45m*2.21m |
Advantages
📊 Intelligent Multi-Station Control
Six individually programmable weighing stations allow custom dosing and operation flexibility.
🎯 Anti-Waste Sensor System
Each station includes a smart sensor to detect if a cup is in place. If absent, no material is released-preventing unnecessary loss.
⚡ Boosts Production Efficiency
Replaces manual weighing with a fast, automated solution, increasing output while maintaining accuracy.

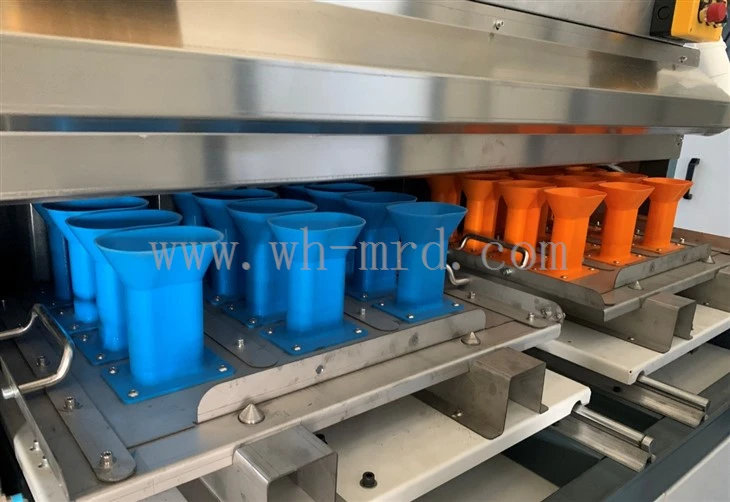

⏱️ Simplified Material Transfer
Materials are dropped directly into the mold simultaneously by shaking the cup-no need to pour one by one.

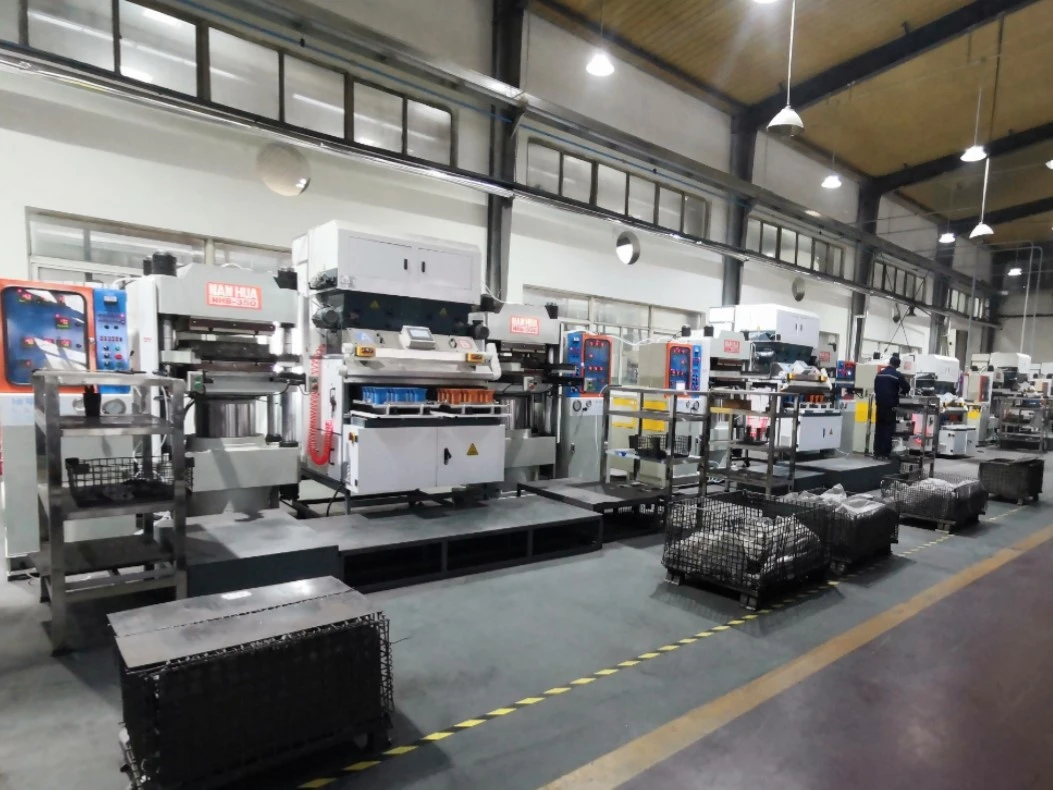

Our Factory
