Product instruction

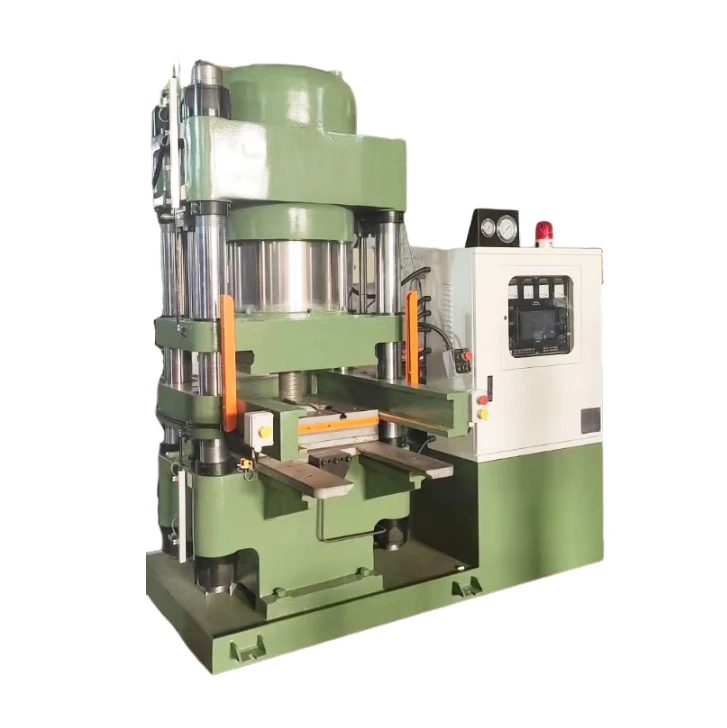

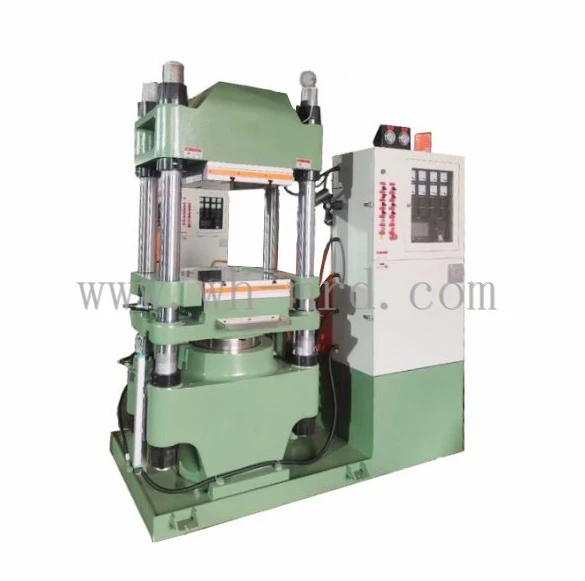

Hot Press for Brake Pads
The Hot Press for Brake Pads is a specialized hydraulic press designed for the efficient production of brake pads used in motorcycles, passenger cars, commercial trucks, and trains.
Technical parameters
|
Model |
MRD-BM200T |
MRD-BM300T |
|
Clamping force |
2000KN |
3000KN |
|
Clamping Stroke |
400mm |
400mm |
|
Rapid clamping speed |
≥60mm/s |
≥60mm/s |
|
Heating plate size |
600mm x 500mm |
600mm x 500mm |
|
Heating plate size |
500mm~560mm |
500mm~560mm |
|
Fast cylinder pressure |
63KN |
63KN |
|
Release cylinder pressure |
63KN |
80KN |
|
Motor power |
7.5KW |
7.5KW |
|
Heating power |
18.6KW |
18.6KW |
|
External Dimension |
1600x1700x2100 |
1600x1700x2300 |
Manufactured product
