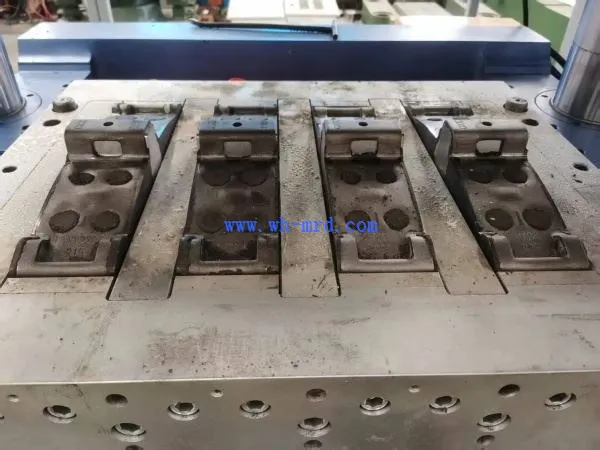

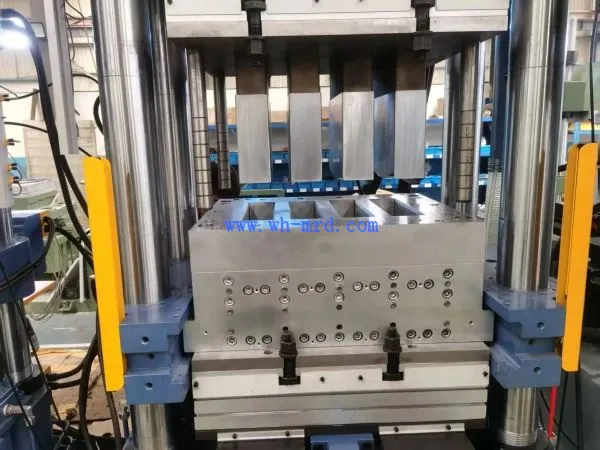

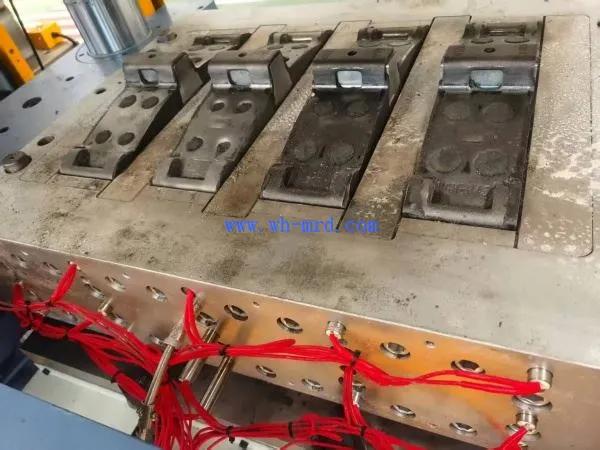

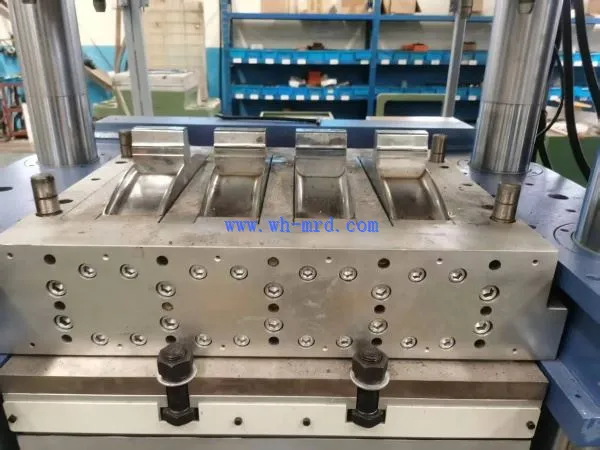

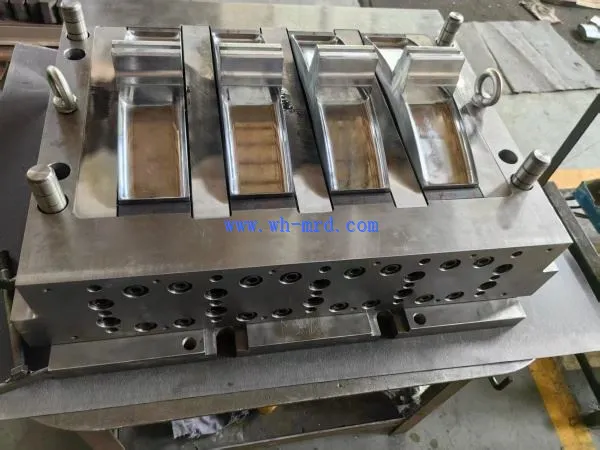

Brake Block Mold Description
Our train brake shoe mold is specially designed for the hot press forming of railway brake shoes and brake blocks. It is widely used in locomotive, wagon, subway and rail transit brake shoe production lines.
With high-temperature resistance, wear resistance and stable dimensional accuracy, our molds ensure consistent product quality and long service life under heavy-duty production conditions.
Key Features
*High-strength alloy steel with vacuum heat treatment for excellent wear & high-temperature resistance
*Precision CNC machining ensures tight tolerance & stable demolding
*Optimized runner & vent design for uniform density & low reject rate
*Durable structure supports long-term mass production
*Full OEM/ODM support: custom size, cavity, material, and surface treatment
|
Item |
Details |
|---|---|
|
Product Name |
Train Brake Shoe Hot Pressing Mold / Railway Brake Block Mould |
|
Model Number |
Customized according to customer drawings, OE number or sample specifications |
|
Material |
Optional: 45# Steel, 12CrMoV, Cr12MoV, H13 Alloy Tool Steel, SKD11 (all high-strength, wear-resistant materials, customizable based on production needs) |
|
Processing Technology |
1. Raw material inspection → 2. CNC Turning & Milling → 3. Precision Grinding → 4. Vacuum Heat Treatment (quenching + tempering) → 5. EDM/WEDM (for complex structures) → 6. Polishing & Deburring → 7. Assembly → 8. Pressure Testing & Trial Molding → 9. Final Inspection → 10. Packaging |
|
Cavity Type |
Single Cavity / Multi-Cavity (1-4 cavities optional, customized according to production capacity) |
|
Dimensional Tolerance |
±0.01mm - ±0.05mm (precision adjustable according to product requirements) |
|
Working Temperature |
200℃ - 500℃ (stable performance under high-temperature hot pressing conditions) |
|
Service Life |
500,000 - 1,200,000 shots (depends on material, processing technology and usage environment) |
|
Application |
Hot-press forming of brake shoes for railway locomotives, freight wagons, passenger cars, subways, light rail vehicles, EMUs and other rail transit vehicles |
|
MOQ |
1 Set (accept small batch orders for trial production) |
|
Sample Service |
Available (sample lead time: 15 days, sample fee refundable after formal order) |
|
Certification |
ISO 9001, CE (can provide customized certification according to customer requirements) |
|
Warranty Period |
12 Months (free repair or replacement for non-human damage; lifelong maintenance service) |
Application
Our train brake shoe mold is widely used in the production of brake shoes for various rail transit vehicles, covering multiple scenarios:
Railway Locomotives: Diesel locomotives, electric locomotives, high-speed EMUs
Freight Wagons: Open wagons, box wagons, tank wagons, container wagons
Passenger Cars: Ordinary passenger cars, high-speed passenger trains
Urban Rail Transit: Subways, light rail vehicles, trams
Special Rail Vehicles: Railway maintenance vehicles, engineering vehicles, etc.
Why choose us
Professional Experience: 10+ years of experience in railway brake shoe mold manufacturing, serving 500+ customers worldwide, with rich experience in mold design, production and after-sales.
Advanced Equipment: Equipped with a complete set of advanced machining equipment and testing equipment, ensuring high precision and stable quality of molds.
Strict Quality Control: Strict quality control system from raw materials to delivery, 100% inspection before shipment, ensuring that each mold is qualified.
Strong Customization Capability: Professional technical team can provide customized solutions according to customer needs, meeting various complex requirements.
Competitive Price: Factory direct supply, no middlemen, providing competitive prices while ensuring quality.
Fast Delivery: Efficient production team and perfect supply chain, ensuring that the mold is delivered on time according to the agreed time.
Reliable After-Sales: 24/7 online technical support and lifelong maintenance service, solving your worries.
