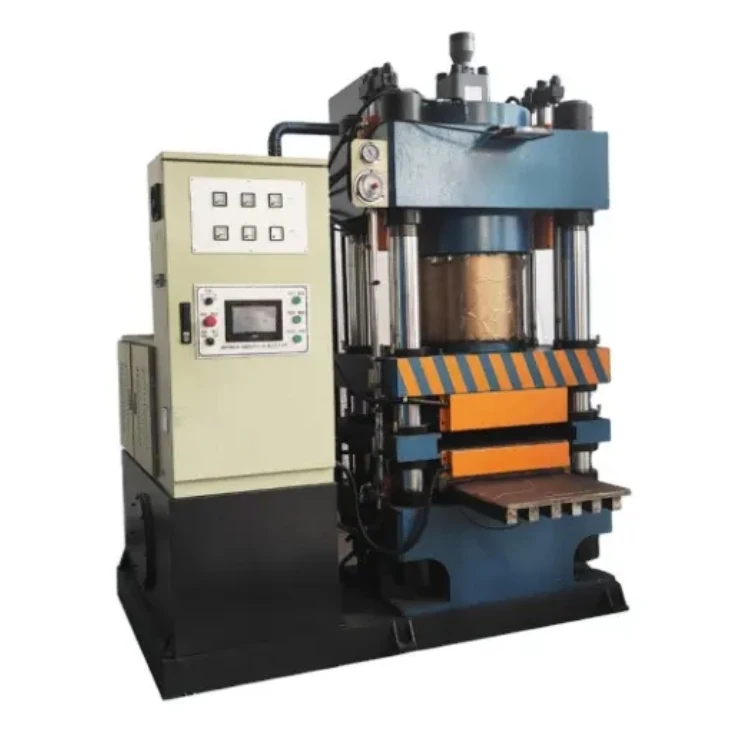

Brake pad heat press machine
Merido's Brake Pad Heat Press Machine is a high-performance hydraulic press specifically engineered for the production of brake pads across a wide range of industries-from automotive to metallurgy.
Technical parameters (can be customized according to customer needs.)
|
Model |
MRD-BM100T |
MRD-BM150T |
MRD-BM200T |
|
Clamping force |
1000KN |
1500KN |
2000KN |
|
Clamping Stroke |
400mm |
400mm |
400mm |
|
Rapid clamping speed |
≥60mm/s |
≥60mm/s |
≥60mm/s |
|
Heating plate size |
400mm x 350mm |
500mm x 450mm |
600mm x 500mm |
|
Heating plate size |
500mm~560mm |
500mm~560mm |
500mm~560mm |
|
Fast cylinder pressure |
50KN |
50KN |
63KN |
|
Release cylinder pressure |
50KN |
50KN |
63KN |
|
Motor power |
5.5KW |
5.5KW |
7.5KW |
|
Heating power |
8.4KW |
10.8KW |
18.6KW |
|
External Dimension |
1500x1500x1700 |
1500x1600x1700 |
1600x1700x2100 |
Product features
* The brake pad heat press machine is the most widely favored kind of press equipment. It is utilized for manufacturing both original equipment (OE) brake pads for passenger cars and commercial vehicles.
* Sturdy Build: The upper and lower beam structures, along with the sliding components, are crafted from resilient cast steel. This material choice guarantees extended service life and consistent, trustworthy operation.
* Available in both 8 - cylinder and 4 - cylinder configurations, these machines are designed based on the varying dimensions of brake pads and the specific curing pressure demands of different formulations.
Hot press machine's characteristics
🔹 High-Efficiency Output
- Capable of producing up to 300 brake pads per hour
🔹 Full Automation Ready
- Options for automatic weighing and pressing systems
- Customizable to meet specific production needs for brake pad formulations and sizes
🔹 Customization Options
- Available in multiple tonnages: 200t / 315t / 400t and more
- Tailored molds, automation, and layout to match your facility and workflow
🔹 After-Sales Support & Warranty
- Includes 1-year warranty on PLC, pressure vessels, and major components
- Supported by experienced engineers for installation, training, and technical troubleshooting
