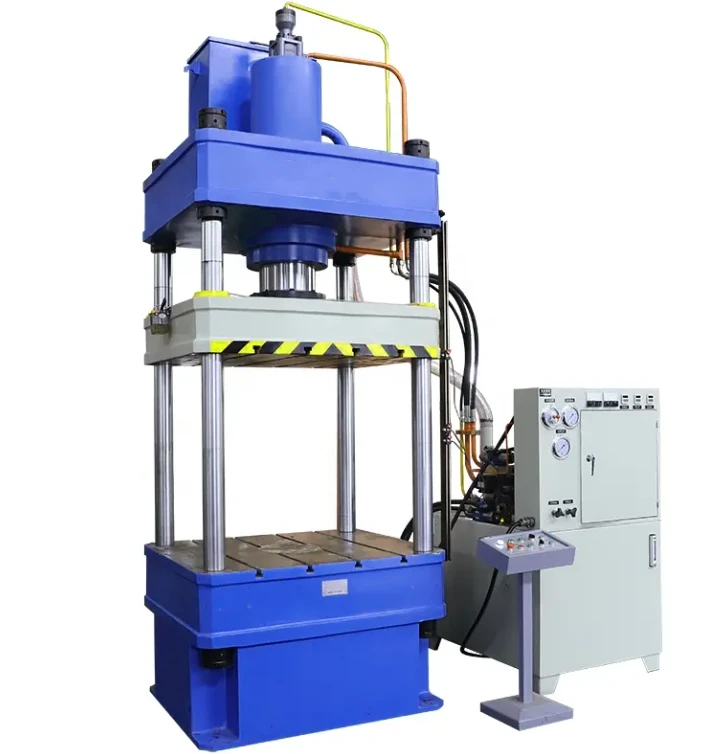

200 Tons Hydraulic Press Machine
This high-performance 200 Tons Hydraulic Press Machine is built for heavy-duty applications across a variety of industries. Engineered with precision and durability in mind, it ensures consistent and efficient forming of both metallic and non-metallic materials.
Products Features
* The four columns are made of premium round steel, surface-hardened through high-frequency treatment and then precision-ground and electroplated, ensuring excellent wear resistance and long service life.
* Features a rapid descending speed of the moving bolster, significantly improving production output.
* Pressure, stroke, and pressurizing time can all be adjusted to meet specific processing requirements, offering great flexibility for diverse applications.
* Integrated with a PLC programming circuit and touch panel operating system for easy, intuitive operation and reliable process control.

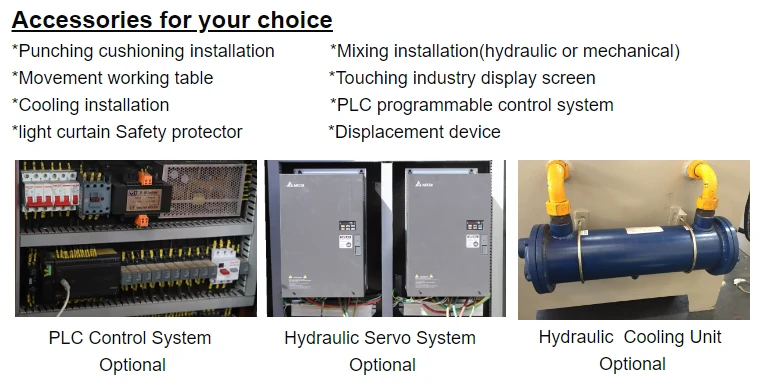

* Customizable with add-ons such as protective shields, LED lighting, and infrared safety grating, enhancing safety and functionality.
Technical parameters
|
Specification |
Unit |
200T-A |
200T-AK |
200T-B |
200T-BK |
200T-C |
200T-CK |
|
|
Nominal force |
KN |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
|
|
Ejecting force |
KN |
35 |
35 |
35 |
35 |
35 |
35 |
|
|
Max. pressure of liquid |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
Stroke of slider |
mm |
400 |
600 |
400 |
600 |
400 |
600 |
|
|
Max. opening height |
mm |
800 |
1000 |
800 |
1000 |
800 |
1000 |
|
|
Working table size |
mm*mm |
660x660 |
660x660 |
800x800 |
800x800 |
1000x1000 |
1000x1000 |
|
|
Ejecting stroke |
mm |
250 |
250 |
250 |
250 |
250 |
250 |
|
|
Speed of slider |
Idle speed |
mm/s |
30 |
110 |
30 |
110 |
30 |
160 |
|
Working speed |
mm/s |
6-12 |
6-12 |
6-12 |
6-12 |
6-12 |
6-12 |
|
|
Return speed |
mm/s |
20 |
100 |
20 |
100 |
20 |
100 |
|
|
Motor power |
KW |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
|

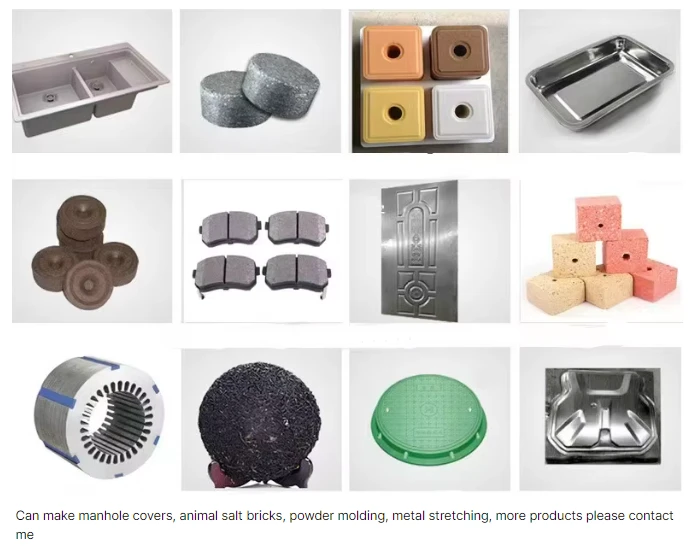

Application
200 Tons Hydraulic Press Machine mainly applies to:
metal non-metallic materials(watches, metal products, bicycles, motorcycles,tableware, kitchen utensils, automobiles, electrical appliances,rubber, grinding wheel, buttons,gold and silver jewelry, ceramics, powder metallurgy, etc.)
Our Service
Pre-Sale Service
Our expert design team will work with you to analyze production needs and provide consultation and equipment solutions, helping reduce investment costs and energy consumption.
Production Process Service
Every task entrusted to Merido is executed by a professional management team in strict accordance with national quality standards, ensuring attention to every detail.
After-Sales Service
Merido's after-sales team is experienced and responsive. We promise to repair or replace any damages covered under warranty free of charge, giving you complete peace of mind.
