H Type Power Manual Press
1. Single machine implementation for multiple uses.
2. By using Italian CNC and CBZ oil pump, two pumps can be combined to supply oil, compared to a traditional hydraulic machine, the energy saving is more than 60%, and the efficiency is increased by 2-3 times.
3. The structure is simple and lightweight due to its low volume but high pressure.
4. Moving the workbench up and down significantly increases the opening and closing height of the machine.
parameters of the Press
|
Model |
MRD-10 |
MRD-20 | MRD-30 |
TPS-50 |
TPS-63 |
|
Capacity (kn) |
100 |
200 |
300 |
500 |
630 |
|
Machine Pressure (MPa) |
25 |
25 |
25 |
25 |
25 |
|
Stroke ( mm) |
200*200 |
200*250 |
200*270 |
220*405 |
220*405 |
|
Workbench Size ( mm ) |
260×300 |
260 x 300 |
300×400 |
480×360 |
400 x 500 |
|
Overall Dimension (mm) |
1000x45x1200 |
1160x550×1500 |
1160x550xl600 |
1500x650x1950 |
1500x650x1950 |
|
Weight ( kg) |
220 |
320 |
420 |
980 |
1020 |
Application

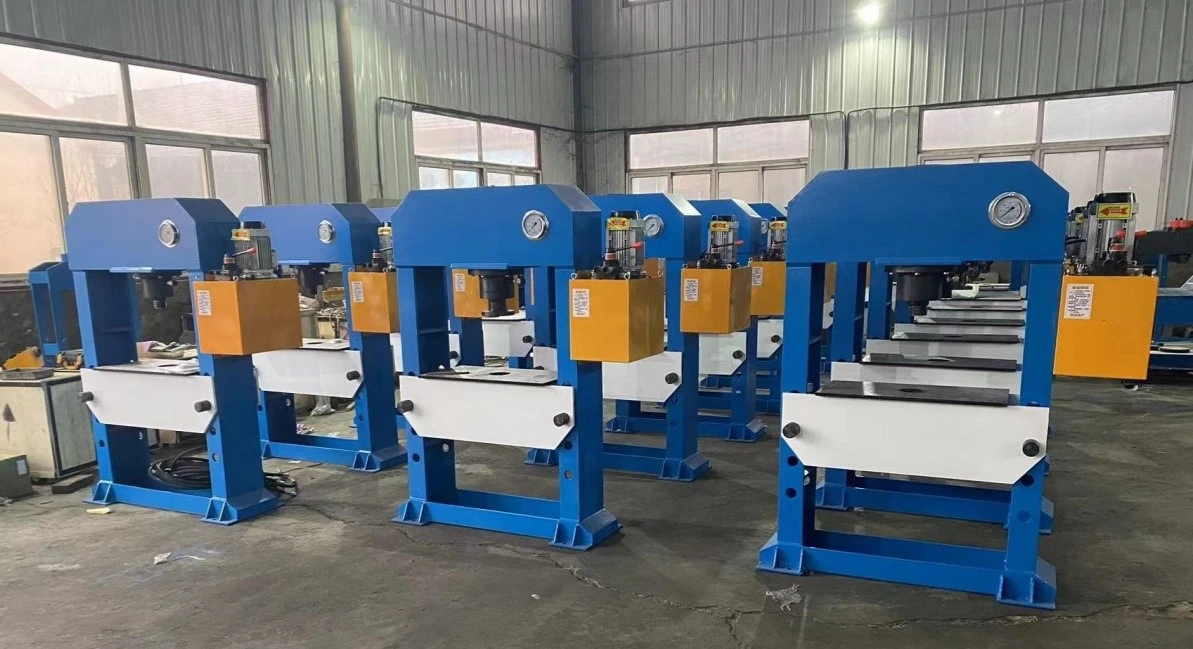

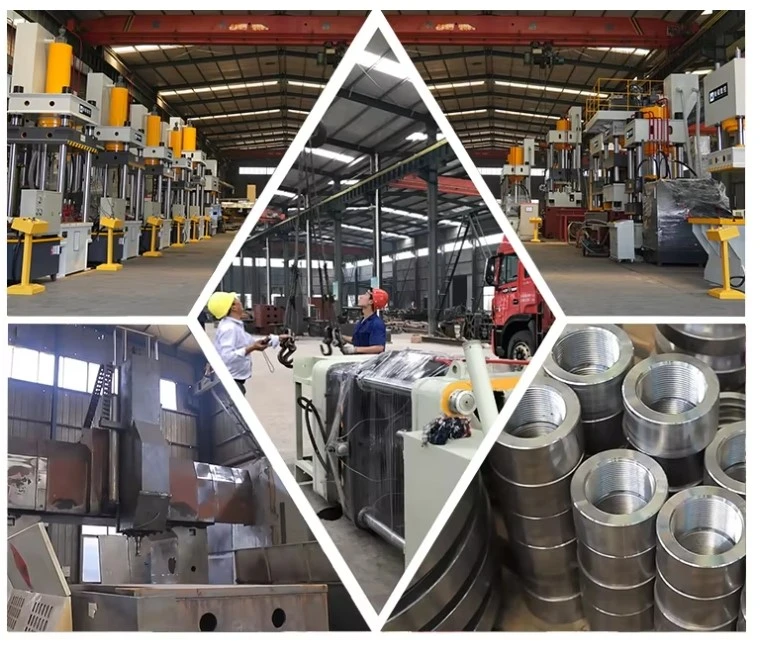

Our factory
Our Service
1. The technical specialist is available for training and installation at the customer's enterprise.
2. One year warranty . We will send you machine part defects (not related to human factor) for free.
3. Online services by sending emails and videos, or making calls.
