Single Arm Hydraulic Press
The Single Arm Hydraulic Press, commonly referred to as a C-Type Hydraulic Press, features a compact and ergonomic structure that occupies minimal floor space while delivering maximum productivity. This press is engineered for tasks such as pressing, stamping, calibrating, bending, and riveting, making it an essential tool in sectors like automotive, hardware, electrical appliances, bearings, and mold manufacturing.
Technical parameters
| Single Arm Hydraulic Press |
50T
|
63T
|
100T
|
Unit
|
|
Nominal Pressure
|
500
|
630
|
1000
|
Kn
|
|
Maximum working pressure of liquid
|
25
|
25
|
25
|
Mpa
|
|
Slider size
(front and back * left and right)
|
400*400
|
500*400
|
600*500
|
mm
|
|
Slide stroke
|
400
|
400
|
400
|
mm
|
|
Max opening height
|
600
|
600
|
600
|
mm
|
|
Descent speed
|
20-30
|
20-30
|
20-30
|
mm/s
|
|
Return speed
|
25-30
|
25-30
|
25-30
|
mm/s
|
|
Working table size (front and back*left and right)
|
600*500
|
700*500
|
800*600
|
mm
|
|
Motor power (kW)
|
5.5
|
7.5
|
7.5
|
kw
|
|
Device size (L*W*H)
|
1000*900*1960 | 1050*900*2000 | 1100*1000*2200 |
mm
|
|
Voltage
|
380v/220v/415v (Optional) | 380v/220v/415v (Optional) | 380v/220v/415v (Optional) |
|
|
Weight
|
1.5
|
1.7
|
2.3
|
T
|

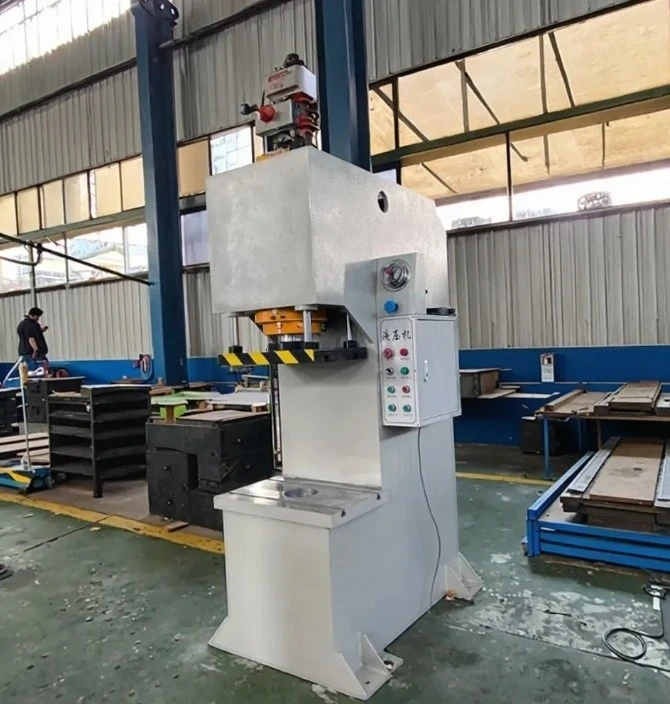

Detail images
Product features
Compact C-Type Structure
-- Open three-sided frame for easy workpiece handling
-- Simplified mold installation and replacement
-- Space-saving footprint
High-Precision Hydraulic Control
-- Advanced PLC control system for real-time adjustment
-- Precise pressure and stroke settings for consistent results
Enhanced Safety System
-- Dual-hand start mechanism
-- Emergency stop functionality for immediate shutdown
-- Optional photoelectric safety guard available
Energy-Saving & Low Noise
-- Optimized hydraulic circuit
-- Smooth and quiet operation
-- Reduced power consumption
User-Friendly Operation
-- Integrated control panel
-- Simple one-touch start
-- Minimal training required
Application
Single Arm Hydraulic Press
✔️ Bearing Assembly and Press Fitting
✔️ Metal Part Calibration, Forming, Punching
✔️ Small Mold Punching and Drawing
✔️ Electrical Component & Hardware Pressing
Optional Configurations
📊 Digital Pressure Display Gauge
🛡️ Photoelectric Safety Protection Device
❄️ Hydraulic Cooling System
⚙️ Quick Mold Change System
⚡ Servo Hydraulic System (for enhanced efficiency and control)
customer photos
Our Service
✔️ Custom equipment design and engineering solutions
✔️ Manufacturing of non-standard or customized presses
✔️ Technical training and operational guidance
✔️ Full supply of spare parts and accessories
✔️ Remote technical support and consultation
✔️ Tailored services based on your specific industry needs
