Automatic Orbital Riveting Machine

1. High-speed, low-effort riveting
2. Cleaner finish compared to welding or hammering
3. Ideal for mass production and precision work
4. Reduces manual errors and labor fatigue
5. Accepts customization based on your needs

Send Inquiry

Description

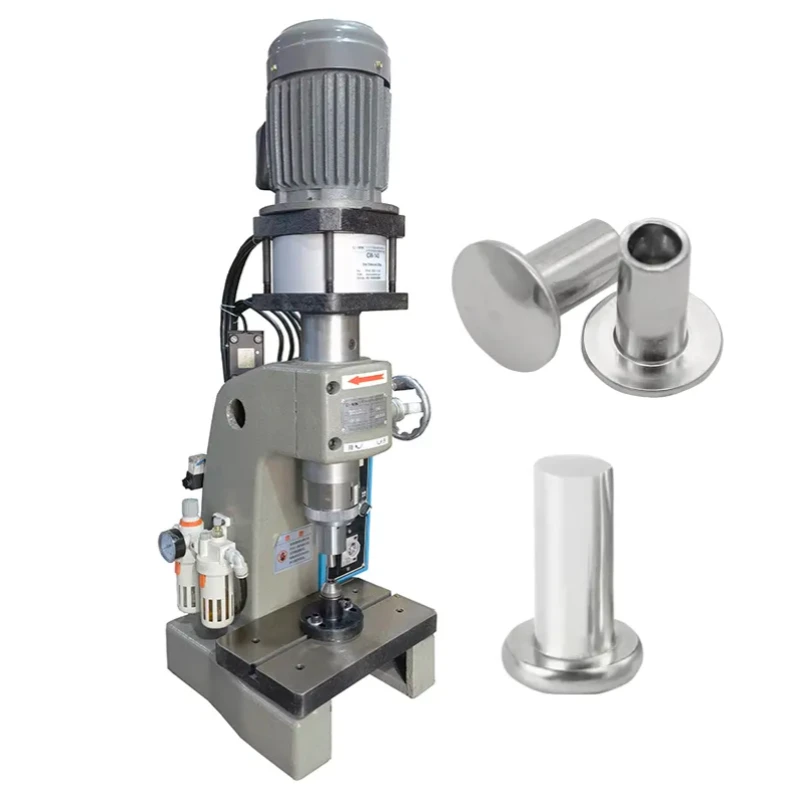

Automatic Orbital Riveting Machine

The Merido Bench-Type Automatic Orbital Riveting Machine is engineered for efficient, high-precision riveting of solid, semi-tubular, and hollow rivets. Ideal for metalworking, automotive, and general assembly applications, it ensures a smooth finish, fast operation, and minimal surface damage while dramatically reducing labor and processing time.

automatic Orbital Riveting Machine

Products features

⚡ Fast & Efficient

* Rivet cycle completed in 0.5 seconds

* Boosts production speed and throughput

🔩 Superior Compatibility

* Rivets up to 8mm in diameter

* Works with solid, hollow, and semi-tubular rivets

* Compatible with steel, iron, and more

🔇 Smooth & Quiet Operation

* Produces a smooth metal surface without noise or impact marks

* Reduces deformation and surface stress

🧰 Durable Bench-Type Design

* Vertical structure ensures operator comfort and control

* Foot pedal activation for hands-free use

* Compact, workshop-friendly footprint

🛠️ Precision Engineering

* Double air regulators for controlled speed & pressure

* Air filter to prevent moisture damage

* High-grade components for stable, consistent performance

Product	Automatic Orbital Riveting Machine
Operation Type	Pneumatic, Orbital
Rivet Type	Solid, Hollow, Semi-tubular
Max Rivet Diameter	8mm
Riveting Time	0.5 seconds
Structure	Bench-Type Vertical
Activation	Foot Pedal
Air System	Dual Regulators + Filter
Application	Automotive, Sheet Metal, Manufacturing

Products parameters

Model	CW-141	CW-143
Max. Capacity	Φ5(Solid core) ~Φ10(hollow)	Φ7(Solid core) ~Φ14(hollow)
Riveting Press	800kg	1100kg
Stroke	35mm	35mm
Throat Depth	120mm	130mm
Air Source	2~7bar	2~7bar
Power	370w	750w
Weight	125kg	135kg
