Machine Overview
Our Pallet Wrapping Machine is a specialized packaging device designed to fasten palletized items using stretch film, combining stability, high efficiency and cost-effectiveness.Featuring both automatic and manual operation modes, it boasts stable performance and simple operation, which can satisfy the various packaging requirements of different sectors.
Products Parameter
|
Turntable Size
|
Turntable Speed
|
Maximum wrapping speed
|
Maximum pallet size
|
|
1650mm
|
0-12RPM(Adjustable)
|
20-30 loads/hour
|
1.1*1.2 m
(can customize )
|
|
Max Load Weight
|
Power Supply
|
Machine Size(L*W*H)
|
Top plate scope
|
|
2000KG
|
110/220/380V 50HZ
|
2545x1650x2485mm
|
1400-2000mm
|
|
Customization:turntable size / column/ functions can be customized
|
|||
Turntable System
Adopts high-strength slewing bearing or dual-chain drive turntable, ensuring stable rotation with low noise (≤75 dB(A)) and low vibration, even when carrying heavy or unbalanced loads. The turntable surface is anti-slip, preventing pallets from sliding during wrapping; automatic return function improves operation efficiency.
Pre-stretch Film Carriage
Professional pre-stretch film carriage design, which can stretch the film to 250%-350% of its original length, maximizing film coverage while minimizing material waste. The film tension is adjustable, suitable for different types of goods (fragile, heavy, irregular), avoiding damage to goods due to excessive tension.
Control Panel
Equipped with Siemens PLC control system and touch screen operation interface, simple and intuitive, easy to learn and operate. Supports multiple programmable wrapping modes, memory function for common parameters, and intelligent alarm for faults, reducing maintenance costs and downtime.
Lifting Column
Double chain lifting structure, with frequency conversion adjustable speed, stable lifting and low wear. The integrated alloy aluminum column (optional) is integrally formed by 4000 tons of extrusion, solid and durable, with lifetime warranty available.
Safety & Maintenance
Built-in electricity protection device, emergency stop button, and film carriage bottom safety sensor, ensuring operator safety during operation. Service-friendly design places all maintenance points within easy reach, simplifying maintenance and extending machine service life.

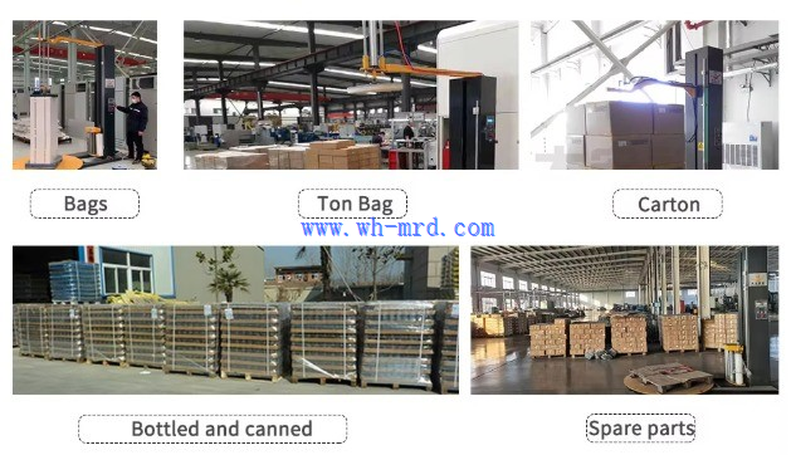

Application
Our Pallet Wrapping Machine is extensively applied in all industries requiring palletized packaging, effectively addressing the common pain points such as unstable packaging, high labor expenses and excessive stretch film consumption:
Logistics & Warehousing:
It securely wraps palletized goods for long-haul transportation, effectively avoiding goods shifting and damage.
Food & Beverage:
It provides dust-proof and moisture-proof packaging for pallets of food, drinks and condiments, safeguarding product hygiene and quality.
Electronics Industry:
It protects fragile electronic products (such as computers and printers) from collision and static damage during transit.
Chemical Industry:
It wraps pallets of chemical raw materials, fertilizers and pesticides, preventing leakage and contamination issues.
Paper & Printing:
It wraps pallets of paper rolls, cartons and printed items, preventing deformation and damage.
Manufacturing:
It can be integrated into assembly lines for online wrapping, enhancing production efficiency and packaging consistency.
FAQ
1.Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.
2.What about your wrapping machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3.Can you send me the video to show how the machine work?
Certainly, we have made video of every machine. Pls. contact with us, we will send you machine video.
4.What about your installation service and sales service for wrapping machine?
1>Guarantee is 1 year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7 days. 2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine. 3>It is free to train your worker in our factory or in your side or by video.
