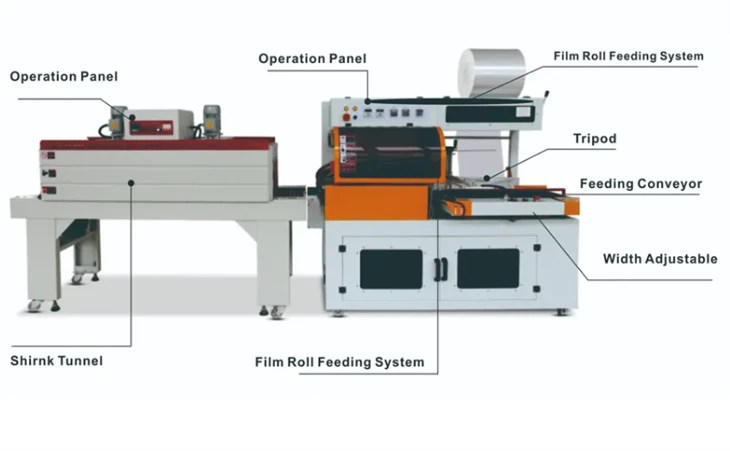

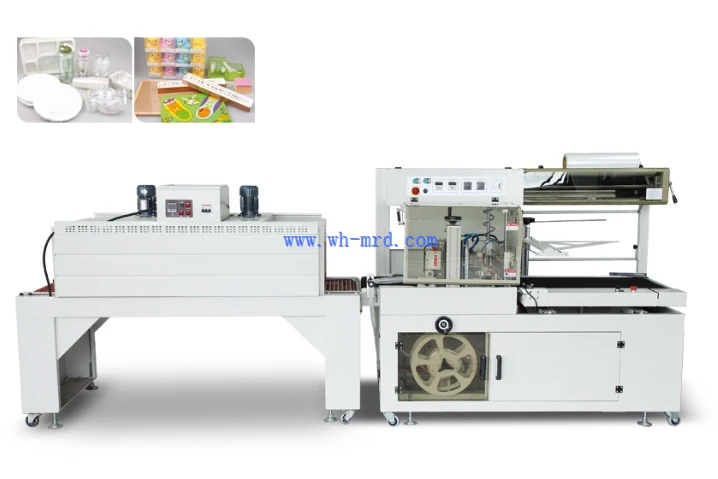

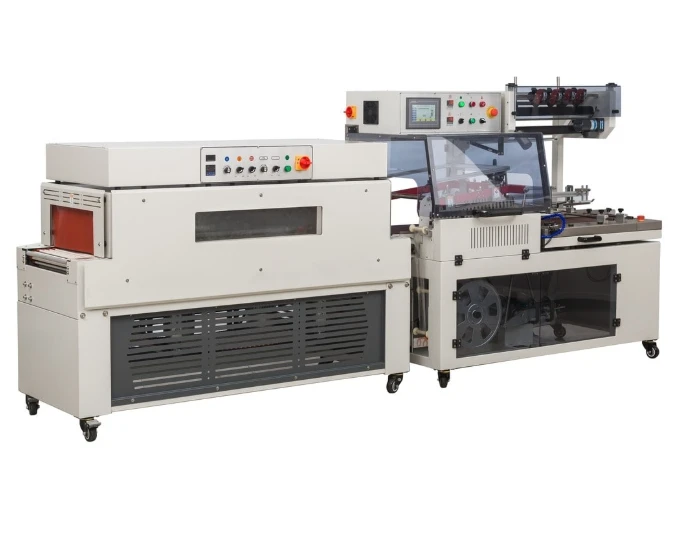

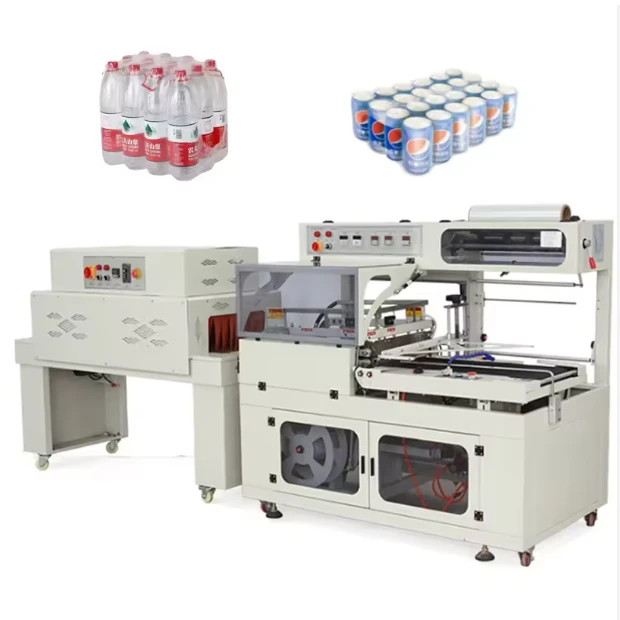

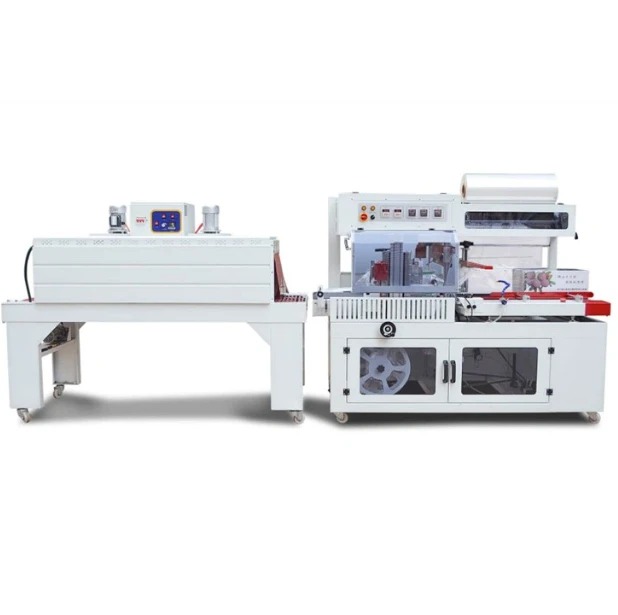

Reliable Heat Shrink Packing Machine for High-Quality Packaging
Designed for multi-industry packaging needs, our heat shrink wrap machine integrates wrapping, sealing, cutting and shrinking functions in one compact unit. Built with advanced PLC and servo drive systems, it guarantees reliable continuous operation, fewer failures and greatly improved packaging efficiency.
Machine TDS
|
Model |
BF450 Sealing &Cutting Machine |
BSP 4525 Heat Shrink Tunnel |
|
Film height |
Max.150mm |
|
|
packing rate |
25-35bags/min |
|
|
power |
220V 50/60HZ 1.35KW |
220V 50/60HZ 12.5KW |
|
machine size(L*W*H) |
1700*850*1450mm |
1700*750*1450mm |
|
Machine weight |
About 300kg |
About 250kg |
Application:Widely used in food, beverage, cosmetics, pharmaceutical, electronics, hardware, stationery industries.
Ideal for single or combined packaging of round bottles, square boxes, irregular items, etc.
✅ Precise Temperature Control: PID intelligent thermostat, temperature accuracy ±2℃; hot air circulation system for uniform shrinking, no wrinkles or burnt marks.
✅ Wide Compatibility: Suitable for POF, PVC, PE shrink films (15-150μm); handles various products like bottles, boxes, cosmetics, food, and daily necessities.
✅ High Efficiency: Packaging speed 500-3000 pcs/h (varies by model); fully automatic operation reduces labor cost, packaging rate up to 99.5%.
✅ Durable & Safe: Stainless steel 304 body; anti-cut safety clutch; photoelectric eye tracking for accurate sealing; emergency stop button for safety.
FAQ
1. Function & Adjustment
Q: Is it fully automatic?A: Full automatic and semi-automatic types are available.
Q: Can temperature and speed be adjusted?A: Yes, both temperature and conveyor speed are adjustable.
2. Custom & Operation
Q: Can you customize machine size?A: Yes, customized tunnel size and dimension are acceptable.
Q: Is it easy to operate?A: Simple operation, with English manual and guide video.
3. Voltage & Speed
Q: What voltage is available?A: 220V/380V 50/60Hz, custom voltage supported.
Q: What's the packaging speed?A: Adjustable speed, 500–3000 pcs/h based on product size.
4. After-sales
Q: Warranty terms?A: 1-year warranty, lifelong technical support.
Q: Technical support after purchase?A: Online remote guidance and video debugging available.
