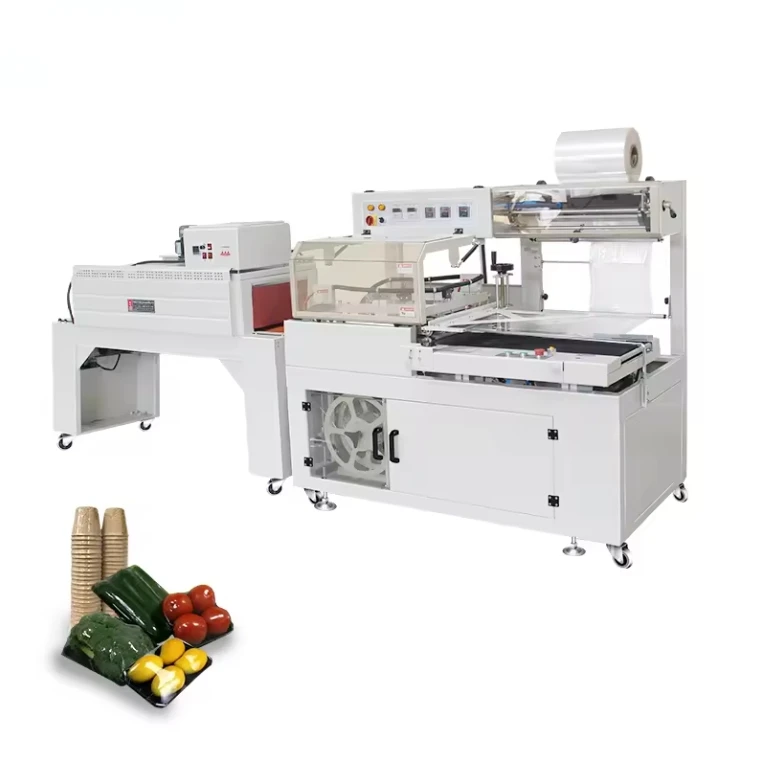

Heat Shrink Film Wrapping Machine
The Heat Shrink Film Wrapping Machine is a robust and easy-to-operate system designed for packaging products using heat-shrinkable film. It delivers a clean, tight wrap that enhances product appearance, provides protection, and improves shelf presence.
This machine is widely applied across industries, including toys, cosmetics, tools, food, stationery, daily goods, and electronics.
Product Parameters
|
450L Sealing and Cutting Machine
|
|||
|
Seal dimensions
|
560*440mm(support customized)
|
Power supply
|
220V/50HZ/60HZ
|
|
Machine dimensions
|
1750*900*1450mm
|
Packing speed
|
15-30bags/min
|
|
Packing height
|
<150mm
|
Pressure
|
4kg/cm2
|
|
Power
|
1.35KW
|
Weight
|
300kg
|
|

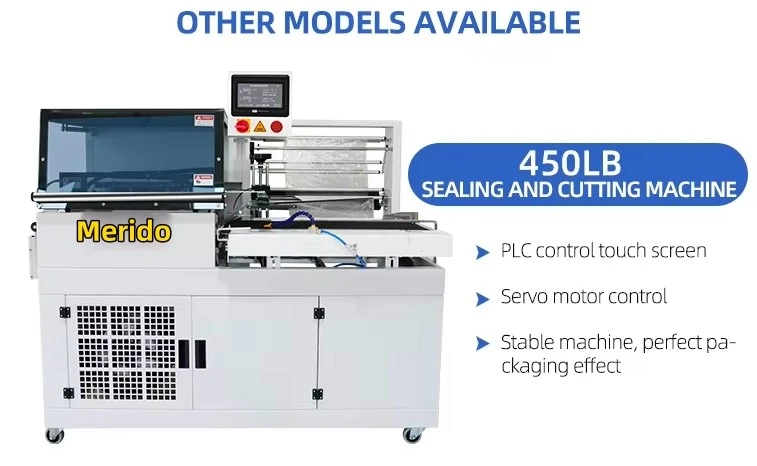

450LB High-end Sealing and Cutting Machine
|
|||
|
Supply voltage
|
220V 50-60Hz
|
Packaging height
|
POF (PVC, PE film can be customized)
|
|
power
|
1.35KW
|
Weight
|
300KG
|
|
Packaging speed
|
15-25 packs/min
|
Pressure
|
4KG/cm2
|
|
Seal dimensions
|
L450*W550MM
|
External dimensions
|
1700*1050*1450MM
|
|
Maximum packaging size
|
L+H<400MM
W+H<500MM |
Suitable for film thickness
|
0.015-0.06MM
|
|
MRD 4522 Heat Shrinker
|
|||
|
Tunnel size
|
1500*450*220mm
|
Machine Weight
|
130KG
|
|
Packing speed
|
0-10M/min
|
Loading
|
<30KG
|
|
Power
|
9.6KW
|
Applicable shrink film
|
POF/PVC/PP
|
|
Power supply
|
380V/50HZ
|
Machine size
|
1600*700*1300mm
|
Product features
✅ Wide Application Range – Suitable for packaging products of various shapes and sizes
✅ Economical & Efficient – Reduces material waste and increases productivity
✅ Reliable Sealing – Smooth, consistent, and secure sealing lines
✅ Integrated Safety – Built-in protection systems and alarms ensure safe operation
✅ Fully Automatic Operation – Offers a streamlined and labor-saving packaging process
Working Principle
🔁 1. Film Wrapping Stage
The Heat Shrink Film Wrapping Machine is first placed on a conveyor system, which delivers it to the wrapping station. Depending on product shape and packaging requirements, one of the following methods is used:
Three-Side Sealing: Film wraps the product from the bottom and both sides
Four-Side Sealing: Film encapsulates the product from all sides
Body Wrapping (Vacuum Fit): Ideal for irregular shapes - film is softened with heat, vacuumed onto the surface, and air is expelled to ensure a snug fit.
🔥 2. Heat Shrinking Stage
Once wrapped, the Heat Shrink Film Wrapping Machine enters the heat shrink tunnel, where hot air (120°C–200°C) is uniformly circulated the package. As the film is heated, it shrinks tightly around the product, forming a smooth, secure, and tamper-evident seal. This effect is due to the film's memory from the manufacturing process, which is reversed through thermal activation.
Application scenarios
Applications
🧸 Toys & Games
💄 Cosmetics & Personal Care
🍪 Food Packaging
🛠 Tools & Hardware
✏️ Stationery & Office Supplies
🔌 Electronics & Appliances
Structural composition
🛞 Conveyor System
Adjustable-speed belt for consistent product delivery to wrapping and heating stations
📦 Film Supply System
Includes film rolls and feeder rollers
Automatically feeds and positions the film for each product
Ensures precision and reduces waste

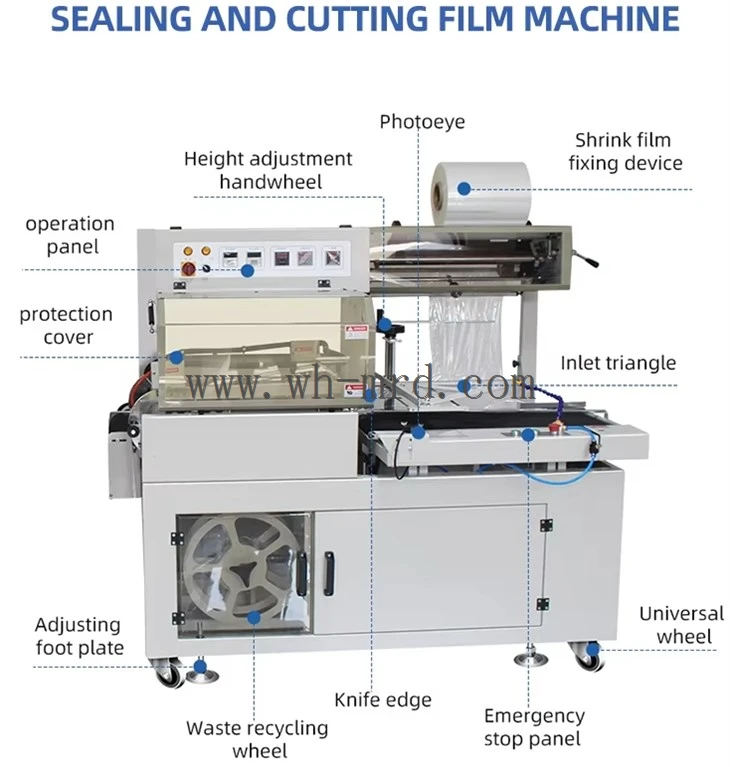

✂️ Sealing & Cutting System
Heat Sealing: Uses heat to bond film edges
Pulse Sealing: Delivers short bursts of high voltage to seal film quickly
Built-in blade cuts film precisely after sealing, prepping it for shrink tunnel entry

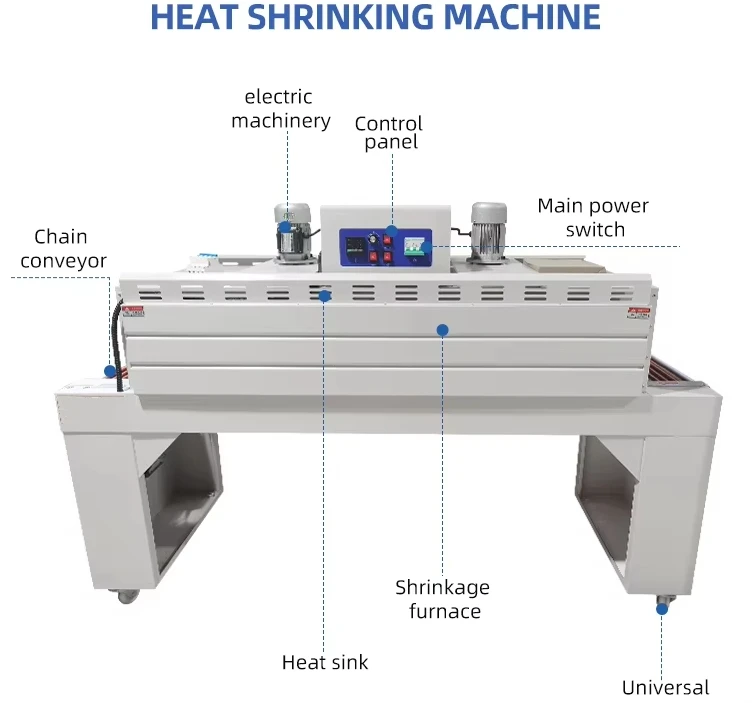

🌡 Heat Tunnel
Circulates hot air efficiently
Maintains consistent temperature control for perfect shrink results
Designed to accommodate various film types and product materials

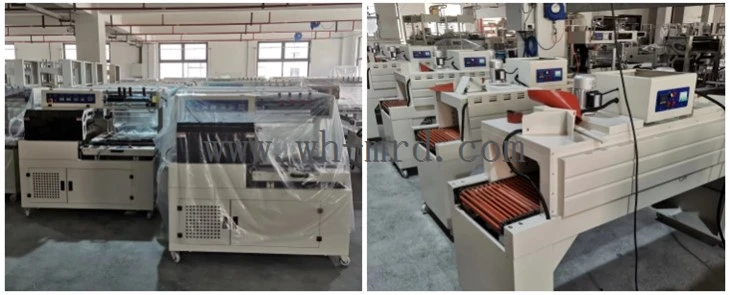

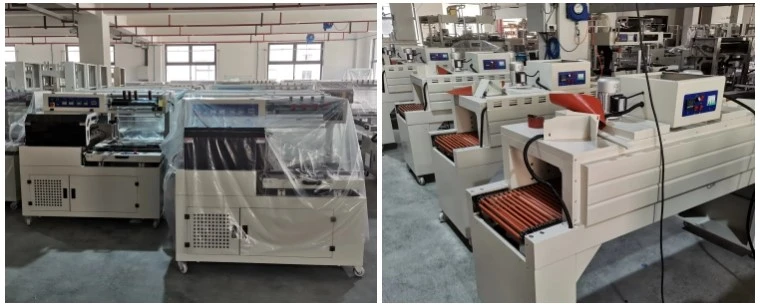

Factory Display
