Products Description

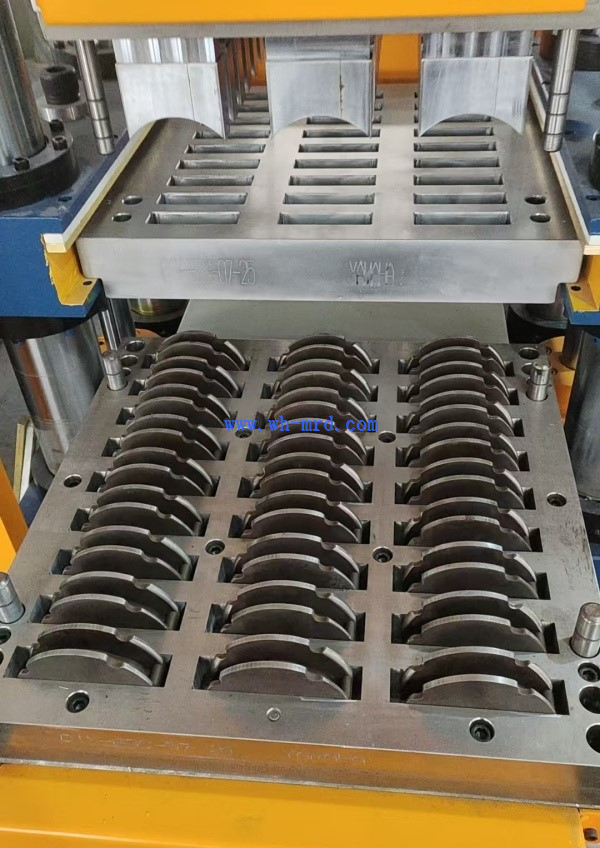

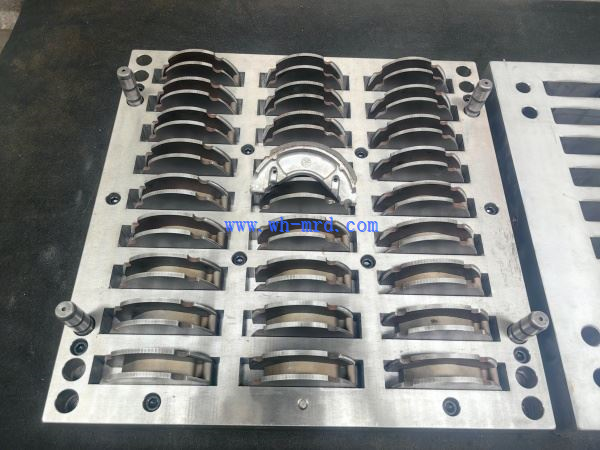

Specially developed for motorbike and scooter drum brake shoes, our quality molds adopt heavy-duty steel and accurate CNC fabrication. They keep stable forming status, free from warping, and deliver uniform density with great longevity. Complete custom solutions for cavity size, design and logo are provided for mass manufacturing.
Mold Features
Premium Mold Steel Material – Constructed from premium 45#, P20, or SKD11 steel with professional heat treatment, our molds feature high hardness, excellent wear resistance, and strong high-temperature stability, supporting consistent and long-term mass production.
High Precision Molding – Adopting full CNC machining and fine surface grinding with strict tolerance control, our molds guarantee uniform brake shoe dimensions, perfect flatness, and stable friction material density for every finished product.
Professional Two-Step Process – Designed for cold press forming and high-temperature vulcanization curing, this dual-process technology effectively avoids bubbles, cracks, and uneven bonding, delivering flawless and high-quality brake shoe outputs.
Multi-Cavity Customization – Available in multi cavity options to greatly boost production efficiency, increase daily output, and significantly lower your unit manufacturing cost.
Wide Compatibility – Fully adaptable to drum brake shoes for CG125, GN125, scooters, ATVs, and most universal motorcycle models, meeting diverse production needs.
Long Service Lifespan – Built with a robust and durable structural design, these molds can achieve up to 200,000–300,000 molding cycles under standard operating conditions for extended service life.
Full OEM & ODM Support – Custom mold drawing, cavity layout, engraving and size according to customer samples or 3D files.
|
Item |
Specification |
|---|---|
|
Product Name |
Motorcycle Brake Shoe Mold / Drum Brake Shoe Mould |
|
Mold Type |
Hot Press Mold / Vulcanizing Mold / Forming Die |
|
Mold Material |
45# Steel, P20, SKD11 (Optional) |
|
Cavity Quantity |
2 / 4 / 6 / 8 Cavities Customized |
|
Working Temperature |
140℃ – 180℃ Vulcanization |
|
Mold Lifespan |
200,000 – 300,000 Shots |
|
Application |
Motorcycle, Scooter, ATV Drum Brake Shoes |
|
Custom Service |
OEM, ODM, Custom Drawing & Sample Development |
|
Lead Time |
25–30 Working Days |
FAQ
Q1: What kind of brake shoes can this mold produce?
A: It is specially used for motorcycle & scooter drum brake shoes, compatible with NAO, semi-metallic friction lining materials.
Q2: Can you customize molds according to my samples or drawings?
A: Yes. We provide one-stop OEM & ODM service. You can send us brake shoe samples, 2D drawings or 3D files for custom mold development.
Q3: What is the lifespan of the brake shoe mold?
A: With standard operation and daily maintenance, the mold service life can reach 200,000 to 300,000 molding times.
Q4: Do you provide after-sales technical support?
A: Yes. We offer installation guidance, mold debugging and long-term after-sales support to ensure smooth production.
