Products Description

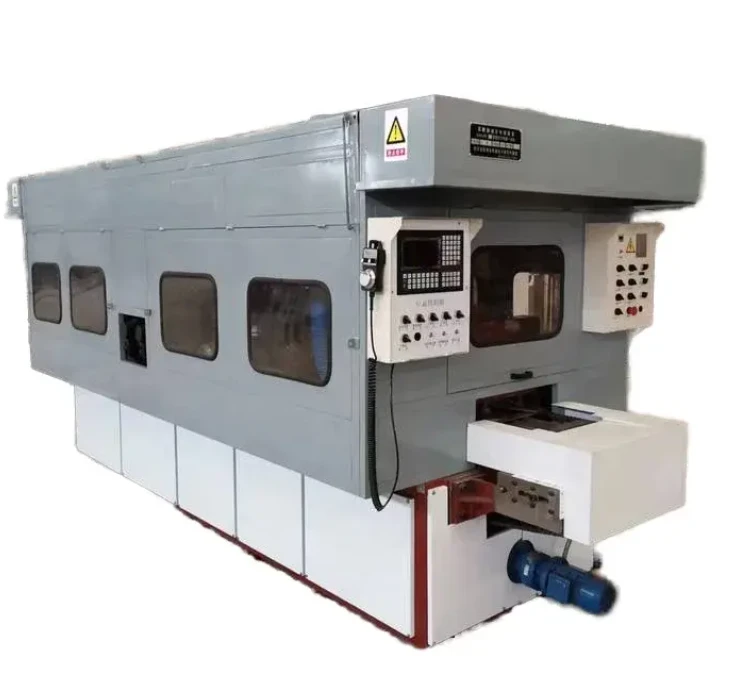

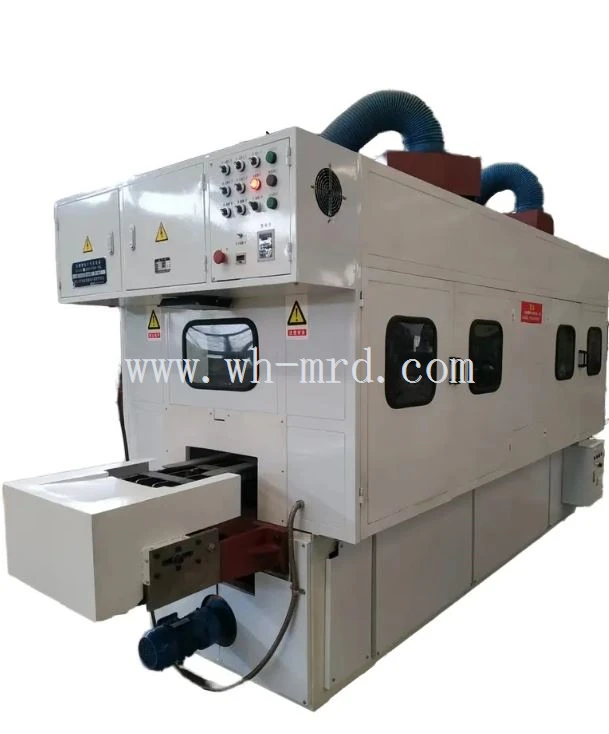

Brake Pad Chamfering Grinding Machine
This advanced Brake Pad Chamfering Grinding Machine is a fully automated production line designed to reduce manual labor, improve process efficiency, and deliver consistently high-quality brake pads. Ideal for manufacturers seeking automation and precision, this equipment combines cutting, grinding, and polishing in one seamless operation.
Products parameters
| Product Name | Brake Pad Chamfering Grinding Machine |
| Voltage | 380V |
| Machinery capacity | 3000 pcs/hour |
| key machines | servo motor |
| Advantage | Save Human Resources |
| After-sales Service | Video Technical Support |
| Key Selling Points | Efficient, easy to operate |
| Type | Automatic Machinery |
| Maximum processing width | 260mm |
| Minimum processing width | 50mm |
| Maximum processing thickness | 25mm |
| Minimum processing thickness | 12mm |
working principle
🛠️ Sliding Table Assembly
- Driven by a servo motor connected to a ball screw system
- A fixed nut links the screw to the sliding platform
- Linear guide rails and sliders ensure smooth, precise movement
- An electromagnetic suction cup securely holds the workpiece in place
🌀 Grinding Assembly
- Equipped with a vertical lift mechanism
- A high-speed grinding motor and wheel assembly are mounted on a sliding guide
- As the workpiece positions under the grinding wheel, the assembly descends to perform grinding operations with accuracy and control
Products Features
Multi-Function Machining Integration
Powered by a 28kW servo motor
Production capacity: 3,000 pieces per hour
Performs grooving (straight/slanted), rough/fine grinding, eight-character or arc chamfering, and steel back polishing in a single workflow.
Reduces process time, material handling, and in-between wait times
High-Precision CNC Control
Ensures excellent dimensional accuracy and surface quality
Equipped with video technical support for ease of operation
Automation & Compact Design
Advanced automation ensures consistent results with minimal operator input
Compact dimensions (5300×1500×1900mm) make it ideal for various factory setups
Application
🚗 Automotive Industry
Processes disc and drum brake pads for multiple car models with precision.
🏍️ Motorcycle Industry
Performs inner arc grinding and chamfering on shoe brake linings, boosting both efficiency and quality.
Company profile
Merido is an industry leader in the design, R&D, and manufacturing of production line equipment for brake pads, brake shoes, and steel backs. With decades of expertise, we are committed to delivering cutting-edge solutions that meet the highest standards of performance and reliability.
Safe Operation Guidelines
* Only trained personnel should operate the machine.
* Never open the safety door or place hands in the work area while in operation.
* Ensure the machine is installed on a stable, dry surface with proper grounding.
* Regularly inspect safety features such as emergency stops and safety doors.
