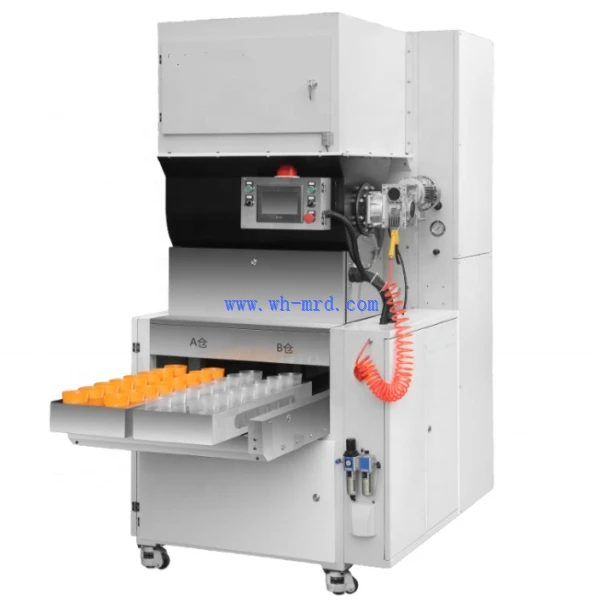

Products Description
Our Automatic Brake Pad Powder Weighing Machine is a high-precision, industrial-grade solution designed exclusively for the accurate batching and weighing of friction powder mixtures in brake pad manufacturing. Engineered for seamless integration into automated production lines, this machine eliminates human error, ensures consistent product quality, and dramatically boosts production efficiency while maintaining a dust-controlled working environment.
Key Features
Ultra-High Precision Weighing
Equipped with high-sensitivity digital load cells, delivering ±0.1g ~ ±1g accuracy for perfect raw material ratio control.
Dual-Component Weighing
Capable of dispensing two different powder mixtures (friction & underlayer) simultaneously, ideal for multi-layer brake pad designs.
Full Automation
Automatic feeding, weighing, dispensing, and discharging. Supports 24/7 continuous operation with minimal labor (1-2 workers per line).
Dust-Proof & Eco-Friendly
Fully enclosed structure with a built-in dust collection system, preventing powder leakage and ensuring a clean, safe workshop.
User-Friendly HMI
Intuitive 7" touch screen control panel for easy recipe management, parameter setting, and production data monitoring.
Flexible Compatibility
Designed to match various mold layouts and compatible with all standard brake pad production presses.
Robust & Durable
Heavy-duty steel frame with stainless steel (SUS304) material contact parts for long service life and easy cleaning.
Customizable Configurations
Available in single-station, multi-station (4/6/8/12/24 cups), and with optional automatic lifter for material feeding.
| Item | Specification |
|---|---|
| Weighing Range | 10g ~ 5000g (customizable) |
| Weighing Accuracy | ±0.1g ~ ±1g (model dependent) |
| Resolution | 0.1g |

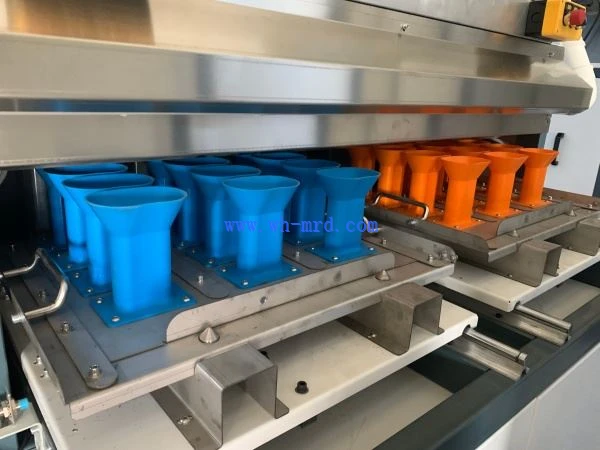

| Output Stations | 4, 6, 8, 12, 24 cups/trays |
| Efficiency | Up to 200+ batches/hour |
| Power Supply | AC 380V/220V, 50/60Hz |
| Total Power | 2KW ~ 5KW |
| Air Pressure | 0.4 ~ 0.6 MPa |
| Dimensions (LWH) | 2200 x 1400 x 1100 mm (standard) |
| Material | Carbon Steel Frame, SUS304 Contact Parts |
| Control System | PLC + Touch Screen HMI |
| Certifications | CE, ISO9001 |
Applications
Disc Brake Pads (Passenger Cars & Commercial Vehicles)
Drum Brake Shoes
Brake Linings
Friction Blocks
Why Choose US
✅ Consistent Quality: Ensures every brake pad has the exact same material composition.
✅ Cost Savings: Minimizes material waste and reduces labor costs.
✅ Increased Productivity: Much faster than manual weighing, scales with your production.
✅ Worker Safety: Protects employees from harmful dust inhalation.
✅ Easy Integration: Plug-and-play with existing brake pad manufacturing lines.
