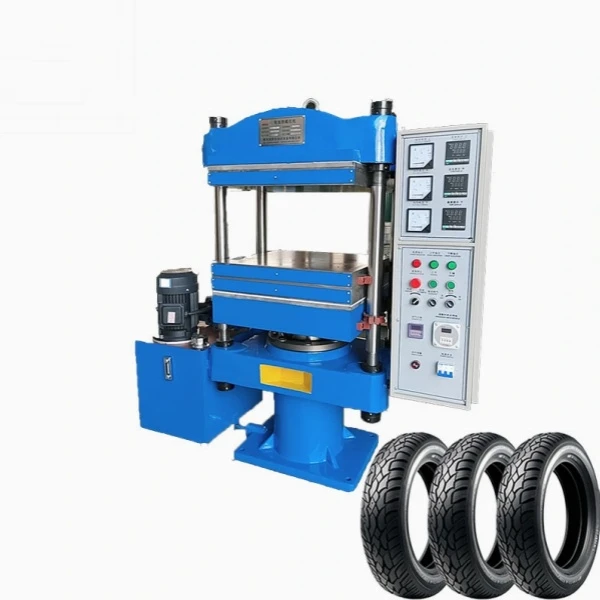

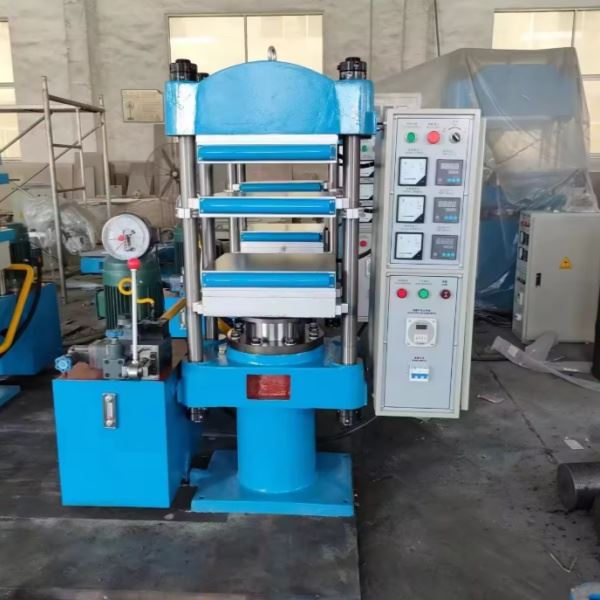

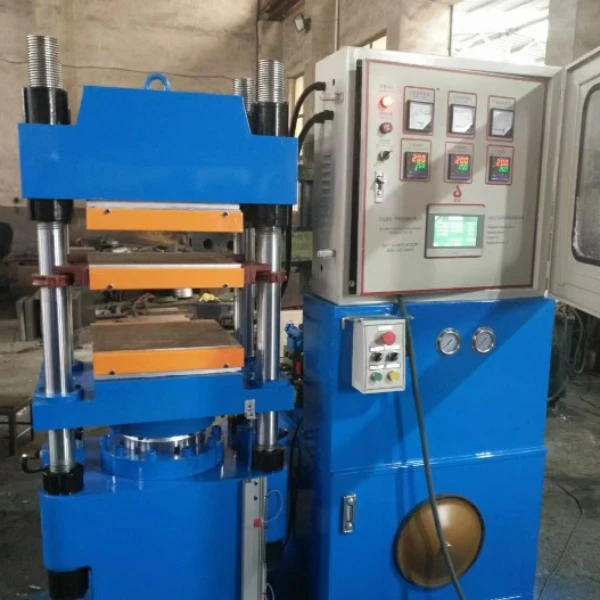

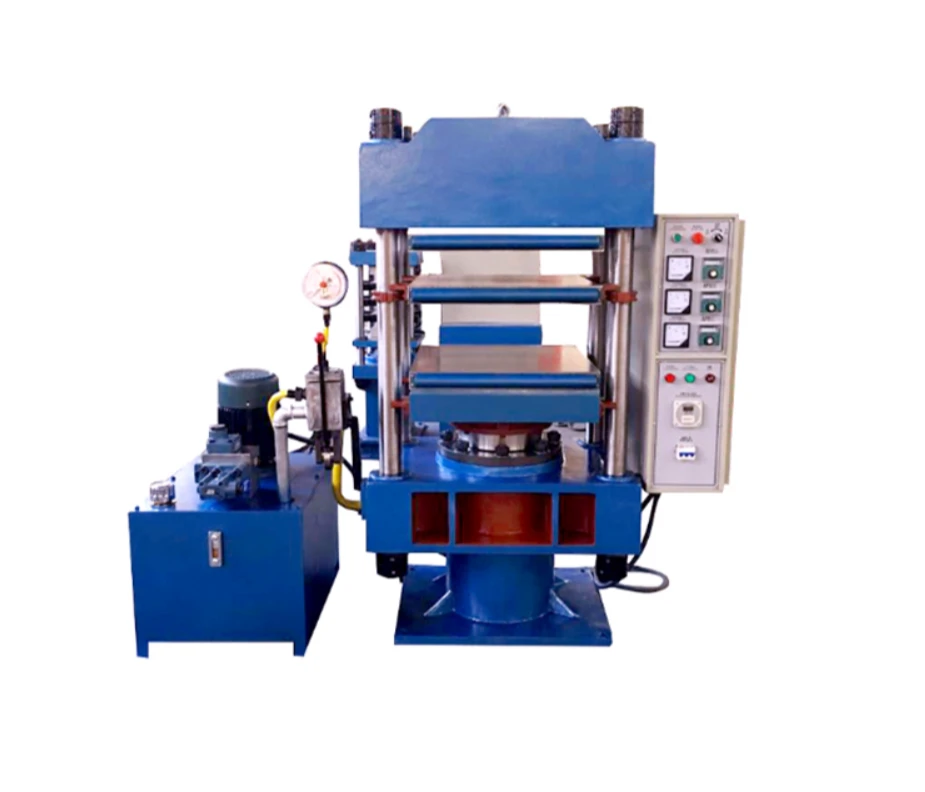

Machine Feature
1.The Rubber Plate Vulcanizing Machine is fame structure.
2.This Rubber Plate Vulcanizing Machine Rubber Press is with PLC control and of high production efficiency.
3. Piston heating method with steam heating or electric heating is optional.
4. Press with automatic warning device, is of high safety and convenient.
5. This rubber vulcanizing machine strengthens the raw rubber by chemically treating, and making the rubber harder and stronger.
technical Parameter
| Model | MRD240× 240×2 |
MRD350× 350×2 |
MRD400× 400×2 |
MRD500× 500×2 |
MRD600× 600×2/4 |
MRD700 ×700×2 |
MRD750 ×850×2/4 |
MRD900 ×900×2Q |
| Total Pressure (MN) | 0.15 | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
| Plate Distance (mm) | 125 | 125 | 125 | 125 | 125 | 125 | 200 | 300 |
| Working Layer NO. | 2 | 2 | 2 | 2 | 2-4 | 2 | 2-4 | 2 |
| Unit Area Pressure of Hot Plate(Mpa) |
2.60 | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
| Plunger Stroke (mm) | 250 | 250 | 250 | 250 | 250/400 | 250 | 400 | 400 |
| Heating Mode | Electricity | Electricity | Electricity/ Steam |
Electricity/ Steam |
Electricity/ Steam |
Electricity/ Steam |
Electricity/ Steam |
Steam |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size:(L×W×H)(mm) | 1200×350 ×1300 |
1400×480 ×1380 |
1600×500 ×1480 |
1750×600 ×1540 |
1880×720 ×1680 |
2000×850 ×1750 |
2250×1200 ×2200 |
1400×900 ×2400 (Mainframe) |
Our Service
1. Our engineers can design the Rubber Plate Vulcanizing Machine for customers and send the drawing to them for confirmation. We are always on the side of saving your cost.
2. In the production process, we will take pictures and send them to customers to track the progress.
3. Documents such as packing list, commercial invoice, bill of lading, etc. will be sent after delivery.
4. We can provide English based DWG for free, installation drawing, user manual, maintenance manual and parts drawing.
5. We provide overseas engineer service and help to train your workers to operate the vulcanizing machine.
