Products Description

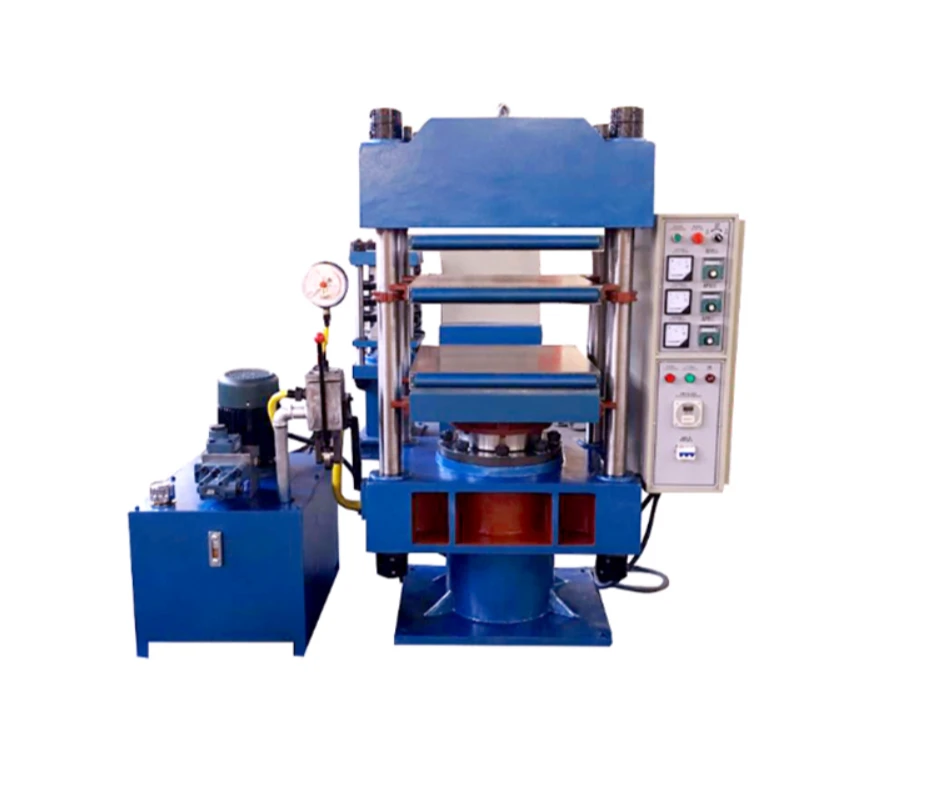

♥ ThisRubber Flatbed Plate Vulcanization Machine is frame structure, including main machine, hydraulic station, electric controlling cabinet
♥ Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening
device
Machine Parameter
|
Parameters/version
|
MRD350*350*2 |
MRD400*400*2 |
MRD500*500*2 |
MRD600*600*2/4 |
MRD750*850*2 |
MRD1000*1000*2 |
|
Mould closing force |
0.25MN |
0.5MN |
0.8MN |
1.0MN |
1.6MN |
2.5MN |
|
Hot plate spacing |
125mm |
125mm |
125mm |
125mm |
125mm |
200mm |
|
Hot plate layer |
2 |
2 |
2 |
2/4 |
2 |
2 |
|
Plunger stroke |
250mm |
250mm |
250mm |
250/500mm |
250mm |
400mm |
|
Heating way |
Electricity/stream |
Electricity/stream |
Electricity/stream |
Electricity/stream |
Electricity/Stream |
Electricity/stream |
|
Main motor power |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
3kw |
5.5kw |
|
The thermal power |
2.4kw/board |
3kw/board |
3kw |
7.5kw/board |
9kw/board |
10.8kw/board |
|
Size(L*W*H)mm |
1450*400*1350 |
1600*400*1440 |
1450*690*1818 |
1880*780*1660 |
2100*1010*1900 |
2400*960*2500 |
|
Weight(kg) |
1200 |
1500 |
1700 |
2500/3100 |
3560/4300 |
8300 |
Machine Feature

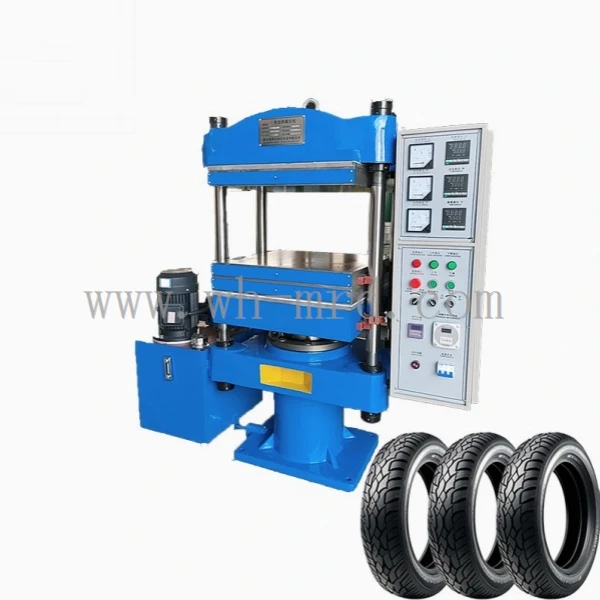

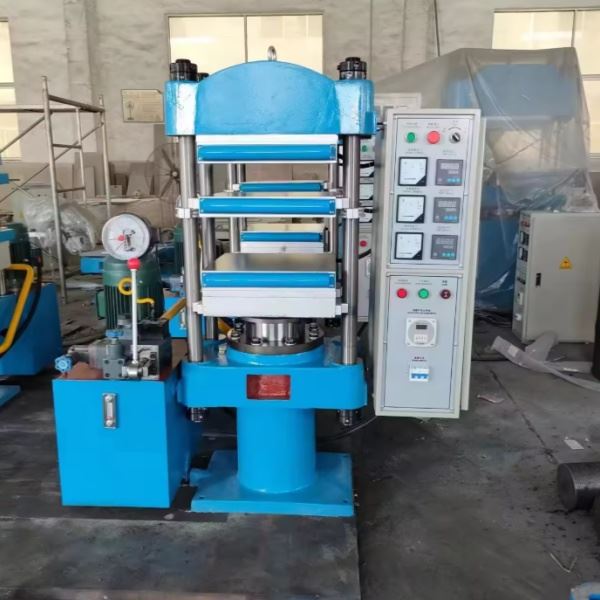

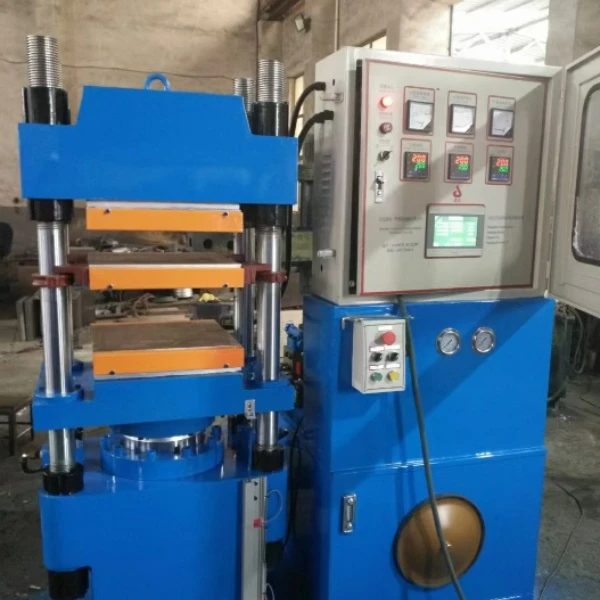

Rubber Flatbed Plate Vulcanization Machine:
1.Precise temperature control
2. Uniform heating
3. Strong pressure
4. High degree of automation
5. Various operation modes
6. Safe and reliable
7. Excellent quality
