Products Description

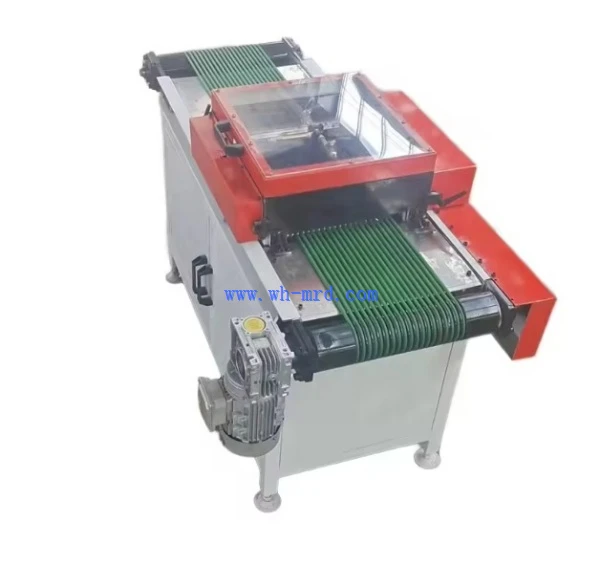

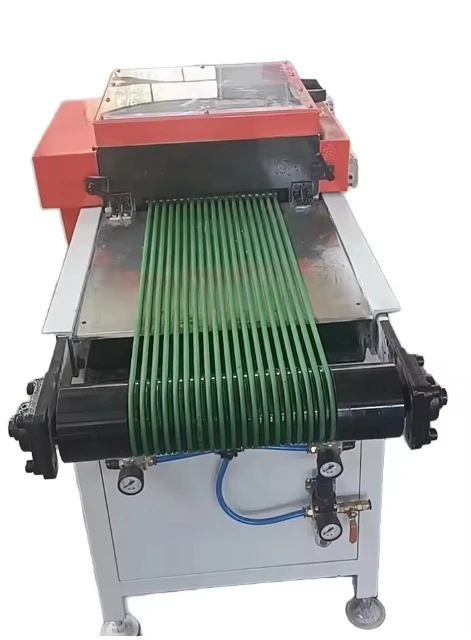

Our Gluing machine is an automated, high-efficiency glue applicator delivers smooth, consistent coating for industrial workflows. Ideal for brake pad lining bonding, wood panel lamination, footwear assembly, and electronic component sealing, it offers adjustable glue thickness, fast changeover, and smart controls-reducing material waste by 15% and boosting efficiency by 20% versus manual operations. Designed for continuous heavy use, it meets the strict quality standards of automotive, furniture, and electronics manufacturing.
Machine parameter
| No. | Project | Specifications |
| 1 | Production speed | 20,000-30,000 pieces per shift, 8 hours |
| 2 | Maximum coating width | 280mm |
| 3 | Steel back thickness range | 3-7mm/2-6mm |
| 4 | Number of fans | 4 |
| 5 | Air volume of cooling air | 10000m³/h |
| 6 | Power of the reduction motor for the coating machine | 400W |
| 7 | Power of the reduction motor for the drying line | 400W |
| 8 | Total power of the equipment | 1.6KW |
| 9 | Equipment weight | Approximately 0.7T |
| 10 | Dimensions of the machine head | Length 1.5 meters, width 0.6 meters, height 1.3 meters |
| 11 | Dimensions of the drying line | Length 5 meters, width 0.48 meters, height 1.2 meters |
| 12 | (Optional) Heating power of the drying tunnel | 9000W |
| 13 | Conveyor belt speed | 15 meters/minute |
| 16 | Product name | Model |
| 17 | Glue roller bearings | 6004-2RS |
| 18 | Pressure roller bearings | 6004-2RS |
| 19 | Support roller bearings | 6001-2RS |
| 20 | Power gear bearings | 6003-2RS |
| 21 | Polyurethane round belts | φ 10 |
| 22 | Support roller cylinders | SDA20*20 |
| 23 | Coating machine head motor | WFS-400-30S 400W |
| 24 | Drying line motor | WFS-400-30S 400W |
| 25 | Axial flow fans | SF-3-4 1450r/min Air:2500m³/h |
| 26 | Diaphragm pumps | Fluid conveying capacity: 30 cubic centimeters per stroke (cc/stroke). Maximum fluid conveying capacity: 5 kilograms per minute (kg/min).Maximum air pressure: 7 kilograms per square centimeter (kg/cm²). |
| 27 | Oil-water separators | AF2000 |
| 28 | Pressure regulating valves | AR2000 |
Machine Feature
1.Precision Glue Coating System
Servo-driven dispensing head delivers even glue coating (±0.02 mm variation); adjustable width/thickness fits diverse workpieces and cuts waste.
2.Multi-Adhesive Compatibility
Works with hot melt, water-based, PU and epoxy glue; 30–200℃ temperature control keeps hot melt glue at optimal fluidity.
3.Intelligent Operation & Control
PLC + touchscreen enables one-key parameter setting, production counting and fault diagnosis; stores 50 process sets for fast changeover.
4.Sturdy & Durable Construction
Anti-corrosion heavy steel frame ensures stable factory operation; wear-resistant Teflon/rubber conveyor belt lowers maintenance needs.
5.Safety & Ergonomic Design
Safety light curtain, emergency stop and protective covers meet CE standards; adjustable conveyor height reduces operator fatigue.
FAQ
1.Q: What adhesive types are compatible with this gluing machine?
A: This equipment works with a broad selection of industrial adhesives, such as hot melt glue, water-based glue, PU glue, epoxy resin, and pressure-sensitive adhesive. A dedicated temperature control unit (adjustable from 30–200℃) is fitted for hot melt glue to maintain ideal viscosity.
2.Q: Is the machine customizable to suit our specific workpiece dimensions?
A: Yes. We provide customization options for glue application width (50–500 mm range), conveyor belt length and height, and glue dispenser head design-tailored to meet your production demands for workpieces like brake pad linings, wood panels, or electronic components.
3.Q: What level of coating precision can this gluing machine achieve?
A: The servo-driven glue dispenser head ensures superior coating precision, with thickness variation limited to just ±0.02 mm. This guarantees uniform adhesive coverage across the workpiece surface, avoiding uneven bonding and reducing material waste.
