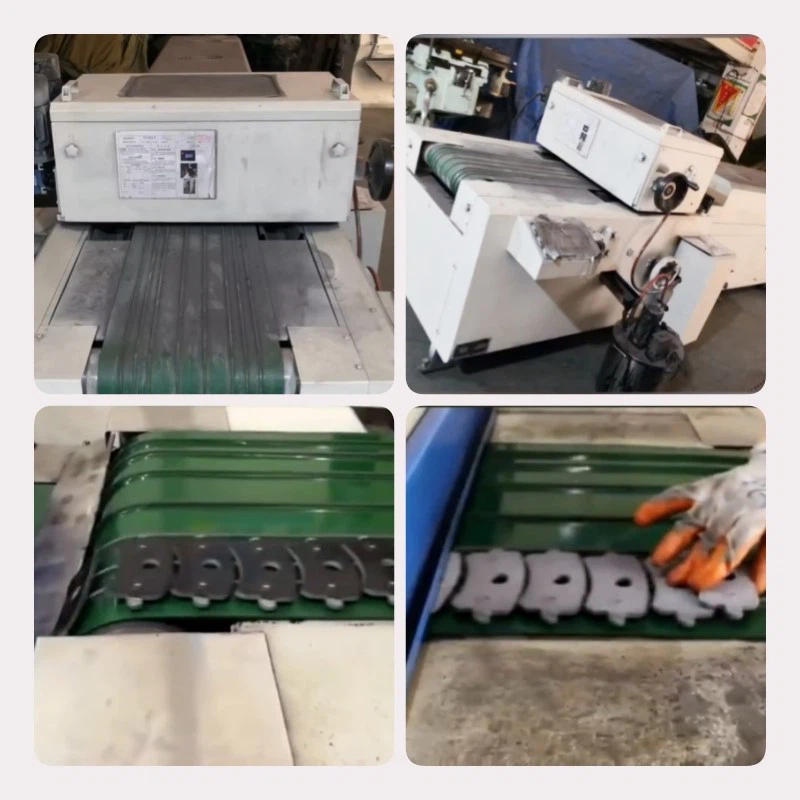

Brake Pads Coating Gluing Machine

1. **High-precision gluing module**: Delivers uniform adhesive application with zero overflow or missing spots, boosting the bonding strength of brake pads significantly.
2. **Adjustable gluing configurations**: Supports flexible customization of glue dosage, coating speed and width, compatible with diverse brake pad dimensions for cars, trucks and trains.
3. **Smart control system**: Integrated PLC and touchscreen operation enables hassle-free parameter setting and real-time tracking of the gluing workflow.

Send Inquiry

Description

Our brake pad gluing machine serves as a critical component of brake pad production lines, specialized in uniform adhesive application across the interface of brake linings and steel backings. Widely adopted in manufacturing automotive, heavy-duty truck and railway brake pads, this equipment meets the rigorous quality benchmarks demanded by the friction material industry.

As a core piece of equipment in brake pad manufacturing, our gluing machine is engineered to evenly dispense adhesive between the brake lining and steel back. Ideal for producing automotive, truck and train brake pads, it fully complies with the stringent quality standards of the friction material sector.

Technical Specification

Parameter	Details
Applicable Brake Pad Size	Customizable (50-300mm length)
Gluing Speed	10-50 pcs/min (adjustable)
Glue Thickness	0.1-0.5mm (precise control)
Power Supply	220V/380V 50Hz (customizable)
Control System	PLC + Touch Screen
Dimension	L×W×H: 1500×800×1200mm (customizable)
Weight	500-800kg
