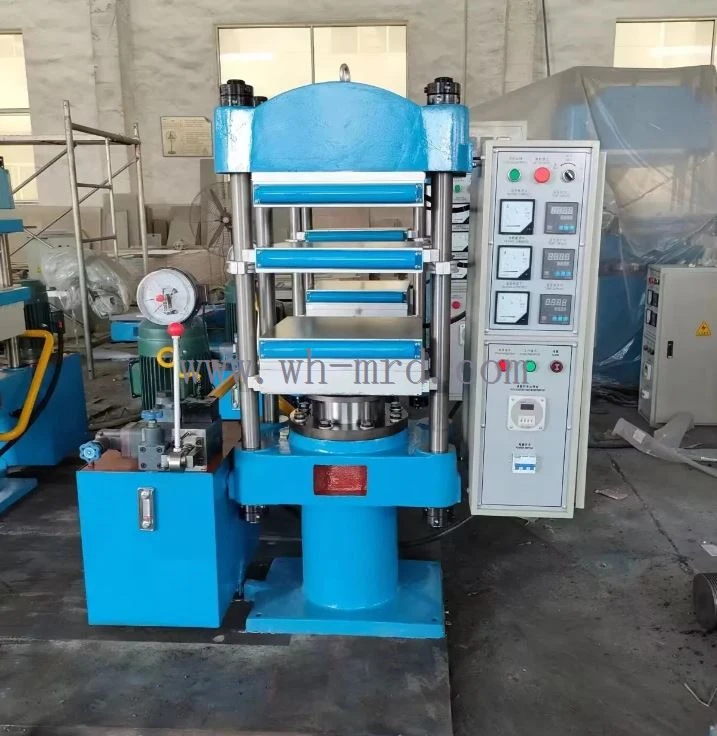

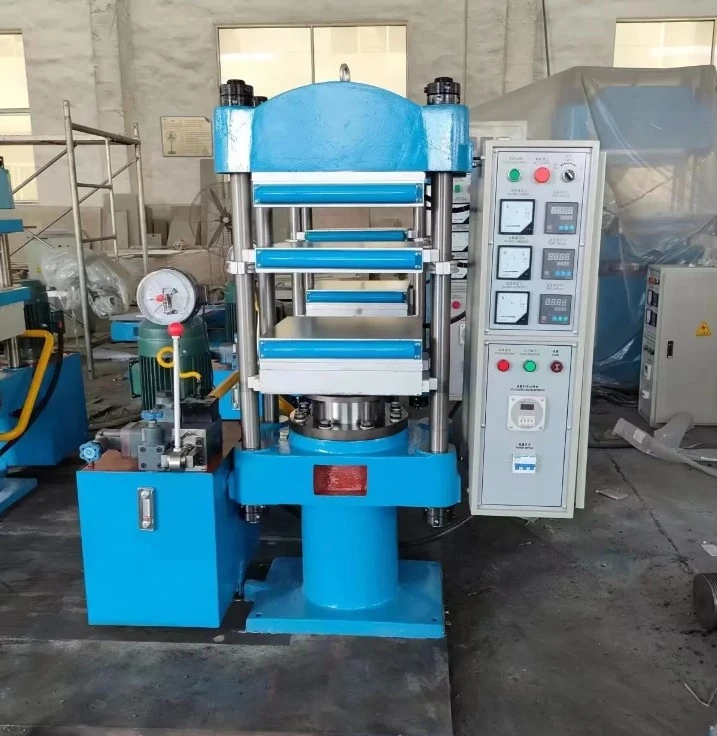

Flatbed Vulcanizing Hot Press, vulcanizing press machine, flat vulcanizing machine, vulcanizing press, tire Vulcanizing Machine
The Flatbed Vulcanizing Hot Press is a versatile molding machine widely used for processing polymer raw materials in the rubber, plastic, and fiber composite industries. It is essential for shaping and curing materials under high temperature and pressure, ensuring precision, durability, and high-quality surface finishes.
Product features
Specialized Rubber Processing
Specifically designed for the rubber industry. Heating options include electric heating, steam heating, or oil heating based on user needs.
Energy-Efficient Hydraulic System
The machine utilizes a high-combination oil circuit pump system to reduce power consumption and improve efficiency.
Advanced PLC Control
Integrated PLC (Programmable Logic Controller) technology enables full automation of the molding cycle:
Mold operation
Temperature control
Deflation cycles
Real-time system monitoring
Customizable Machine Types
We offer various machine configurations based on your production needs, including:
Four-column type
Frame type
Movable table type
Customized plate vulcanizing presses tailored to specific product processes
parameter
|
Type |
XLB-D/Q400×400×2E |
XLB-D/Q600×600×2D |
XLB-D/Q750×850×2 |
|
Nominal clamp mould force |
0.5 |
1.0/1.6 |
1.6 |
|
Specification of the hot plate |
400×400 |
600×600 |
750×850 |
|
Number of working layers |
2 |
2 |
2 |
|
Piston diameter |
Ф200 |
Ф300/ф320 |
Ф360 |
|
Max stroke of the piston |
250 |
350/450 |
500 |
|
The Distance between the hot plate |
125 |
150 |
150 |
|
Unit area pressure of the hot plate |
3.1 |
3.1 |
3.1 |
|
Motor power |
1.5 |
2.78/4.44 |
2.5 |
|
weight |
1300 |
2600 |
5000 |
|
Overall size |
1500×750×1500 |
2000×700×1700 |
2550×960×2100 |
|
Close the mould speed |
≥12 |
≥12 |
≥12 |
|
Open mould speed |
≥12 |
≥12 |
≥12 |

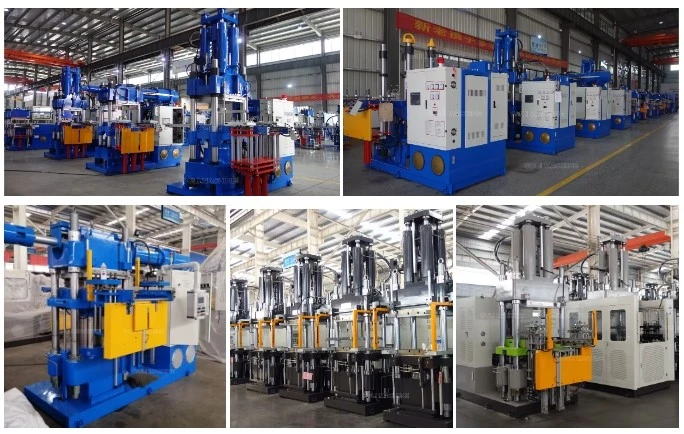

Our Workshop
Application
Rubber Industry
Tires
Rubber seals
Shoe soles
Rubber tubes
Plastic Industry
Plates, pipes, and containers
Toy parts
Electronic device housings
Other precision plastic products
Fiber Composites Industry
Aerospace components
Automotive structural parts
High-performance sporting goods
