Products Description

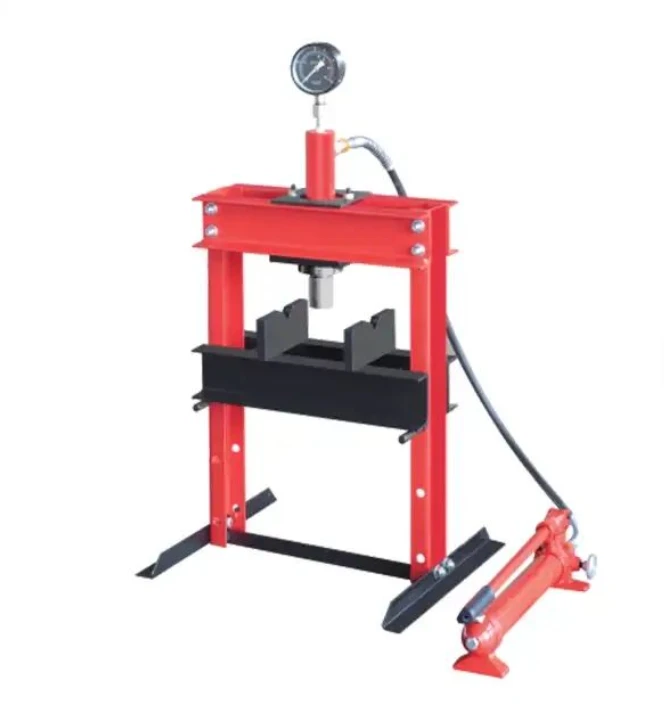

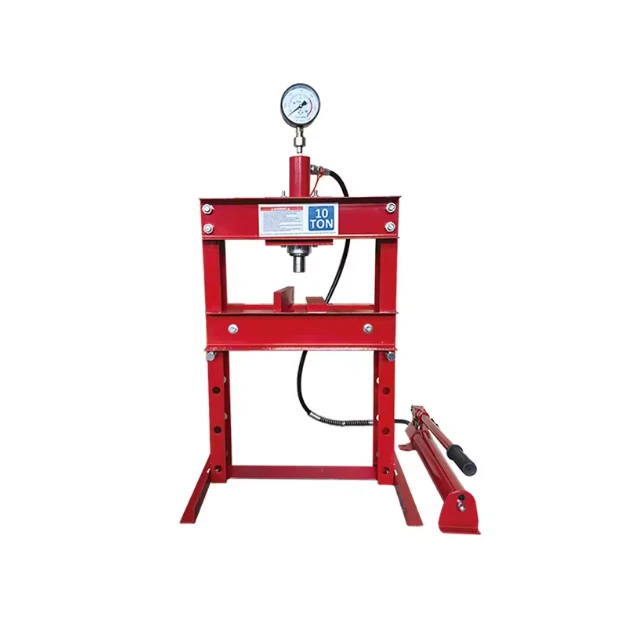

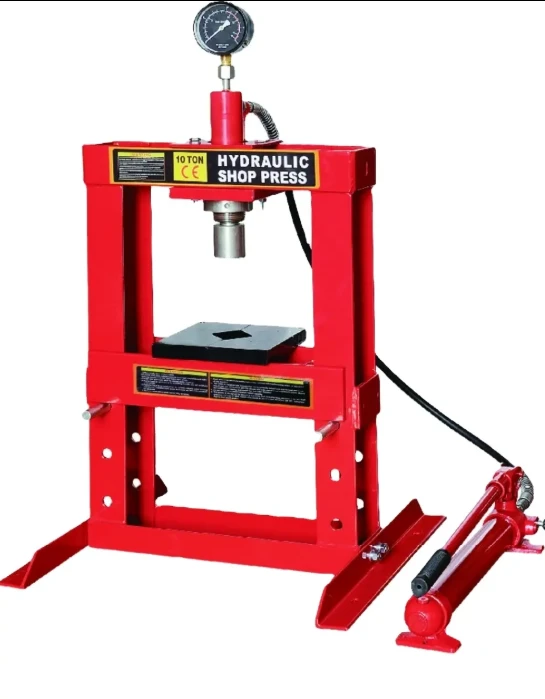

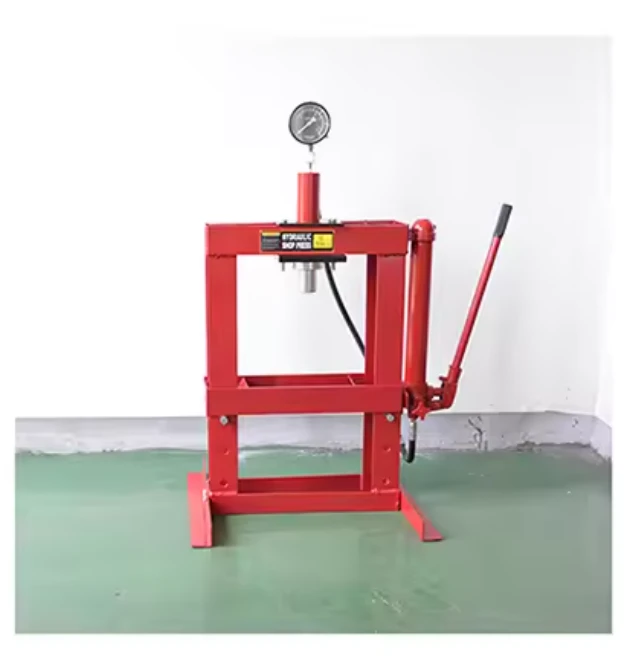

Ideal heavy-duty workshop equipment for pressing, bending, straightening as well as bearing fitting and dismantling. Featuring solid H-type steel frame, this 10-ton manual hydraulic press provides steady and controllable pressure, suitable for garages, repair workshops and industrial sites. Fitted with accurate pressure meter and height-adjustable workbench, it guarantees precise and secure operation for various pressing jobs.
Machine Advantages
✅ 10T Heavy-Duty Capacity：Rated 10-ton pressure for heavy-duty pressing, bending, straightening, and assembly.
✅ Sturdy H-Frame Construction：Thick steel plate frame (8mm+) for maximum stability, minimal deflection, and long service life.
✅ Manual Hydraulic Operation：Hand pump with double-speed design for fast approach & slow pressing, saving effort.
✅ Precision Pressure Gauge：Glycerine-filled gauge for real-time pressure monitoring, ensuring precise control.
✅ Adjustable Worktable：Multi-position height adjustment to fit various workpiece sizes and tasks.
✅ Wide Application：Ideal for bearing removal/installation, gear pressing, shaft straightening, and garage repair.
✅ Safety & Durability：Overload protection, chrome-plated piston (auto-return), and anti-rust coating.
✅ Compact & Portable：Space-saving H-frame design, easy to move and install in small workshops.
| Parameter | Value |
|---|---|
| Model | HHP-10 (10T Manual H-Frame Press) |
| Rated Capacity | 10 Ton (100 kN) |
| Frame Type | H-Frame (Heavy-Duty Steel) |
| Pump Type | Manual Hydraulic Hand Pump (Double-Speed) |
| Cylinder Stroke | 250 mm (9.8 in) |
| Working Range | 0–340 mm (13.4 in) |
| Table Adjustment | Multi-Position (Height Adjustable) |
| Pressure Gauge | 0–10T, Glycerine-Filled |
| Frame Material | Mild Steel (8mm Plate) |
| Dimensions (L×W×H) | 800×600×1500 mm |
| Weight | 40 kg |
| Color | Blue/Red/Customized |
| Certification | CE |
| Warranty | 1 Year |
Application
Automotive repair: Bearing, gear, and bushing removal/installation
Metalworking: Straightening, bending, and pressing of metal parts
Workshop maintenance: Assembly and disassembly of press-fit components
Industrial use: Small-scale production and maintenance tasks
FAQ
Q1: What materials can this press handle?
A1: It works on steel, aluminum, iron, and other metals for pressing, bending, and straightening.
Q2: Is the pressure gauge accurate?
A2: Yes, it's a glycerine-filled gauge for vibration resistance and precise pressure reading.
Q3: Can I adjust the worktable height?
A3: Absolutely-multiple height positions fit different workpiece sizes.
Q4: What's the warranty?
A4: 1-year warranty on manufacturing defects, with lifetime technical support.
