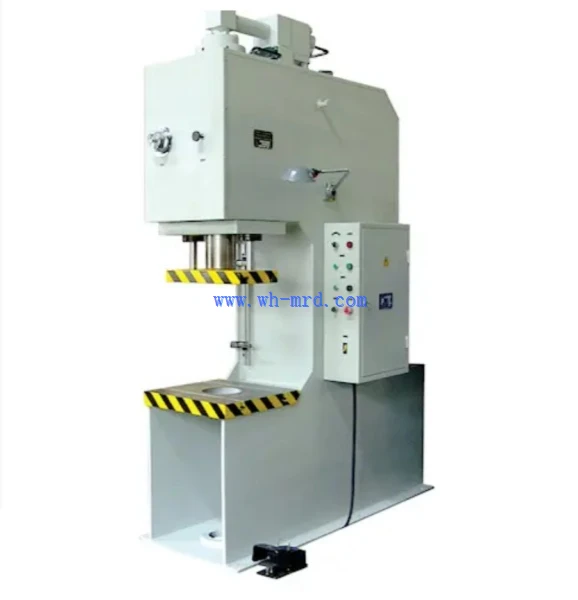

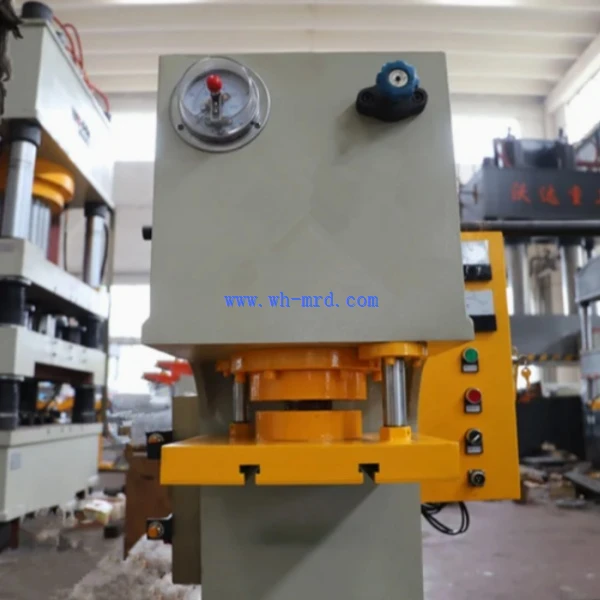

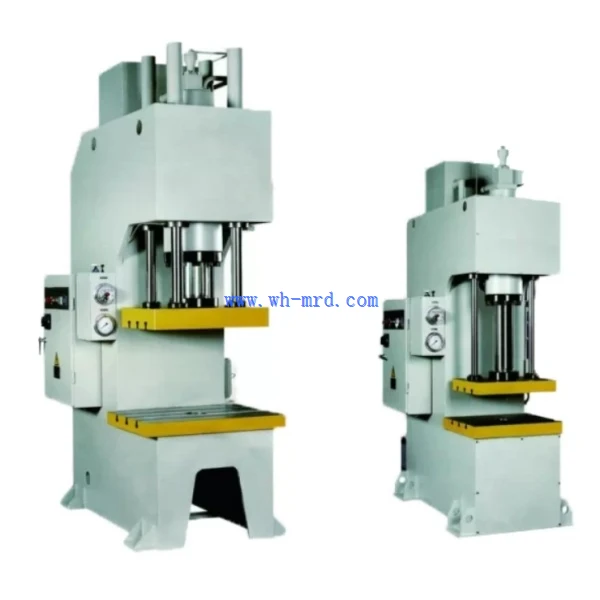

Single Arm Press
Our CNC C Frame hydraulic presses excel at a comprehensive range of machine component processes, including assembly, disassembly, straightening, calendering, pressing, stretching, bending and punching. Each press features a robust, fully welded steel plate frame paired with state-of-the-art design principles that set benchmarks in the industry. Built for durability and pinpoint operational precision, our equipment cuts down on operational time and labor intensity while maintaining reliable performance over years of continuous use.
Machine TDS
|
Specification |
JC41-20 |
JC41-40 |
JC41-63 |
JC41-100 |
|
Nominal force |
200 |
400 |
630 |
1000 |
|
Effective stroke |
260 |
260 |
280 |
320 |
|
Max. opening height |
600 |
600 |
700 |
700 |
|
Throat depth |
200 |
220 |
240 |
280 |
|
The slide block descending speed |
16 |
19 |
13 |
10 |
|
The slide bolck return speed |
19 |
25 |
17 |
13 |
|
Worktable effective area(Left and right) |
500 |
500 |
600 |
700 |
|
Worktable effective area(Front and back) |
400 |
400 |
450 |
500 |
|
Blanking hole diameter |
80 |
100 |
120 |
200 |
|
Machine size |
980*630*1670 |
1080*650*1080 |
1180*700*2020 |
1380*800*2120 |
|
Motor power |
3 |
3 |
5.5 |
5.5 |
|
Net weight(kg) |
1300 |
1500 |
1700 |
2200 |

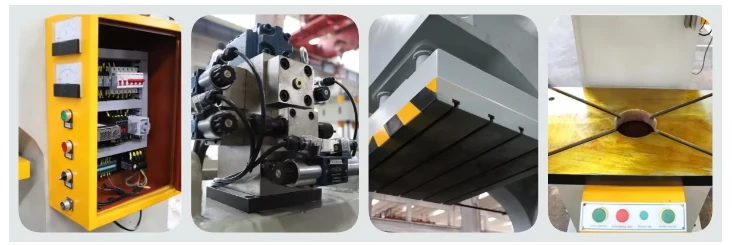

Machine Detaile&Application
Core features

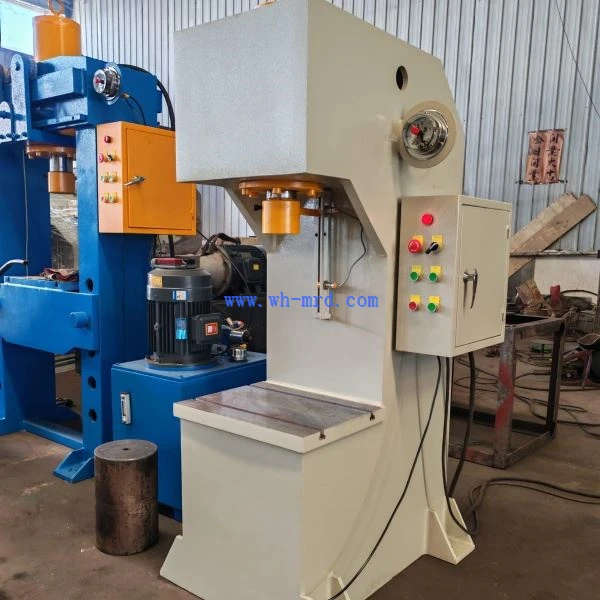

1.Robust C-Frame Construction
Fabricated from welded steel plates with stress-relief processing, this frame delivers exceptional structural rigidity, minimal operational deflection, and an extended service lifespan-all essential for maintaining uniform precision in brake pad forming workflows.
2.High-Performance Hydraulic System
Equipped with premium hydraulic parts (including valves, pumps, and cylinders), the system ensures smooth, responsive, and energy-saving operation, while built-in overload protection effectively safeguards the equipment from accidental damage.
3.Accurate Intelligent Control System
The PLC + touchscreen control interface allows for flexible customization of stroke speed, pressure parameters, and dwell duration, with both manual and automatic modes available to accommodate diverse production requirements.
4.Humanized & Safety-Centric Design

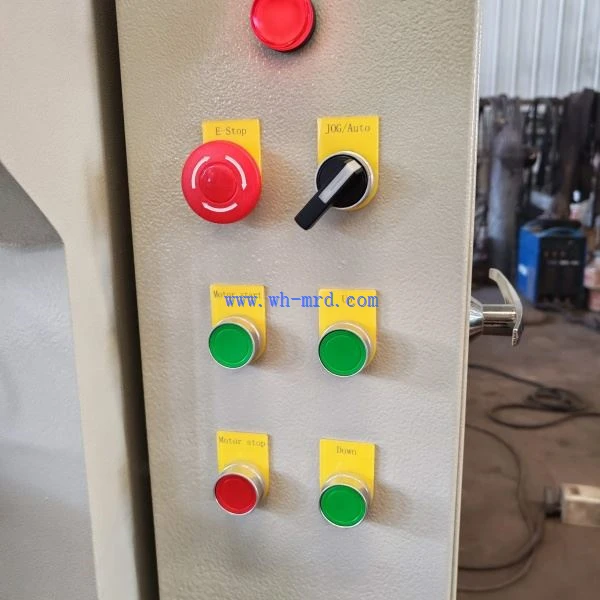

Features such as adjustable worktable height, safety light curtains, emergency stop switches, and noise-dampening enclosures ensure full compliance with CE safety regulations, prioritizing operator safety and comfort.
5.Convenient Maintenance Design
Adopting a modular structure with easy-to-access components and a centralized lubrication system, the press minimizes component wear and simplifies routine upkeep procedures.
FAQ
1.Q: What is the warranty period for this press?
A: 12 months for the whole machine, with lifetime technical support.
2.Q: Can you customize the press for our specific brake pad forming process?
A: Yes, we offer customizations for pressure, stroke, table size, and control functions.
3.Q: Do you provide installation and training services?
A: Yes, our engineers can be dispatched for on-site installation, commissioning, and operator training (costs negotiable).
For detailed quotations, technical drawings, or customized solutions, please feel free to contact us.
