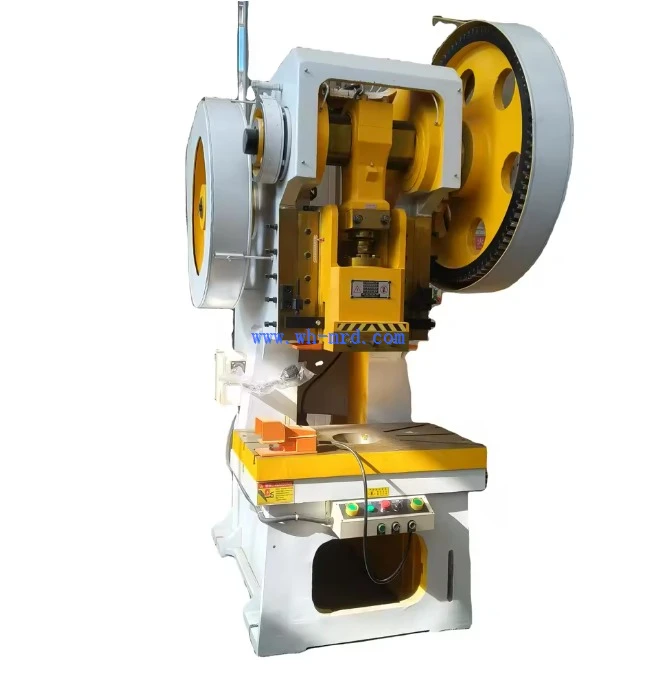

CNC Punch Press with Automatic Control System for Steel Plate Hole Punching & Metal Fabrication
Products Description
Our punch press is a professional industrial stamping device tailored to address the varied requirements of the metal processing sector. It combines cutting-edge technology, a sturdy structure, and precise control mechanisms, serving as a crucial tool for punching, forming, bending, deep drawing, and shaping a wide range of metal sheets (including steel, aluminum, copper, and more). Whether your operations involve small-batch customization or large-scale mass production, our punch press ensures consistent performance, boosts production efficiency, and lowers operational expenses.
|
Description |
J23-12T |
J23-16T |
J23-25T |
J23-40T |
J23-63T |
J23-80T |
|
|
Nominal force(KN) |
120 |
160 |
250 |
400 |
630 |
800 |
|
|
Slide stroke(MM) |
50 |
60 |
70 |
100 |
100 |
120 |
|
|
SPM(BPM) |
120 |
130 |
70 |
50 |
50 |
45 |
|
|
Max die height(MM) |
170 |
180 |
220 |
220 |
240 |
280 |
|
|
Die height adjustment(MM) |
30 |
40 |
40 |
50 |
60 |
60 |
|
|
Between slide center and frame(MM) |
130 |
180 |
180 |
220 |
240 |
260 |
|
|
Bolster(MM) |
F·B |
220 |
310 |
320 |
400 |
440 |
480 |
|
L·R |
350 |
455 |
520 |
640 |
680 |
750 |
|
|
Shank hole(MM) |
Dia |
30 |
35 |
40 |
50 |
50 |
60 |
|
Depth |
50 |
50 |
60 |
60 |
60 |
70 |
|
|
Between columns(MM) |
150 |
200 |
230 |
280 |
350 |
330 |
|
|
Bolster thickness(MM) |
35 |
45 |
45 |
70 |
70 |
80 |
|
|
Bolster opening(MM) |
Φ100 |
Φ130 |
Φ130 |
Φ150 |
Φ170 |
Φ160 |
|
|
Main motor power |
Power |
1.5 |
1.5 |
2.2 |
3 |
4 |
5.5 |
|
RPM |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
|
Outline dimension |
F·B |
950 |
1000 |
1200 |
1500 |
1600 |
1850 |
|
L·R |
750 |
800 |
900 |
1000 |
1150 |
1320 |
|
|
H |
1600 |
1800 |
2000 |
2400 |
2420 |
2500 |
|
We have more than 10 years of experience in producing punch presses, with advanced production equipment, professional R&D team, and perfect production management system.
We can customize the punch press according to customer needs, including parameters, functions, and appearance, to meet the specific requirements of different industries and production lines.
We provide 24/7 technical support, overseas installation, training, and maintenance services.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer of punch presses with our own factory, R&D team, and quality control team. We can provide direct factory prices and customized services.
Q2: Can you customize the punch press according to our requirements?
A2: Yes, we provide comprehensive customization services. You can tell us your requirements for punch force, working table size, stroke, control system, voltage, and other parameters, and we will design and produce the machine that meets your needs.
Q3: What is the delivery time of your punch press?
A3: For standard models, the delivery time is 7-15 days; for customized models, the delivery time is 15-30 days, depending on the complexity of the customization and the quantity of the order.
Q4: Do you provide after-sales service and technical support?
A4: Yes, we provide global after-sales service, including 24/7 technical support, overseas installation, operator training, and maintenance services. We also provide spare parts for long-term supply.
Q5: What payment terms do you accept?
A5: We accept various payment terms, such as T/T (30% deposit, 70% before delivery), L/C at sight, Western Union, and PayPal. We can negotiate the payment terms according to the order quantity and cooperation mode.
Q6: Is the punch press easy to operate? Do you provide training?
A6: The punch press is equipped with an intuitive control panel, which is easy to operate. We provide detailed operation manuals and video tutorials. For large orders or customized models, we can send professional technicians to your factory for on-site installation and training.
Q7: What is the warranty period of your punch press?
A7: The warranty period is 12 months from the date of delivery. During the warranty period, we will provide free maintenance and replacement of damaged parts (excluding man-made damage and wearing parts).
